Code 27: Sub-O2 Sensor Signal (CALIF)

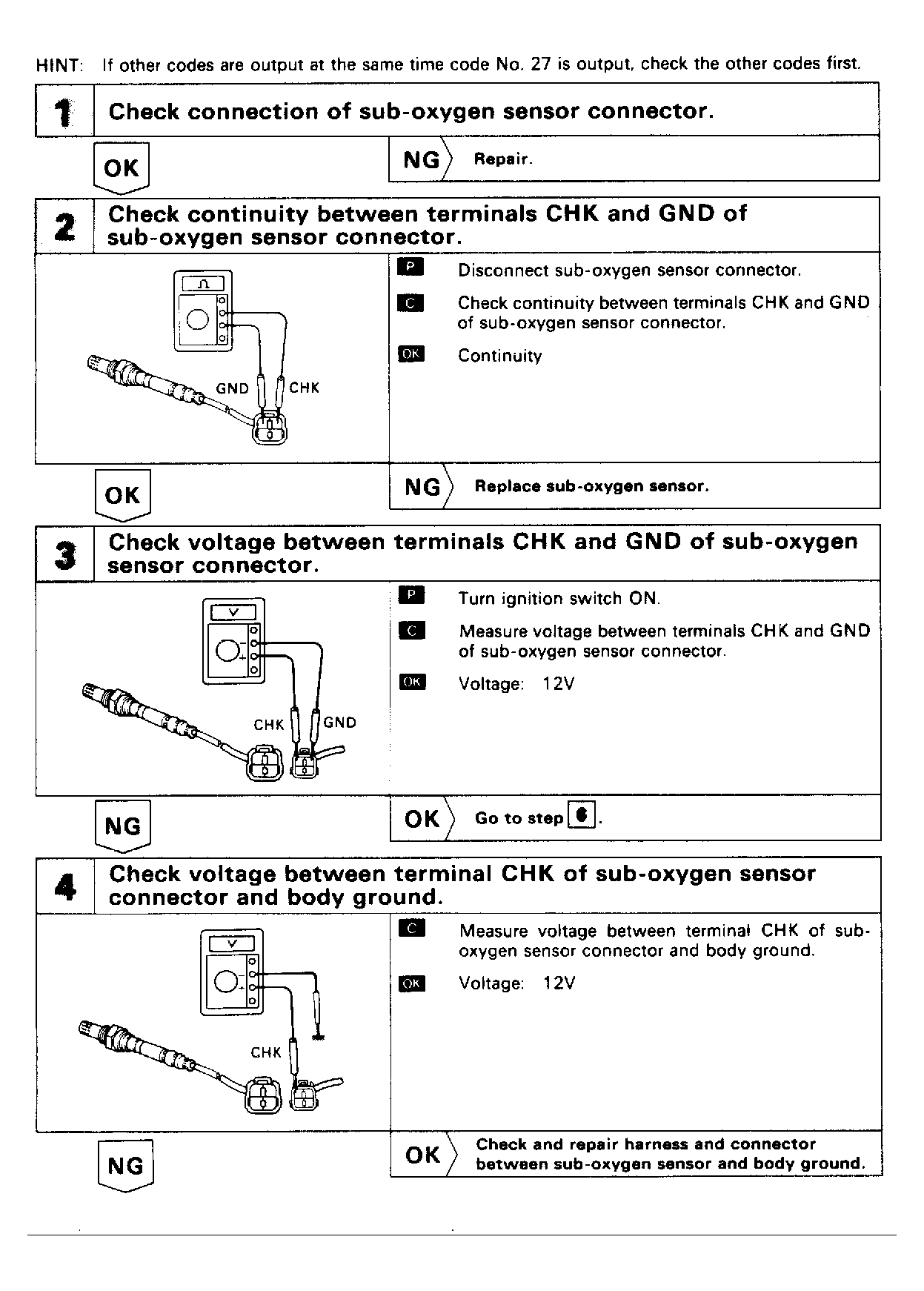

Fig 1: Code 27: Sub-O2 Sensor Signal (Calif, 1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

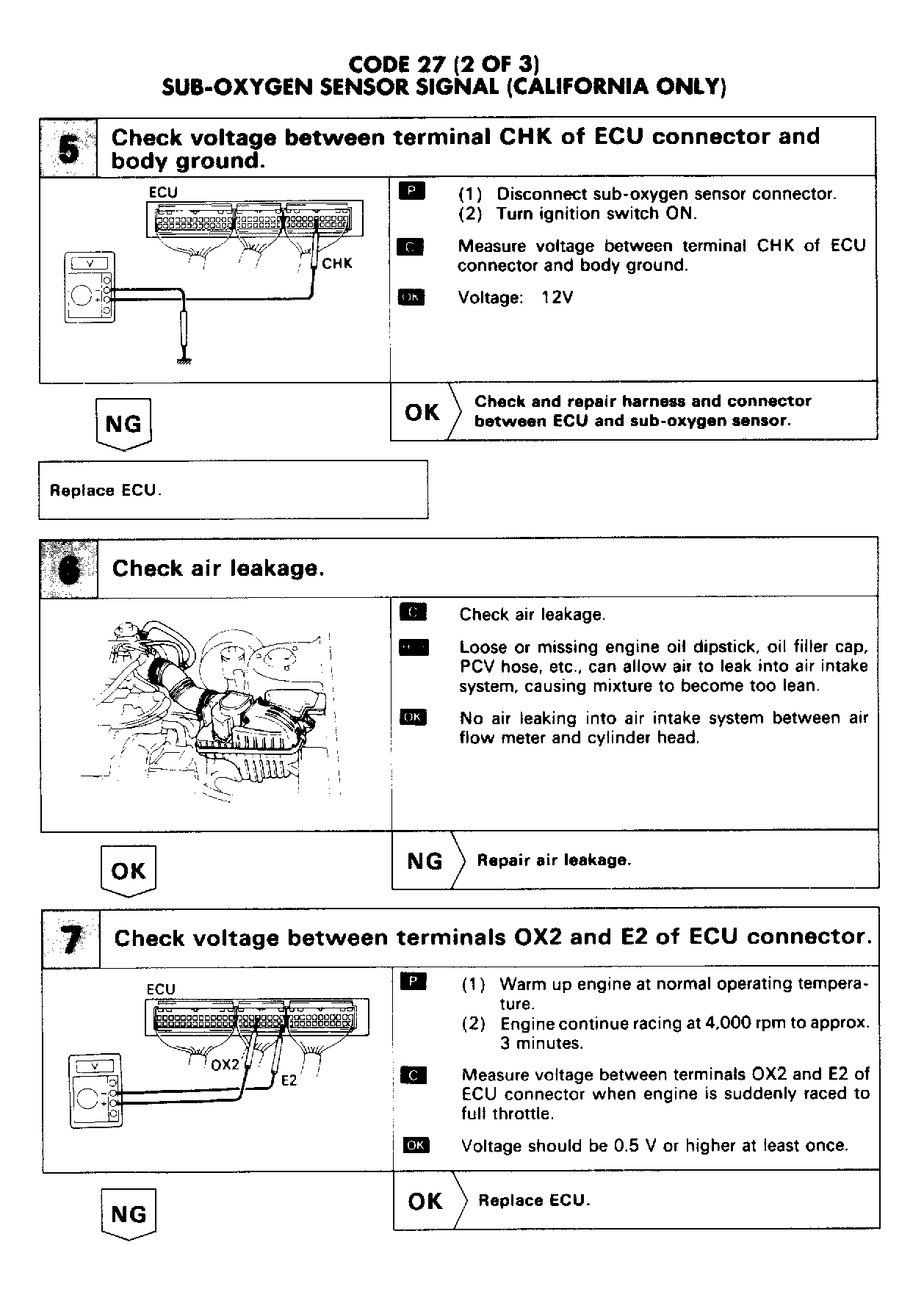

Fig 2: Code 27: Sub-O2 Sensor Signal (Calif, 2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 27: Sub-O2 Sensor Signal (Calif, 3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
