Code 31 & 32: Airflow Meter Signal

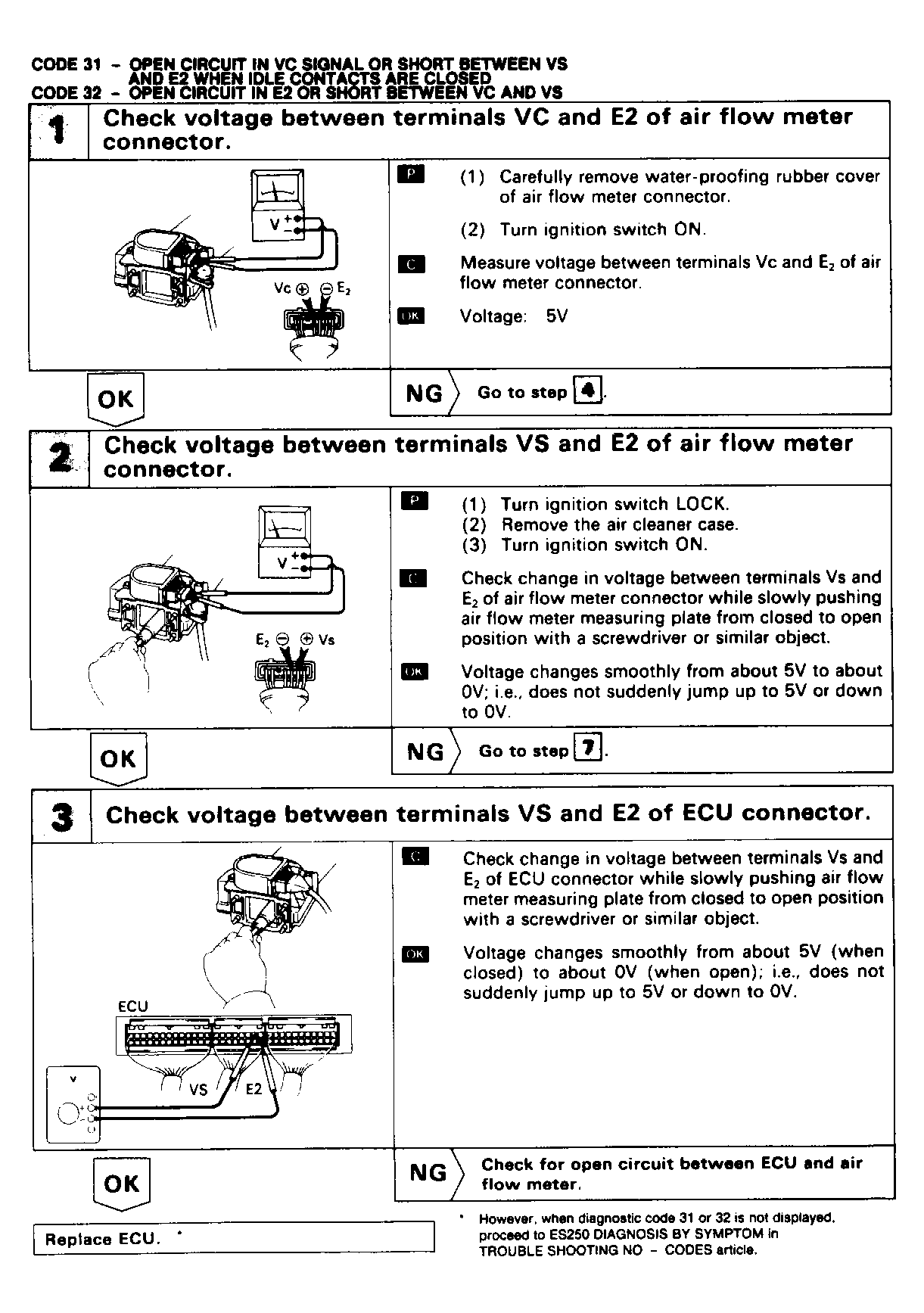

Fig 1: Codes 31 & 32: Airflow Meter Signal (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

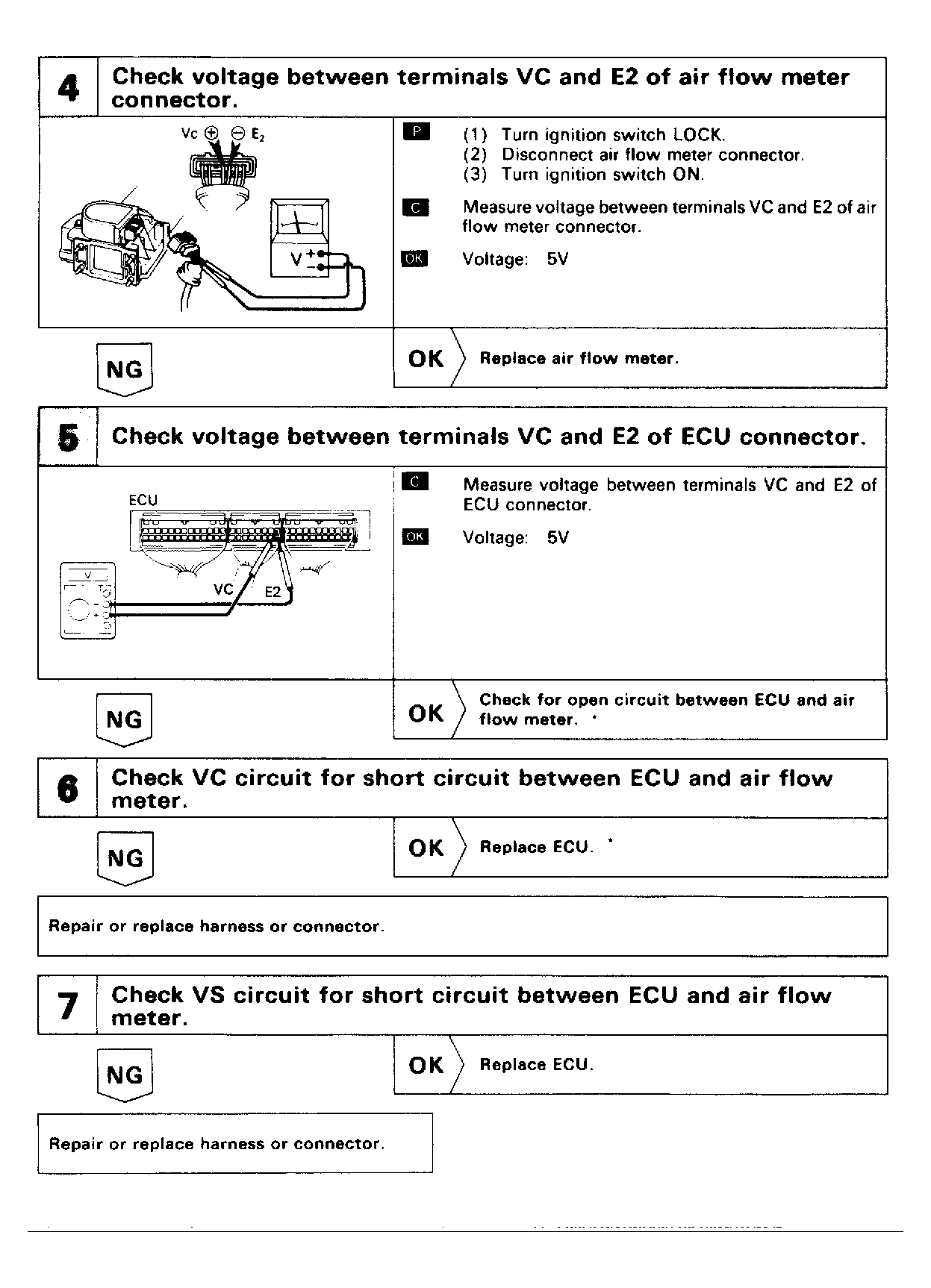

Fig 2: Codes 31 & 32: Airflow Meter Signal (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
