Code 41: Throttle Position Sensor (TPS) Signal

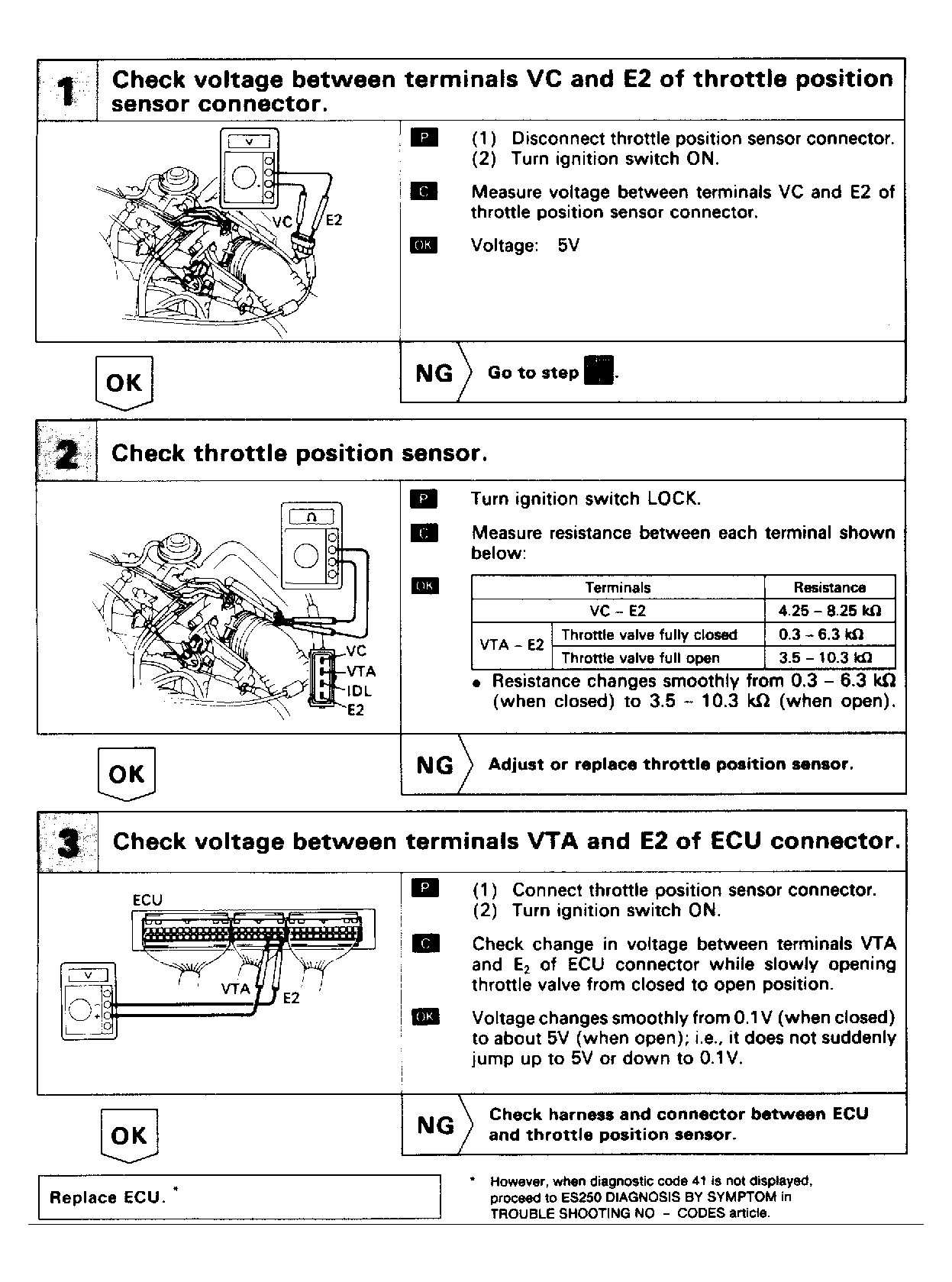

Fig 1: Code 41: TPS Signal (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

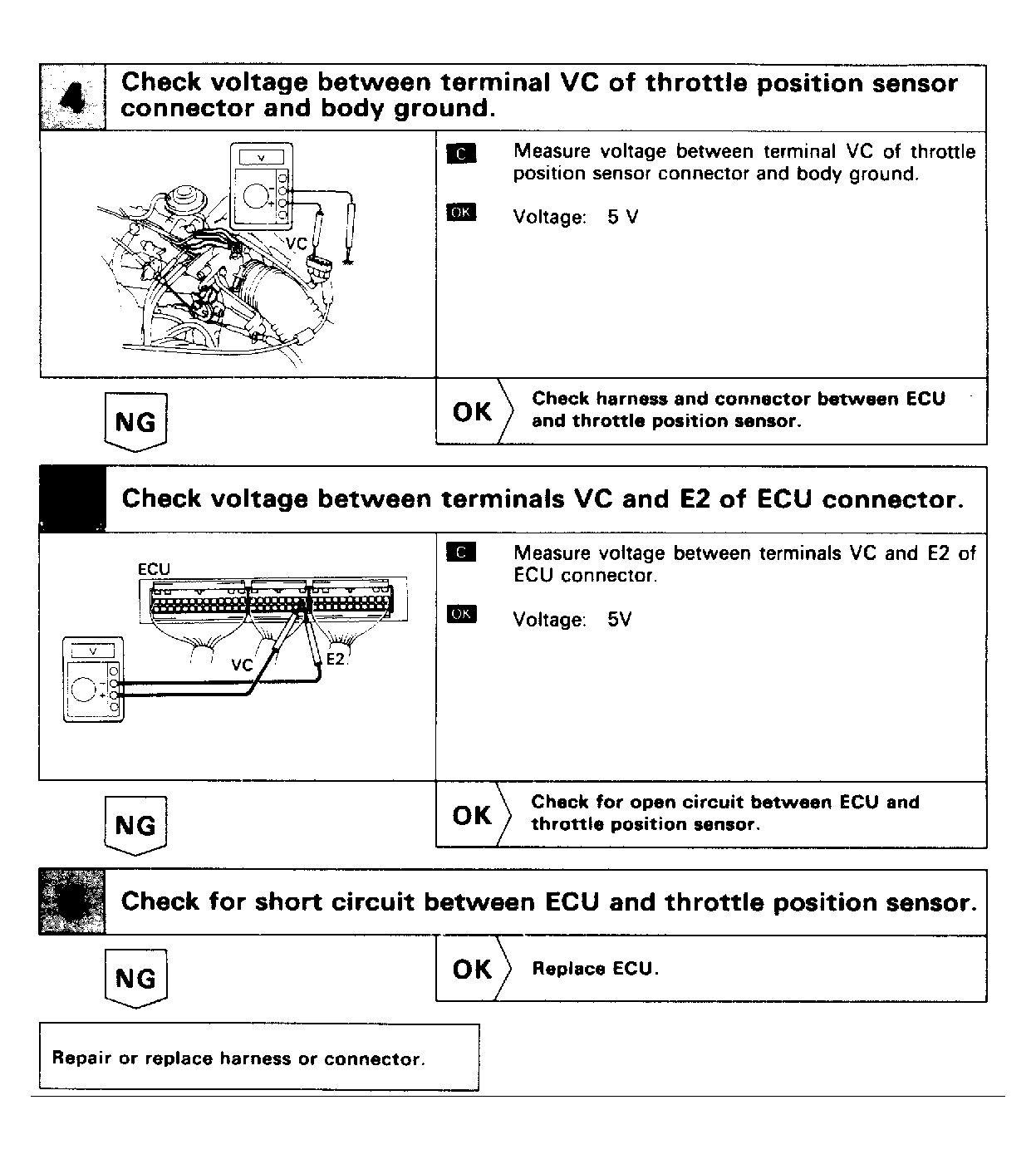

Fig 2: Code 41: TPS Signal (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
