Code 51: Switch Condition Signal
Code 51: Switch Condition Signal

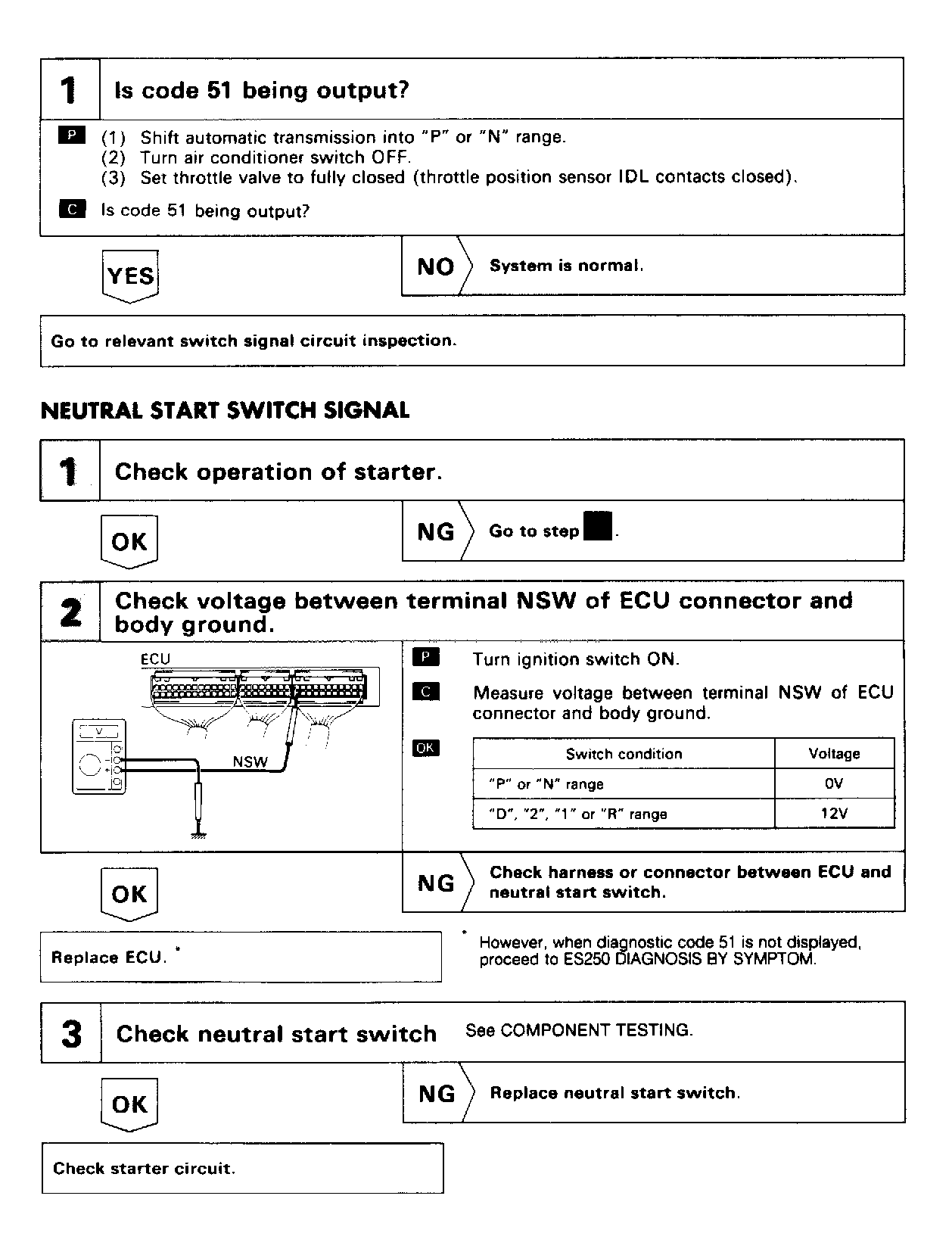

Fig 1: Code 51: Switch Condition Signal (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

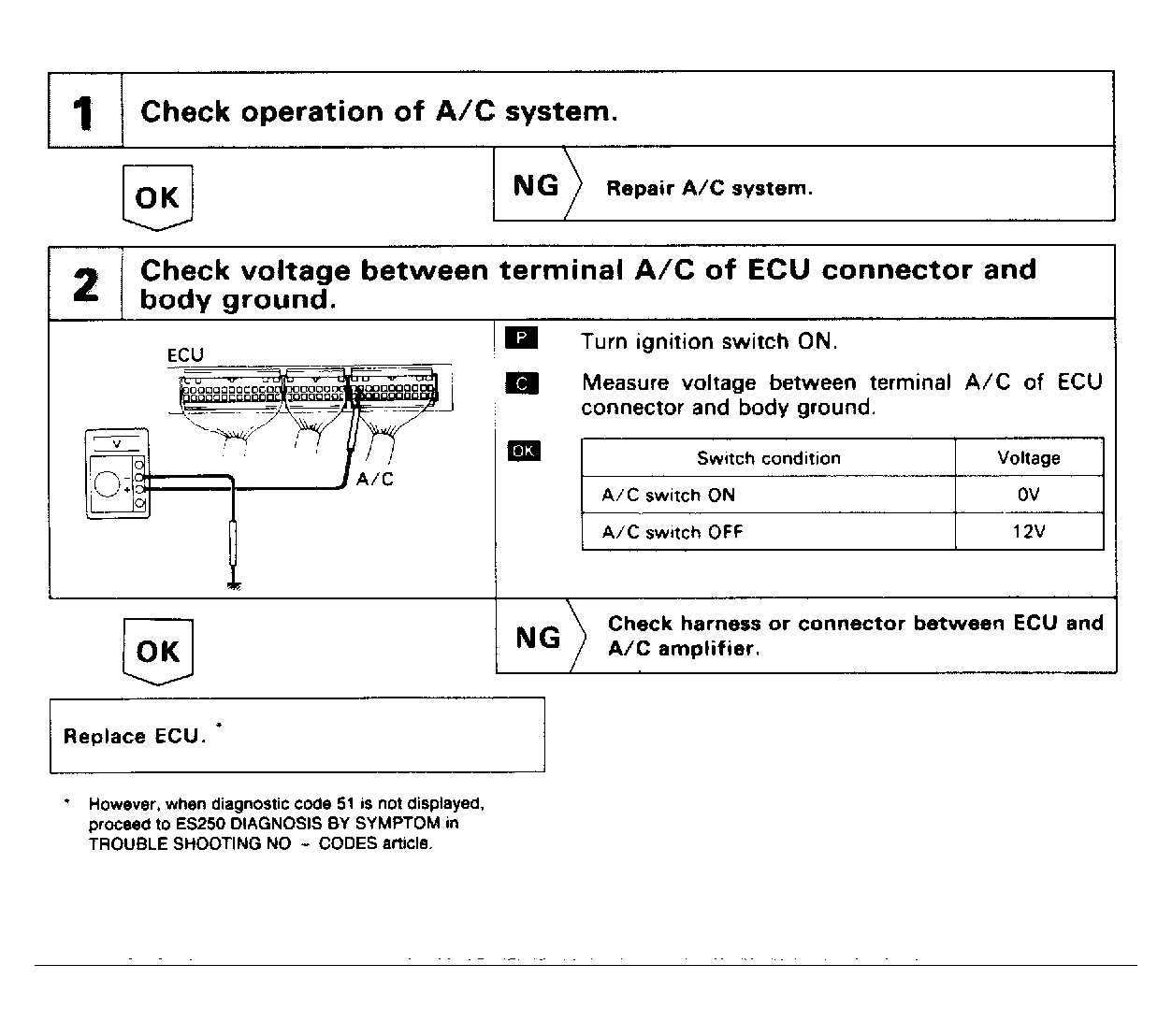

Fig 2: Code 51: A/C Switch Signal (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

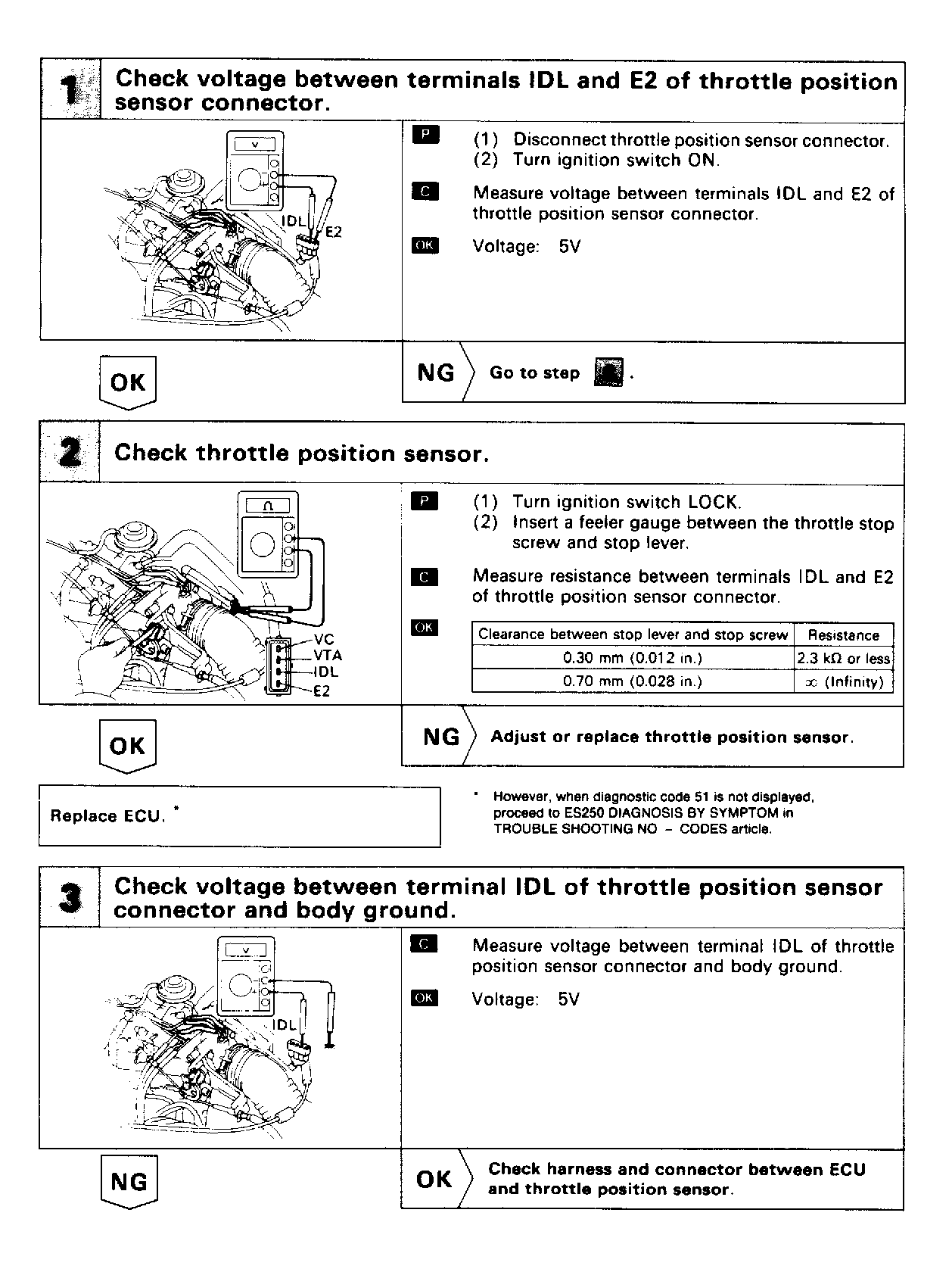

Fig 3: Code 51: TPS IDL Signal (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

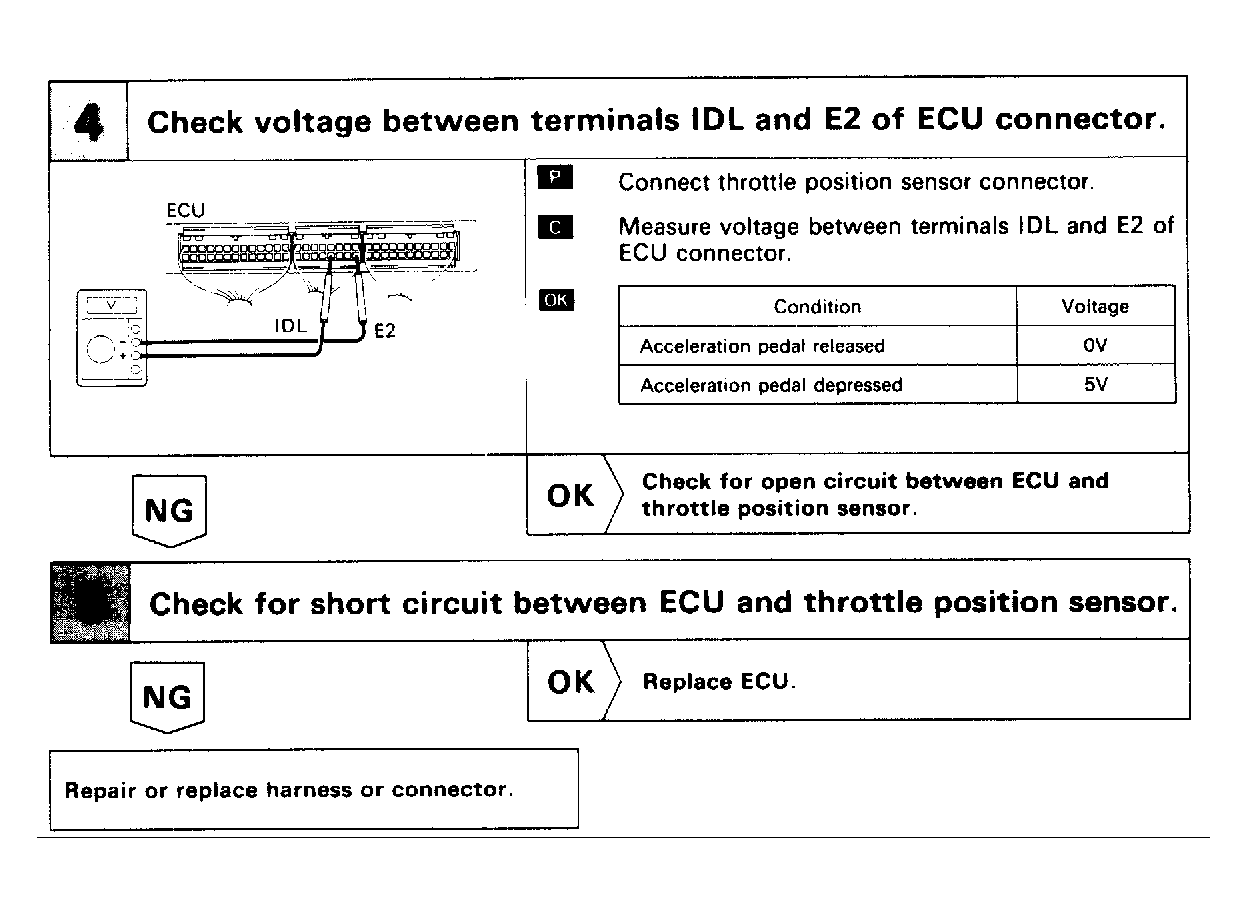

Fig 4: Code 51: Switch Condition Signal (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
