Engine Controls - Tests W/Codes
›
Code 52: Knock Sensor Signal
Code 52: Knock Sensor Signal

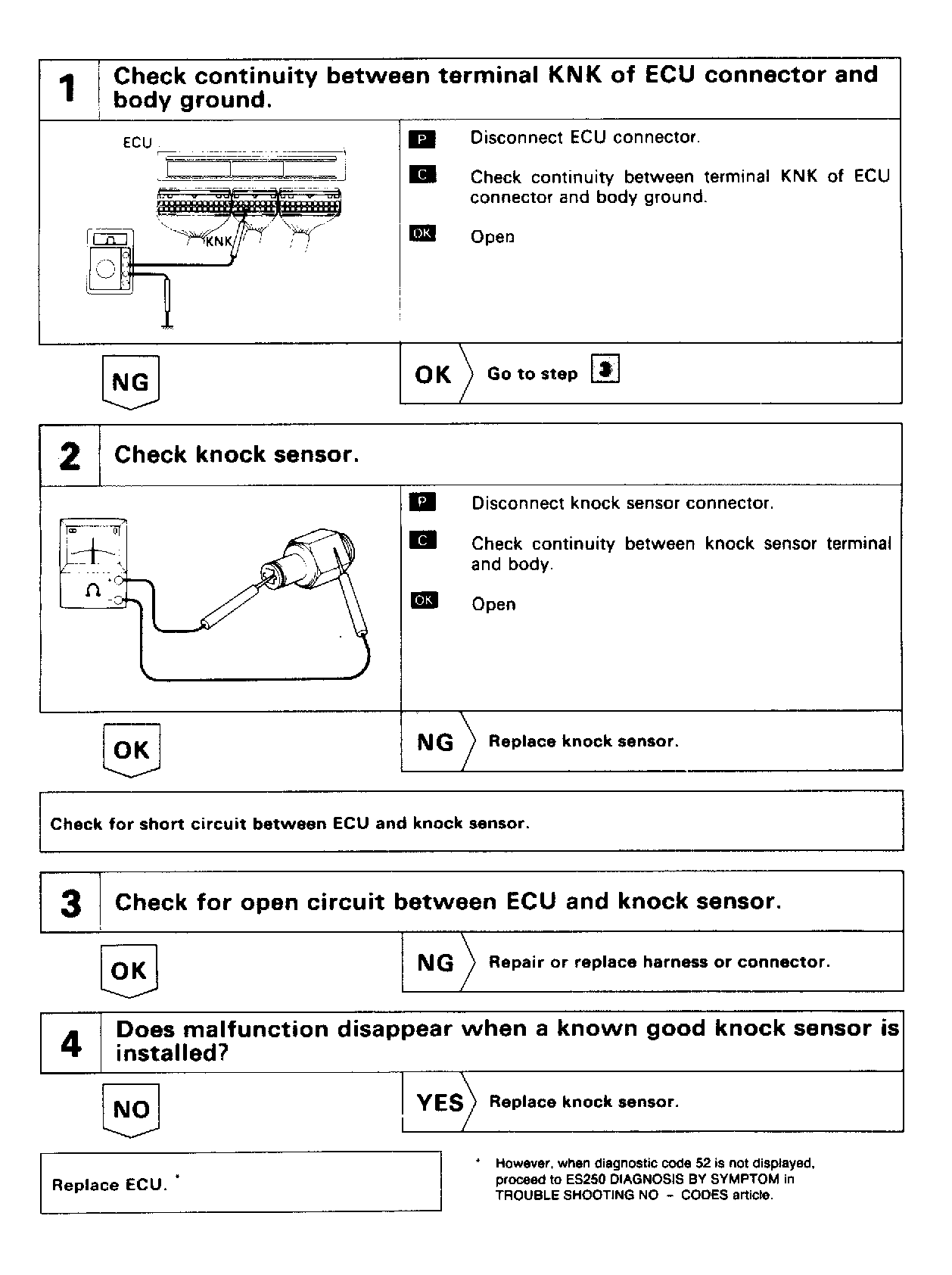

Fig 1: Code 52: Knock Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
