Code 71: EGR System Malfunction (CALIF)

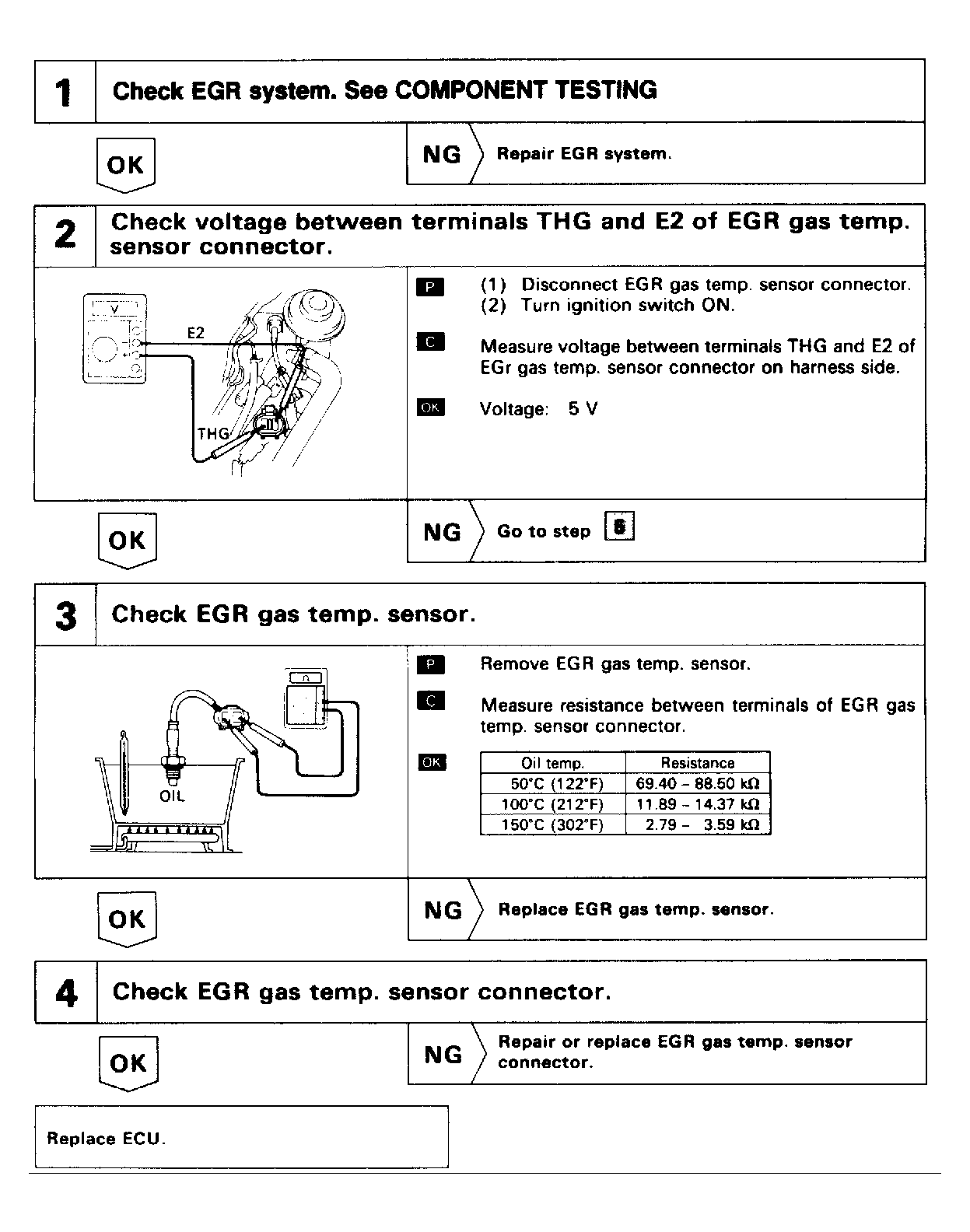

Fig 1: Code 71: EGR System Malfunction (Calif) (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

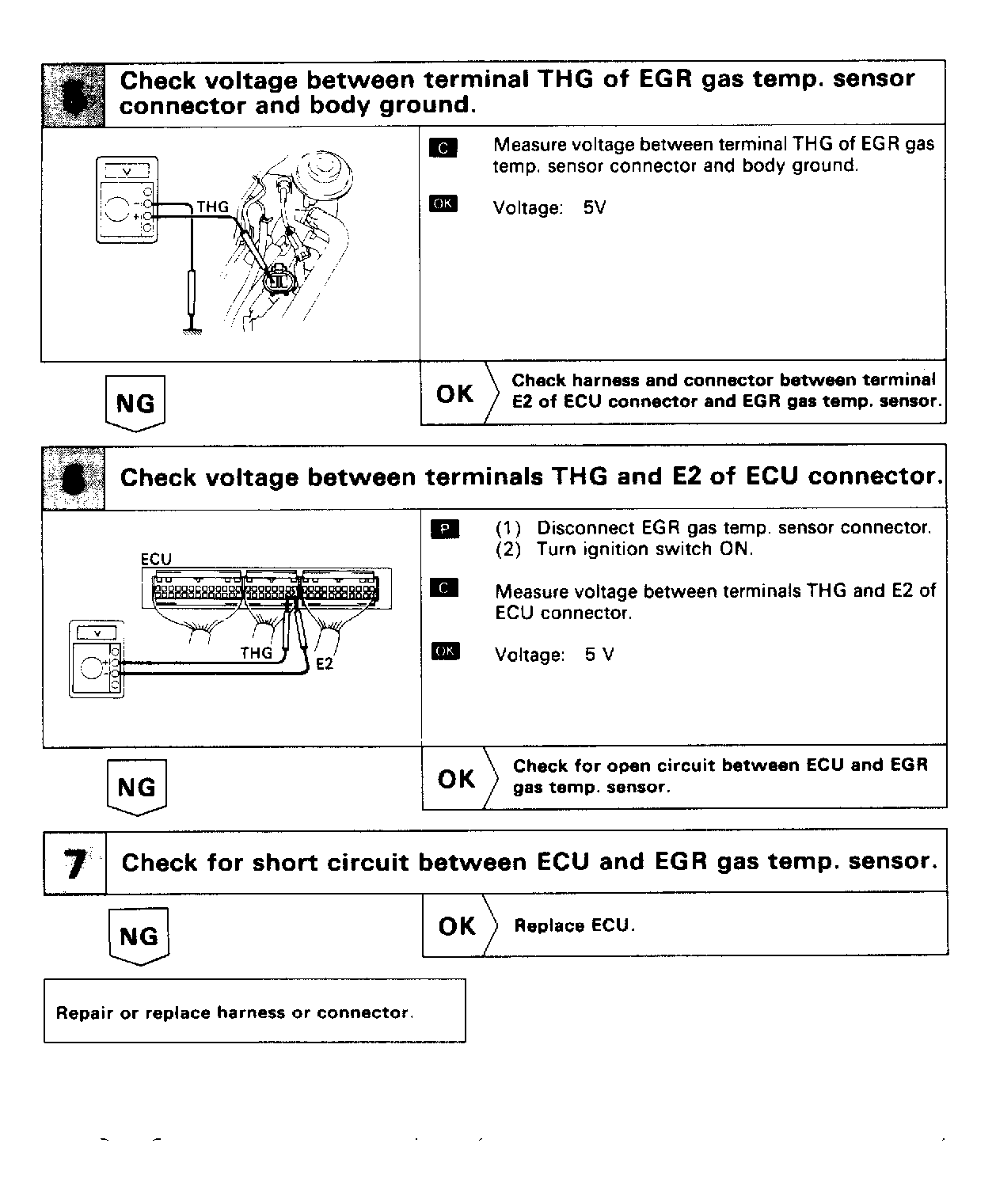

Fig 2: Code 71: EGR System Malfunction (Calif) (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
