Trouble No. 1: No Shifting
Trouble No. 1: No Shifting

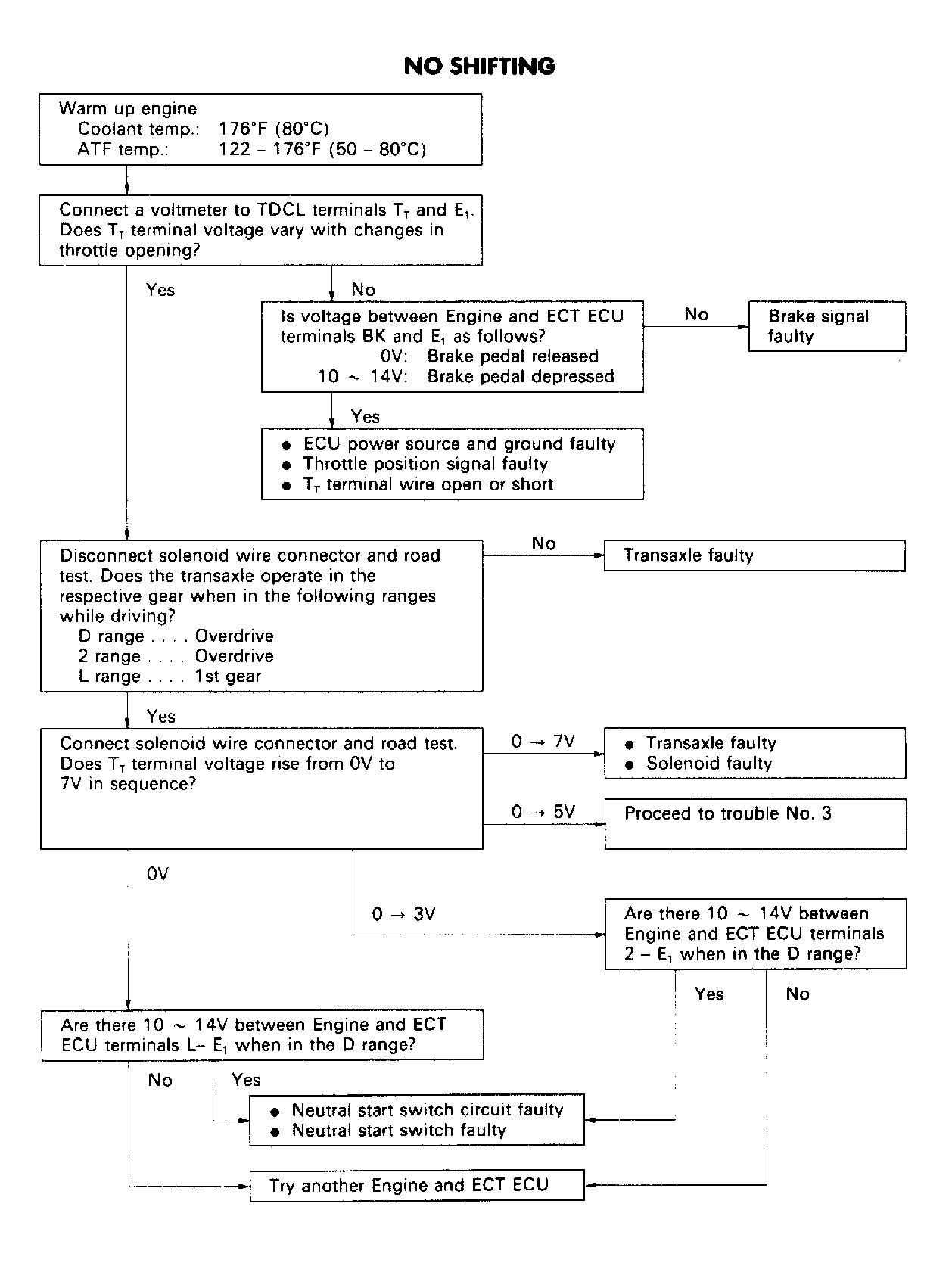

Fig 1: Trouble No. 1: No Shifting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
