Water Temperature Sensor

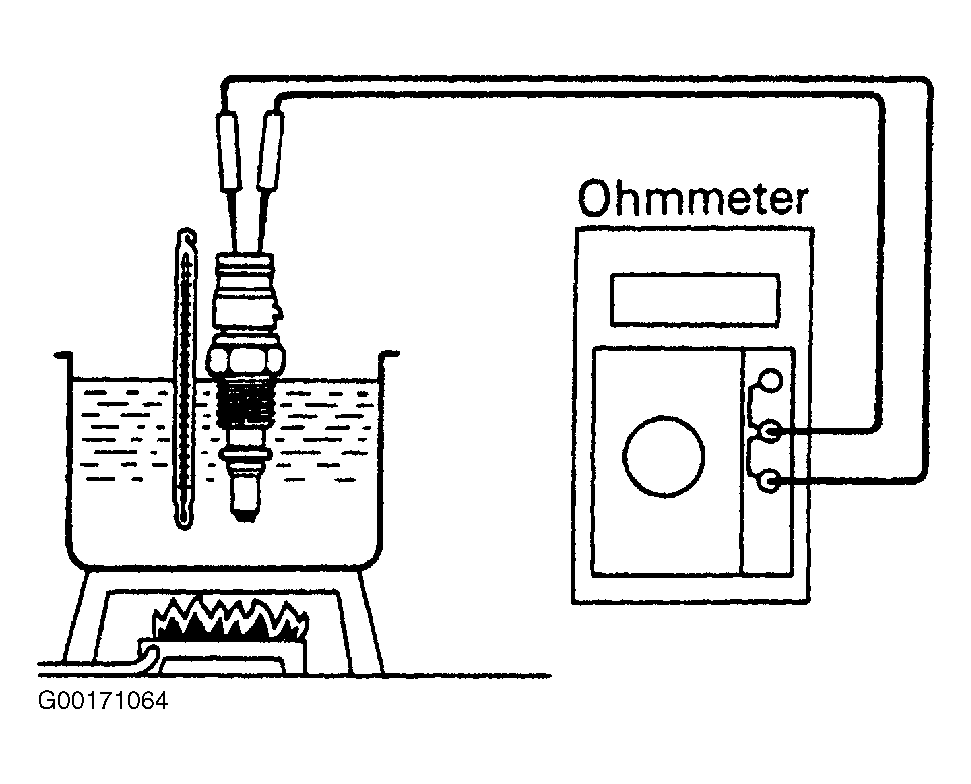

Using an ohmmeter, measure the resistance between the terminals. See WATER TEMPERATURE SENSOR RESISTANCE table and Fig 1.
WATER TEMPERATURE SENSOR RESISTANCE
| Temperature - °F (°C) | Resistance (Approx.) - Ohms |
|---|---|
| 176 (80) | 1530 |
| 194 (90) | 1180 |
| 203 (95) | 1030 |
