Code 13: Rpm Signal
Code 13: Rpm Signal

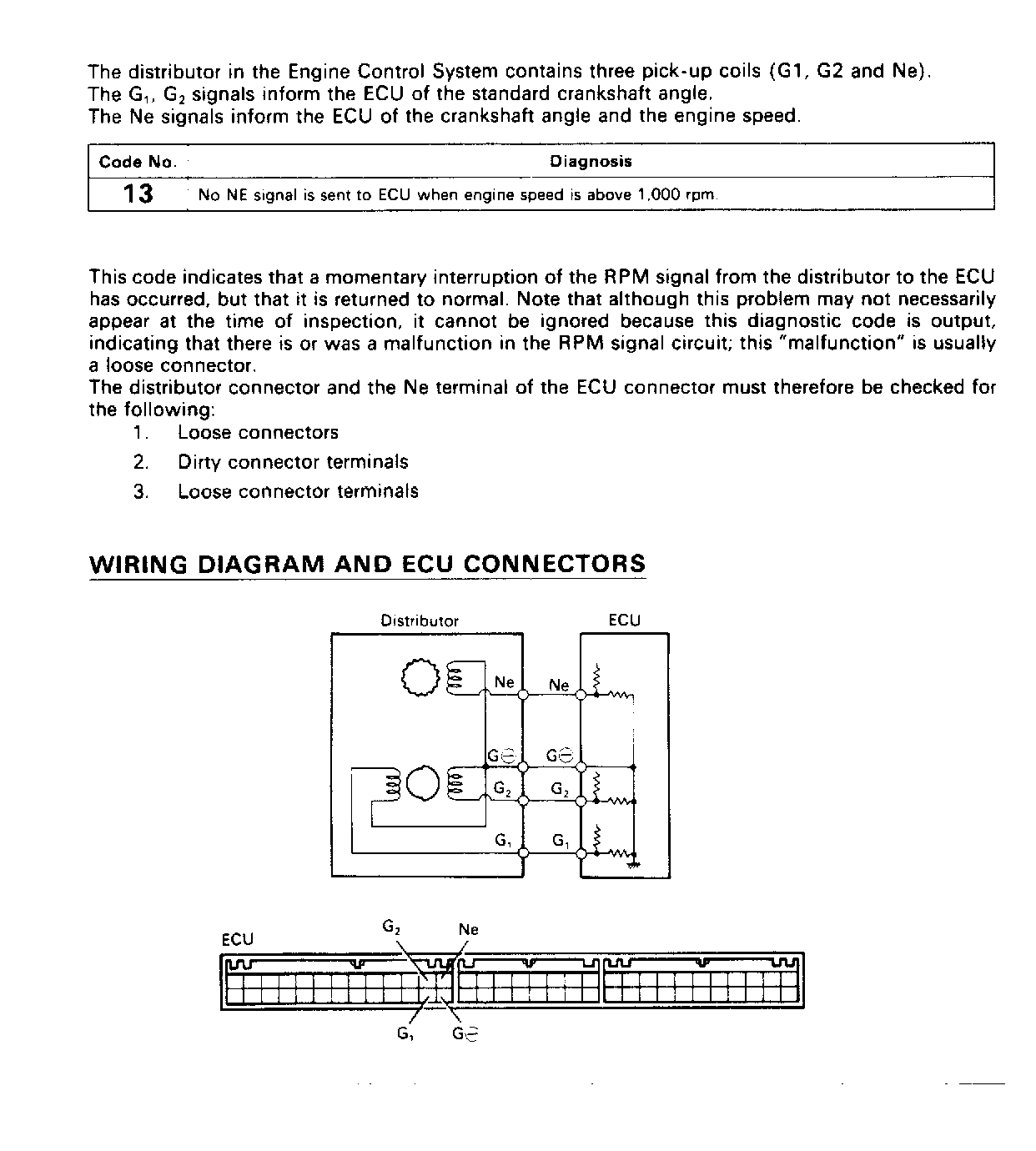

Fig 1: Code 13: RPM Signal Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
