Lexus
›
1990
›
LS 400
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Remote Keyless Entry
›
Wiring Diagrams
Wiring Diagrams

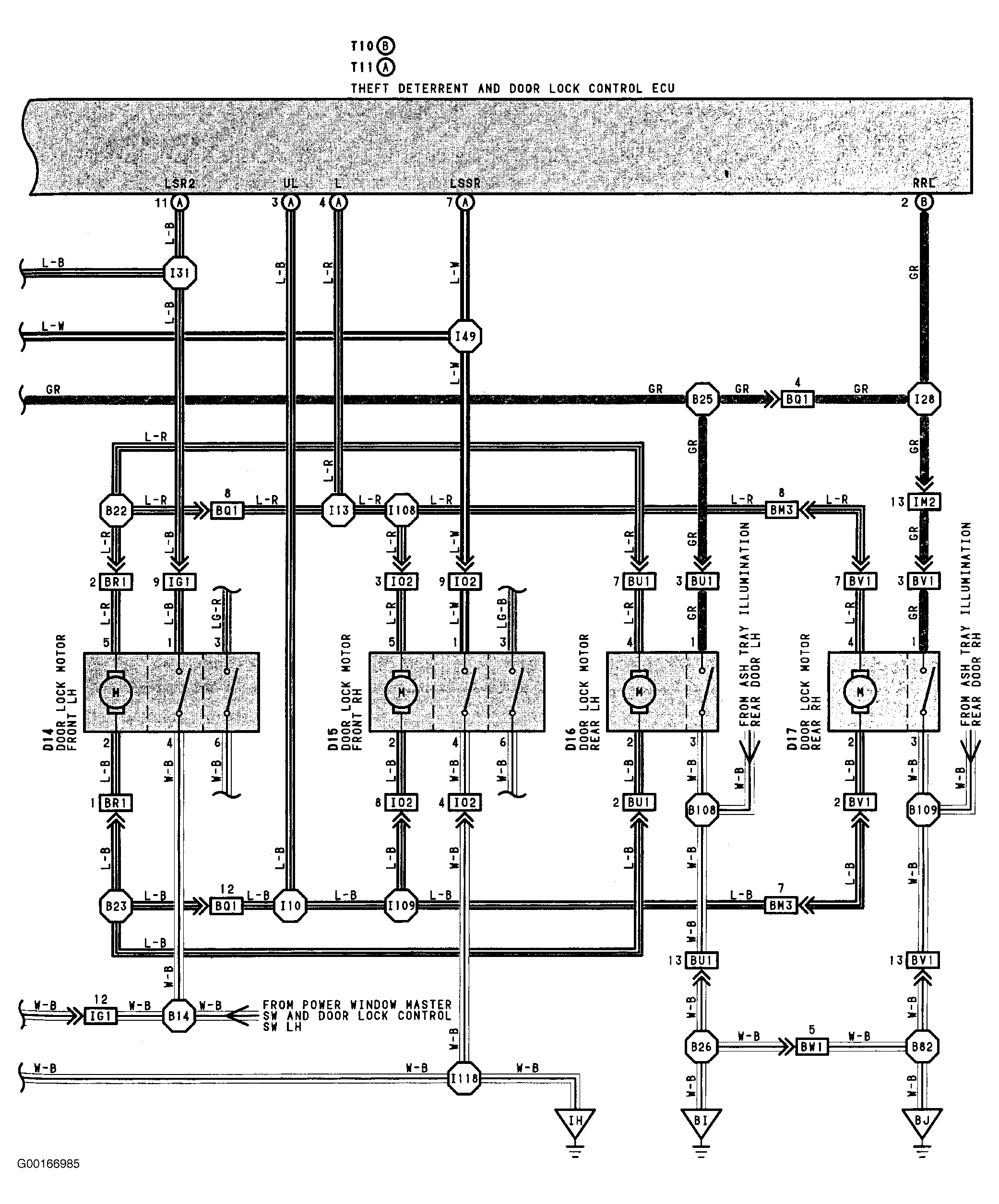

Fig 1: Wireless Door Lock Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

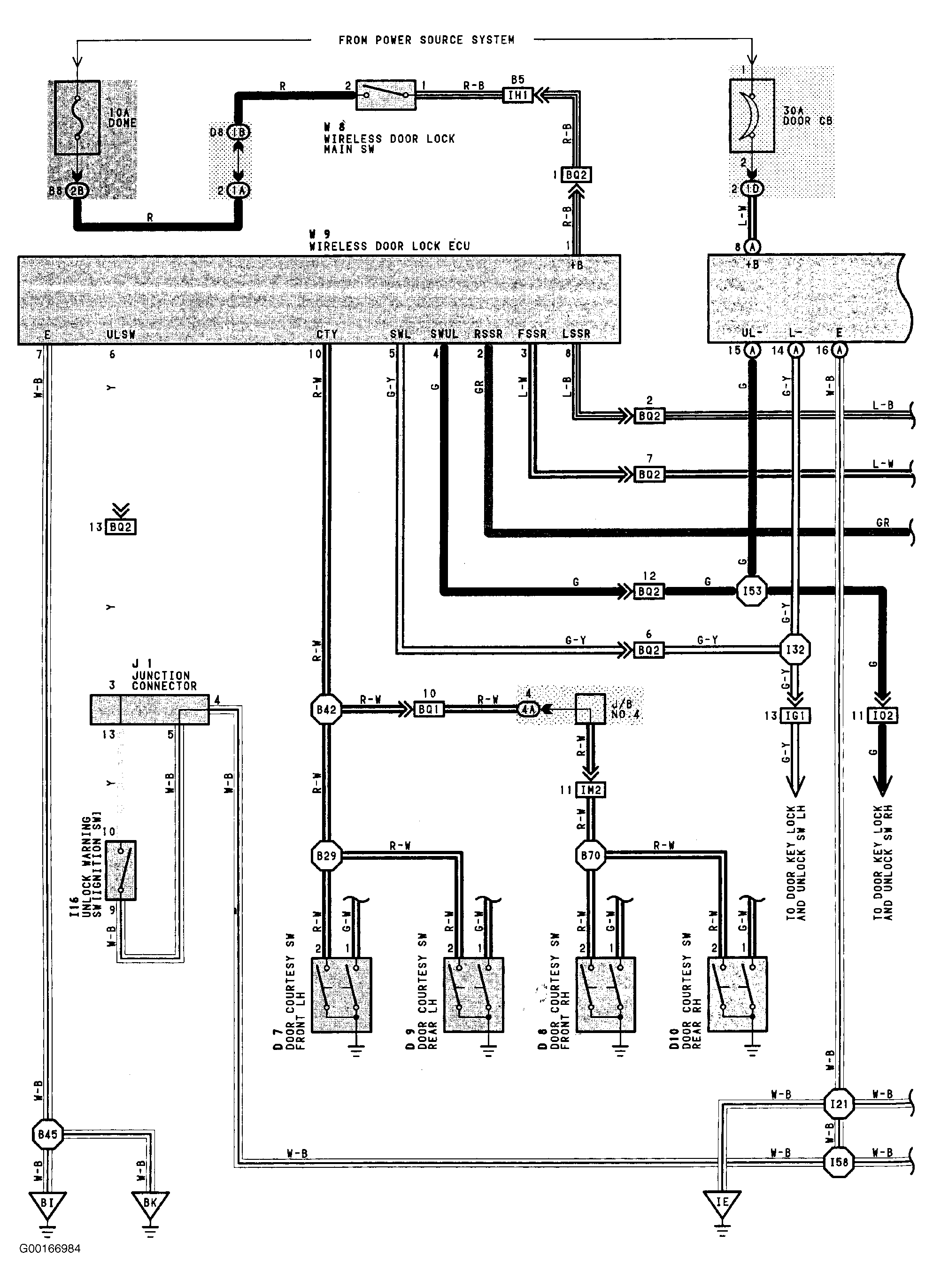

Fig 2: Wireless Door Lock Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
