Switch Circuit

Disconnect the connector from the master switch and inspect the connector on the wire harness side, see Fig 1.

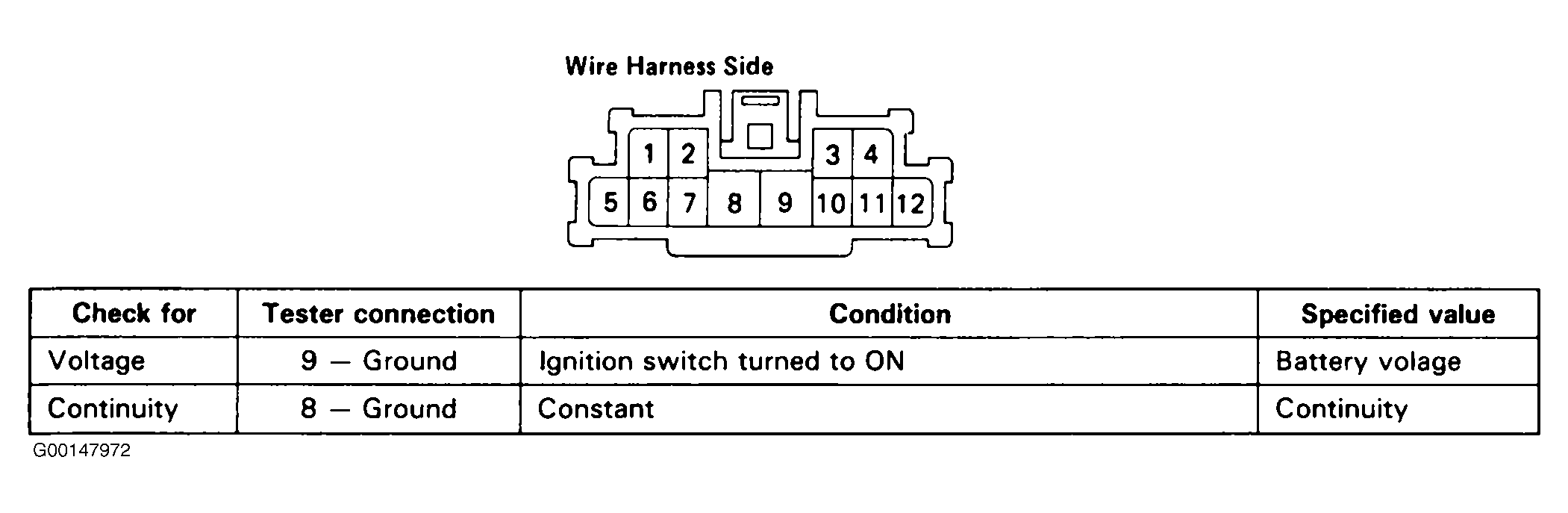

Fig 1: Identifying Switch Connector & Circuit Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the circuit is not as specified, see WIRING DIAGRAMS  and inspect the circuits connected to other parts.
