Left Side Door Motor/Motor Operation

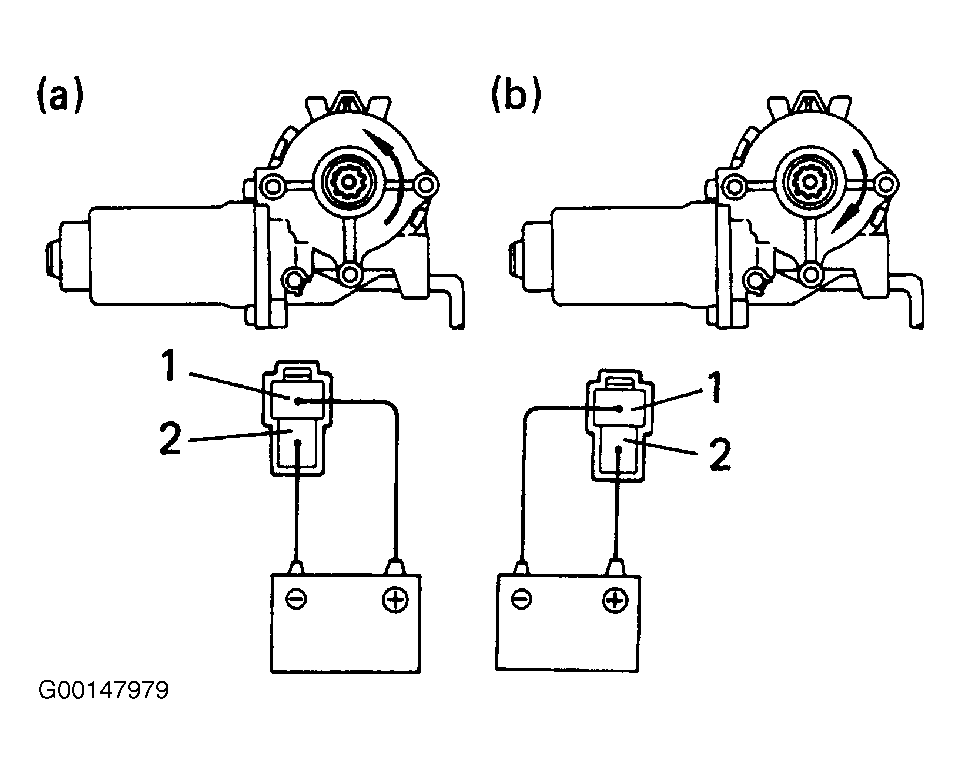

- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2. Check that the motor turns counterclockwise. See Fig 1.
- Reverse the polarity, check that the motor turns clockwise. If operation is not as specified, replace the motor.
