Right Side Door Motor/Motor Operation

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise. See Fig 1.

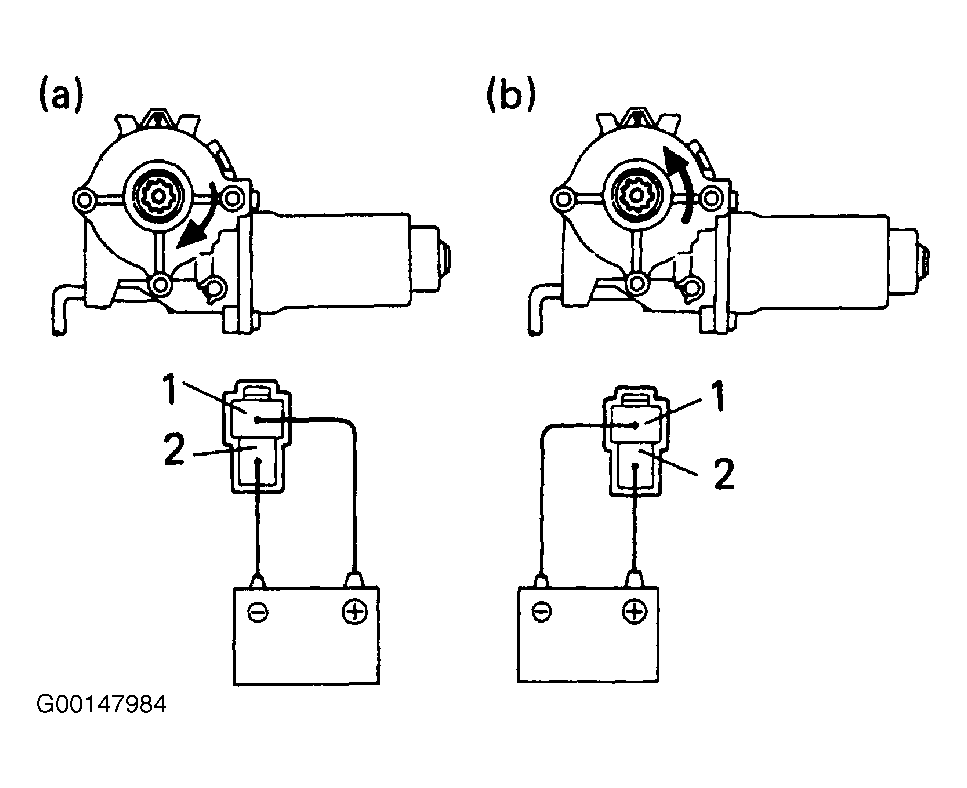

   Fig 1: Inspecting Right Side Motor Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse polarity, check that the motor turns counterclockwise. If operation is not as specified, replace the motor. See POWER WINDOW MOTOR under REMOVAL & INSTALLATION.

For right side door motor/circuit breaker operation, see Motor/Circuit Breaker Operation (Driver's Door) .
