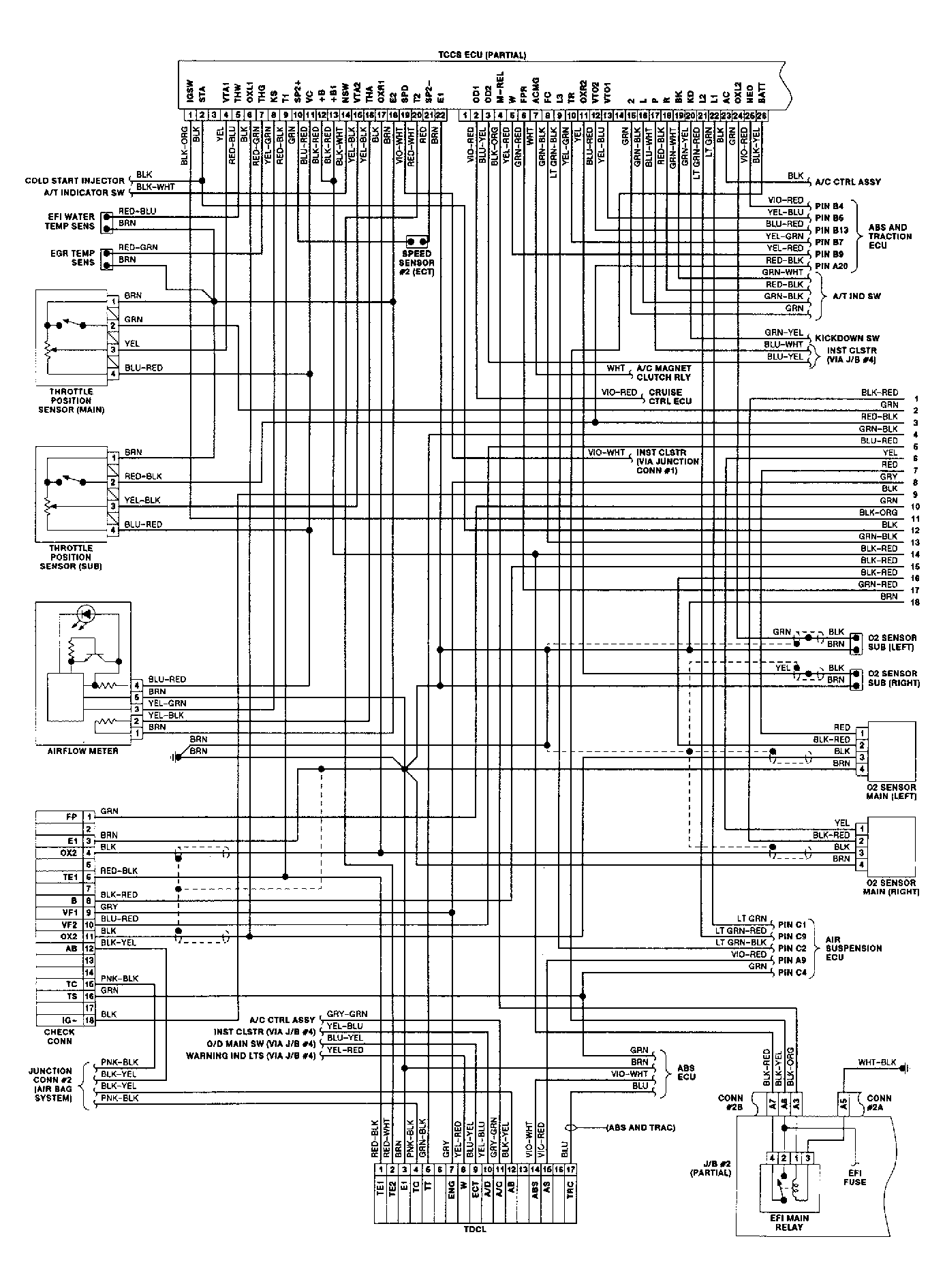

Fig 1: Traction Control System Wiring Diagram (1990)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

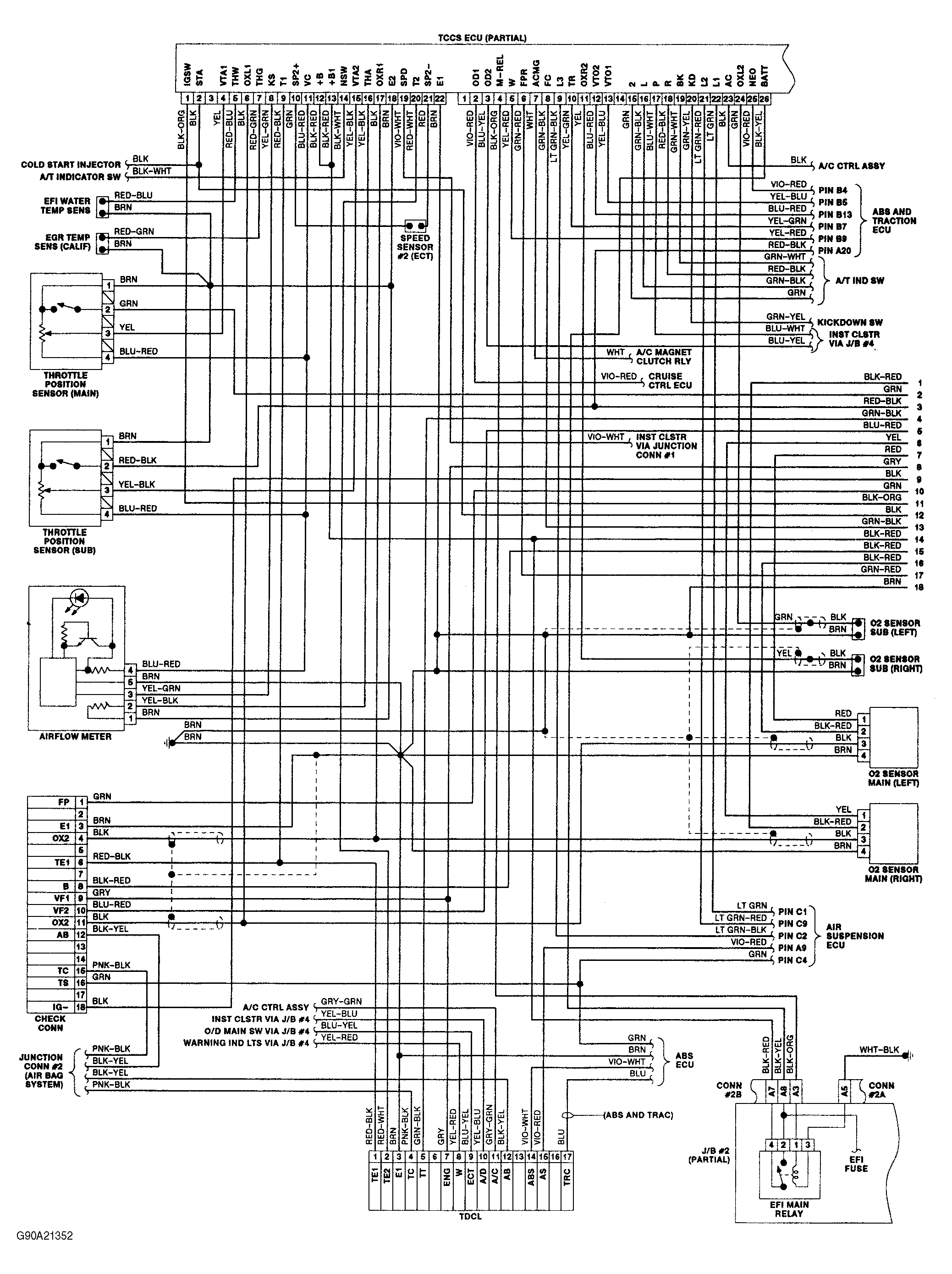

Fig 2: Traction Control System Wiring Diagram (1991)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

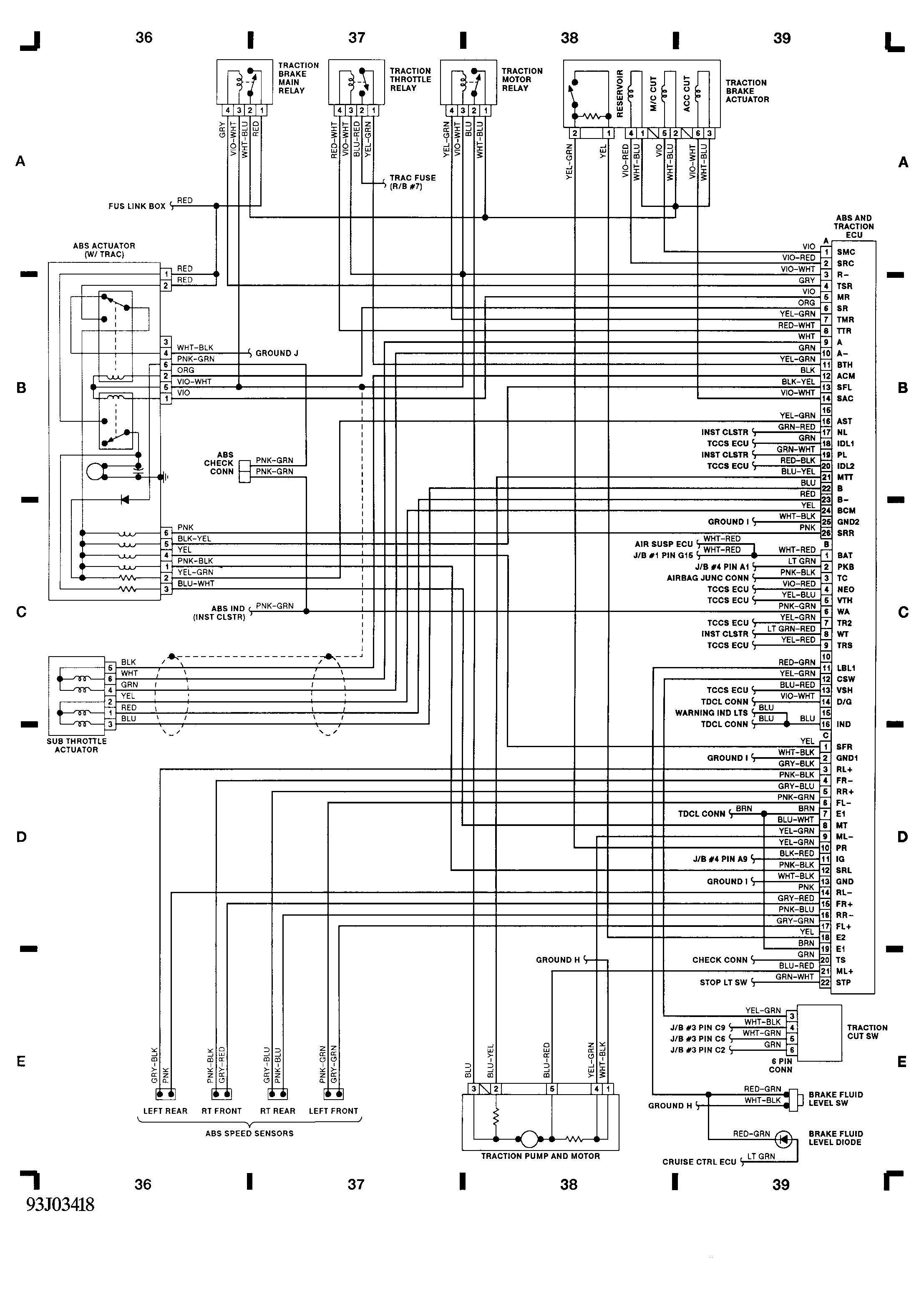

Fig 3: Traction Control System Wiring Diagram (1992)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
