Chart 5: Speedometer Does Not Operate While Driving
NOTE:
While doing the following inspection, make certain that the connectors and terminals are properly connected.

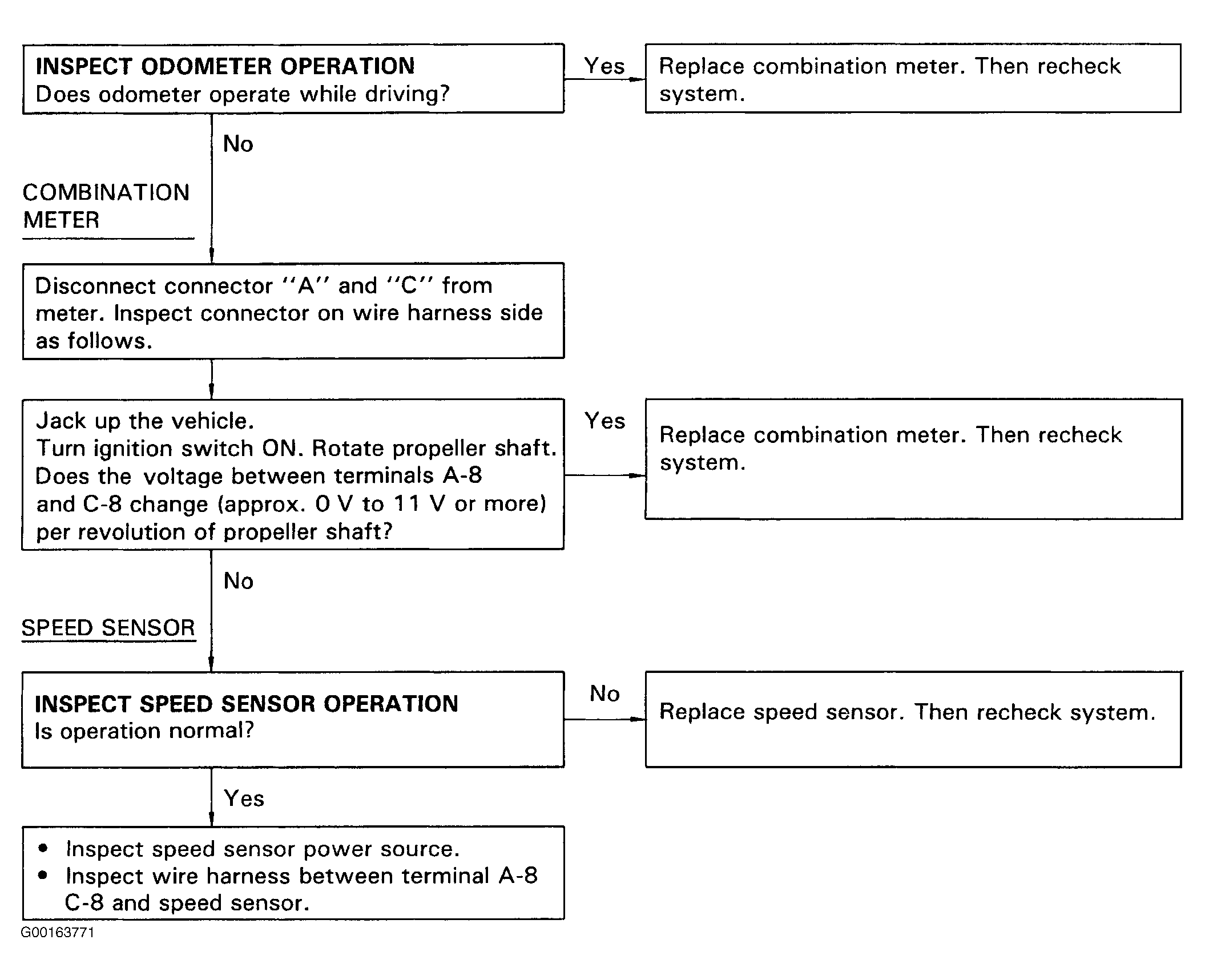

For test procedures, see Fig 1.For connector identification, see CONNECTOR IDENTIFICATION .
