Engine Mechanical
›
Engine Cooling Fans
›
Component Locations
Component Locations

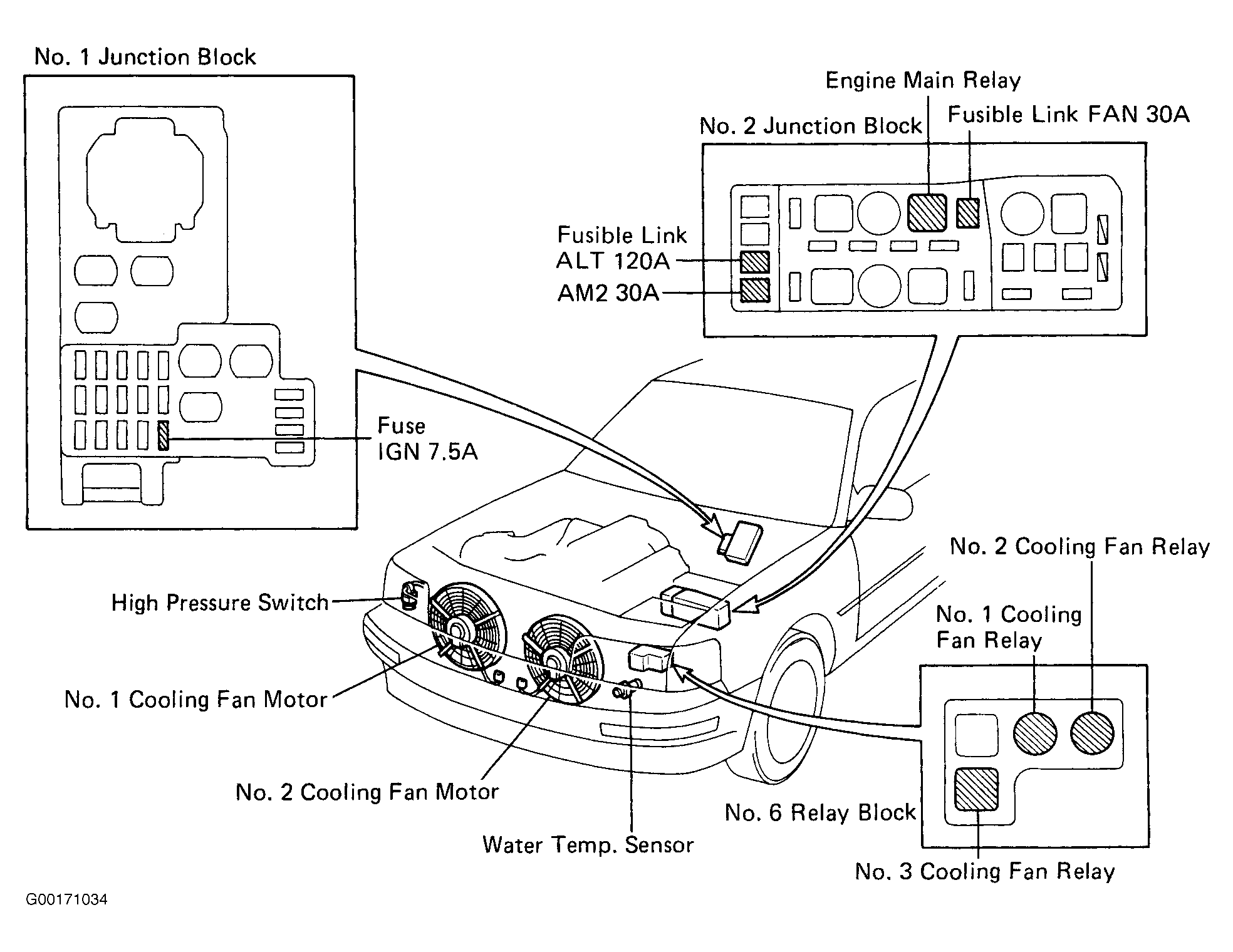

Fig 1: Location Of Electronic Cooling Fan Relays, No. 1 Junction Block & Water Temperature Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Location Of Electronic Cooling Fan Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

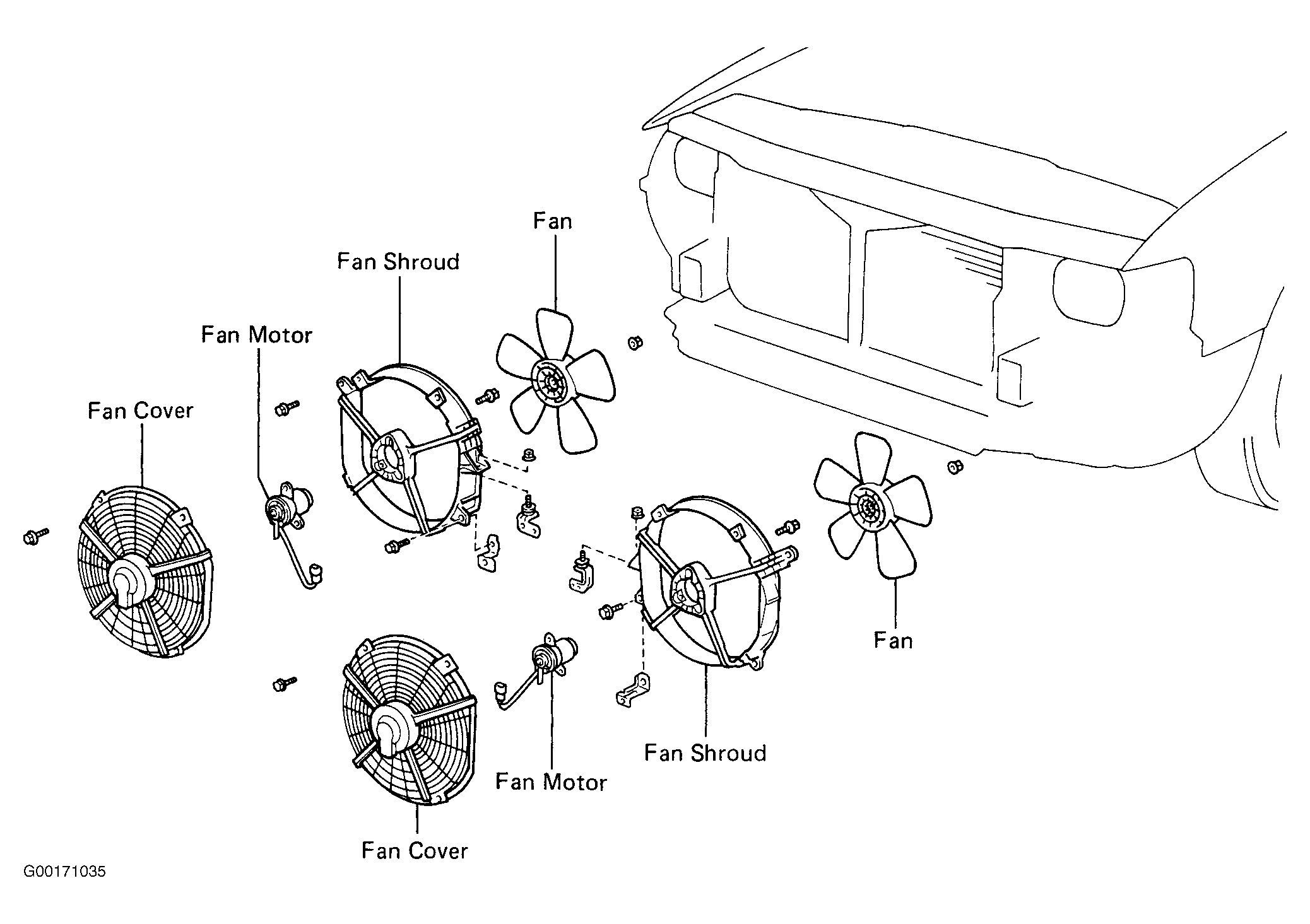

Fig 3: Locating A/C High Pressure Switch (Right Front Of Engine Compartment)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
