Code 22: Water Temperature Sensor Signal

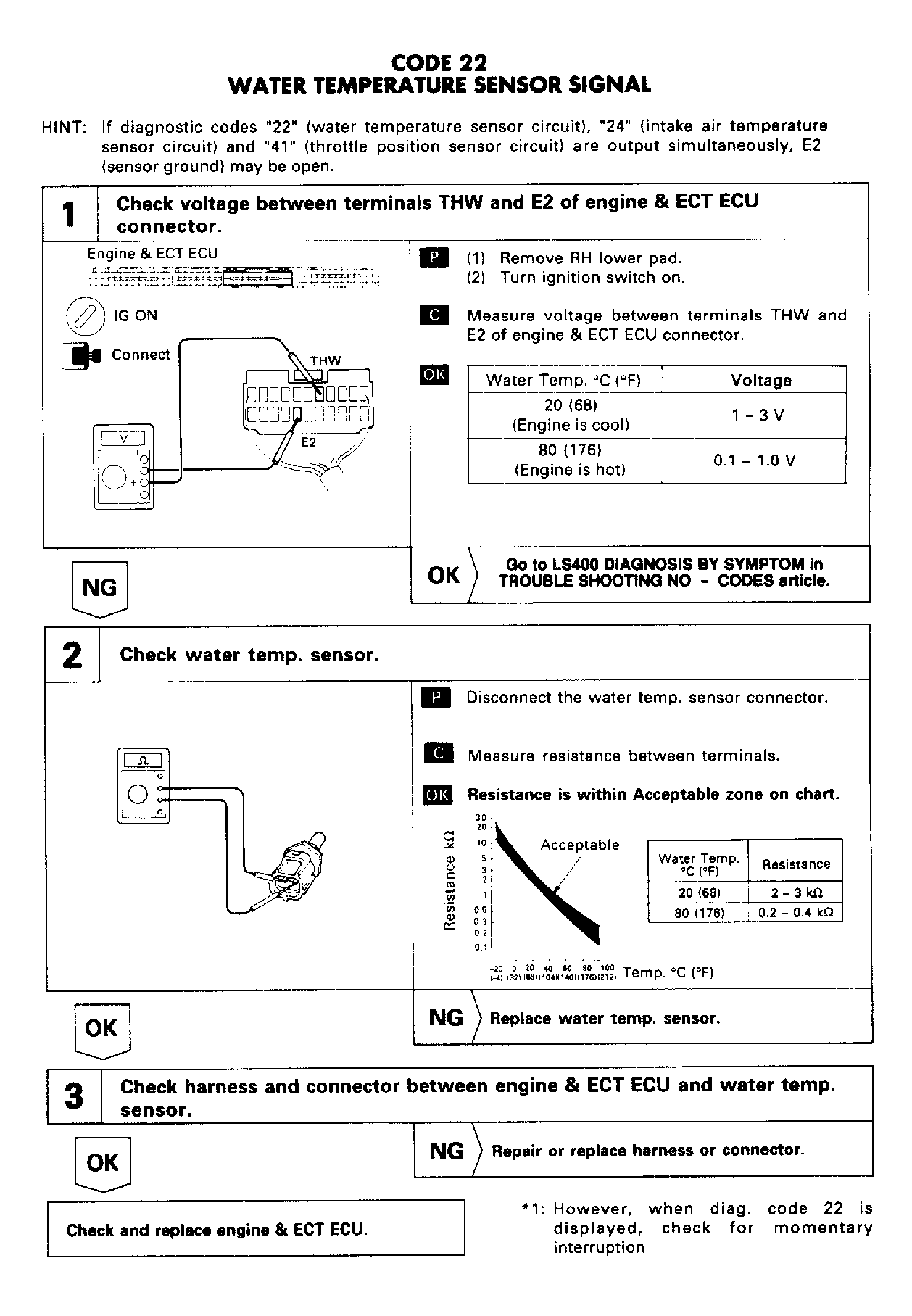

Fig 1: Code 22: Water Temp Sensor Signal Chart
G90I18935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
