Code 28: Right Bank Main O2 Sensor Signal

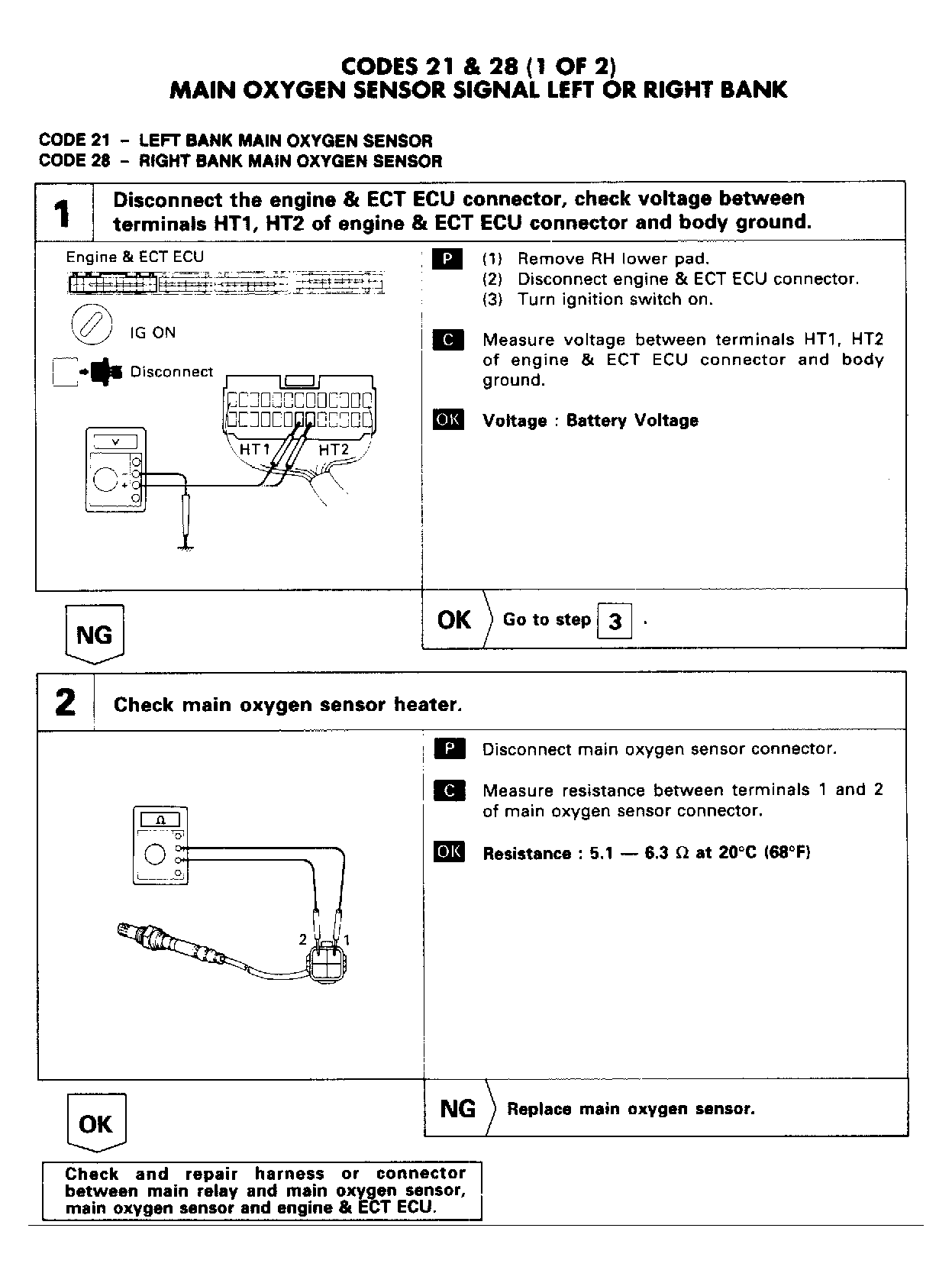

Fig 1: Code 28: Right Bank Main O2 Sensor Signal Chart (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

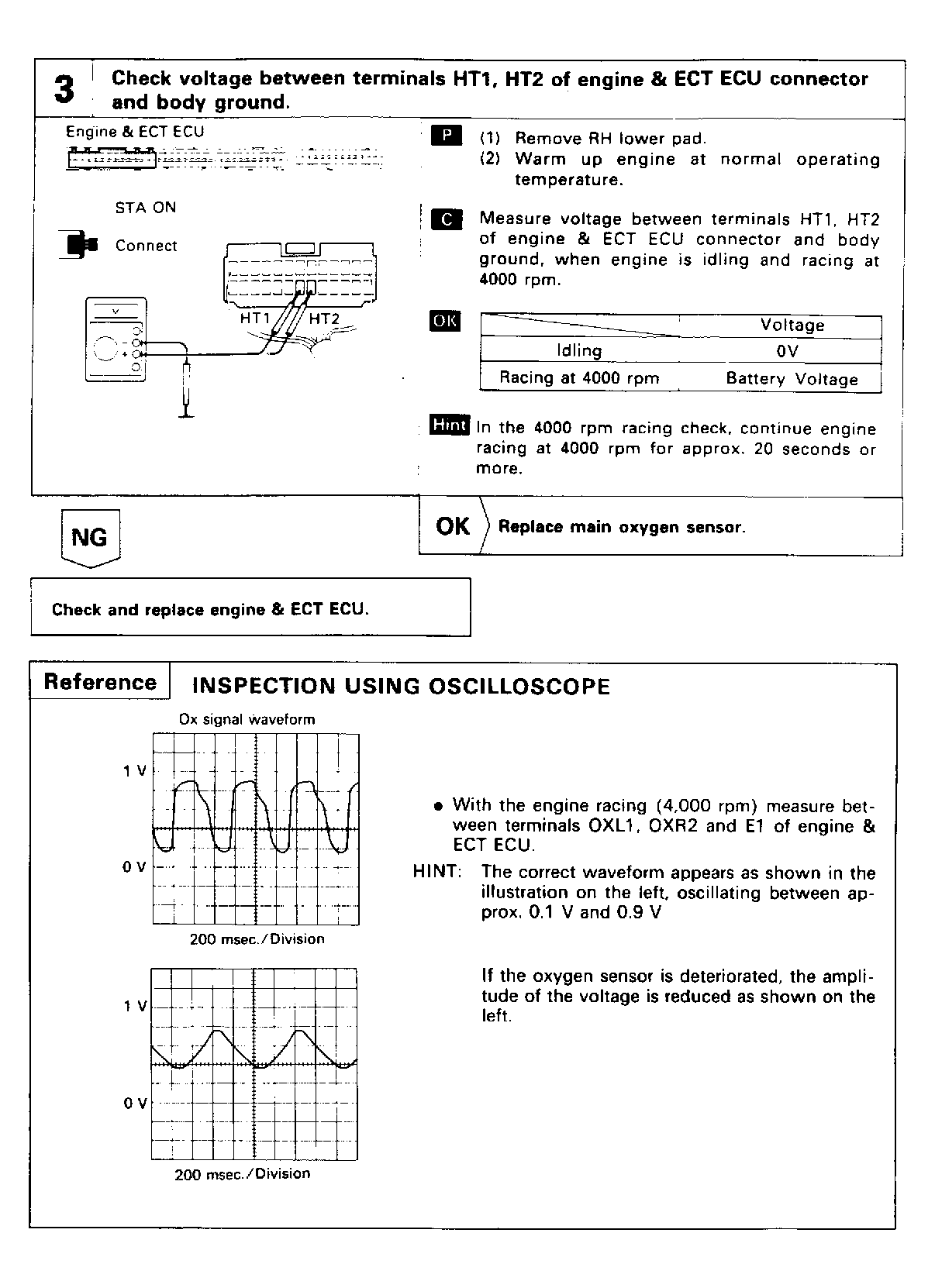

Fig 2: Code 28: Right Bank Main O2 Sensor Signal Chart (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
