Code 31: Airflow Meter Signal

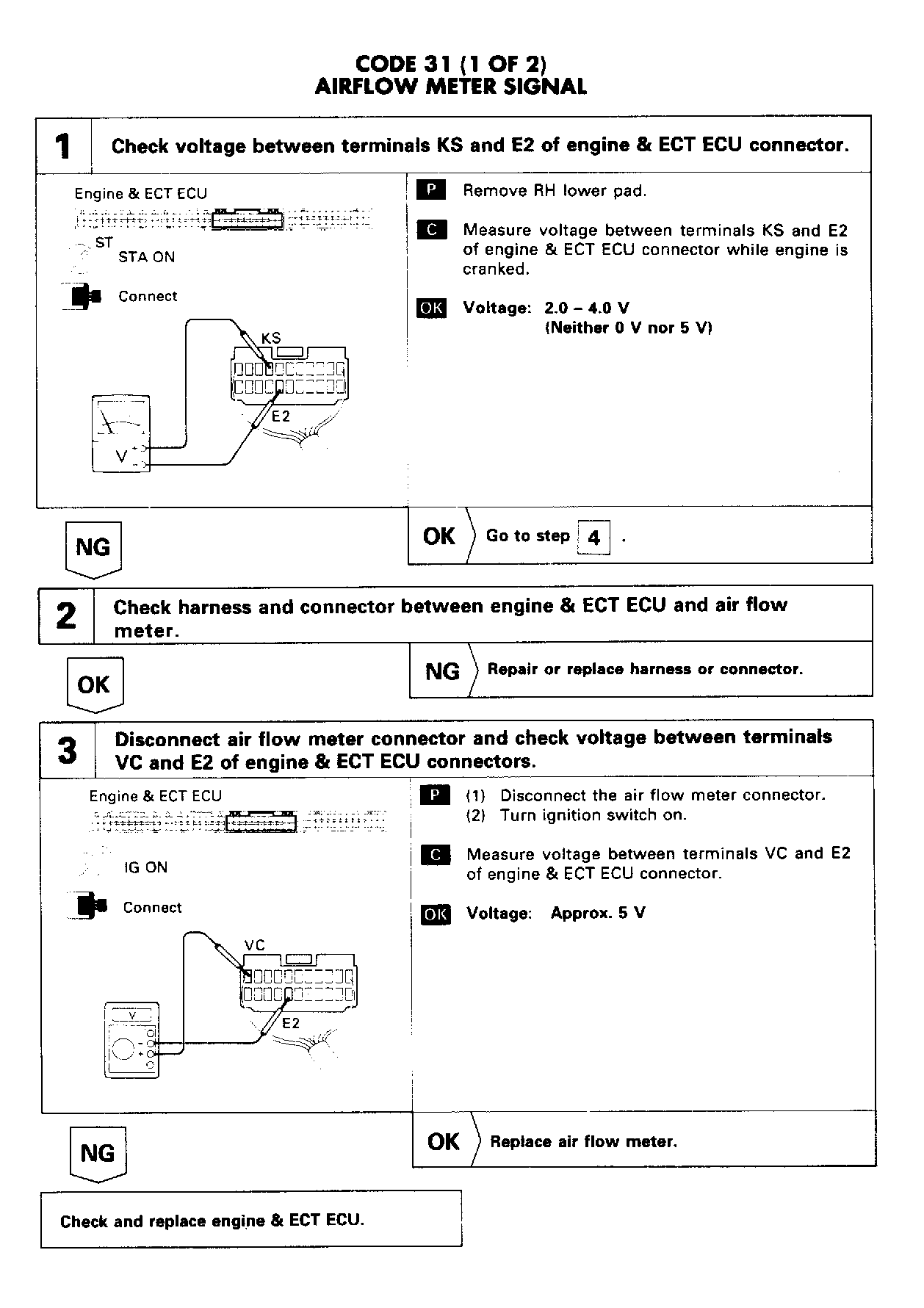

Fig 1: Code 31: Airflow Meter Signal Chart (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 31: Airflow Meter Signal Chart (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
