Code 42: Speed Sensor No. 1 Signal
Code 42: Speed Sensor No. 1 Signal

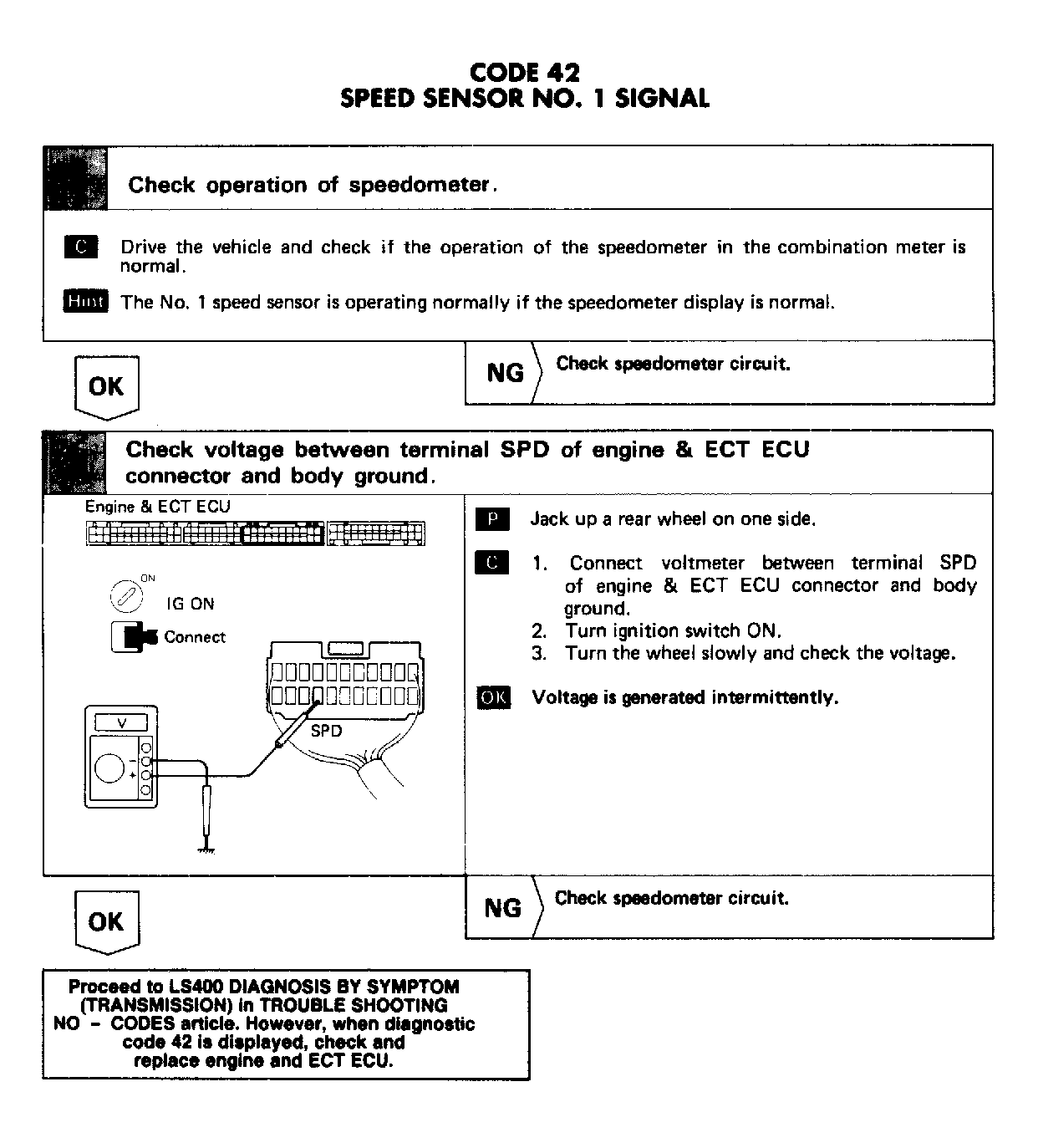

Fig 1: Code 42: Speed Sensor No. 1 Signal Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
