Code 43: Starter Signal
Code 43: Starter Signal

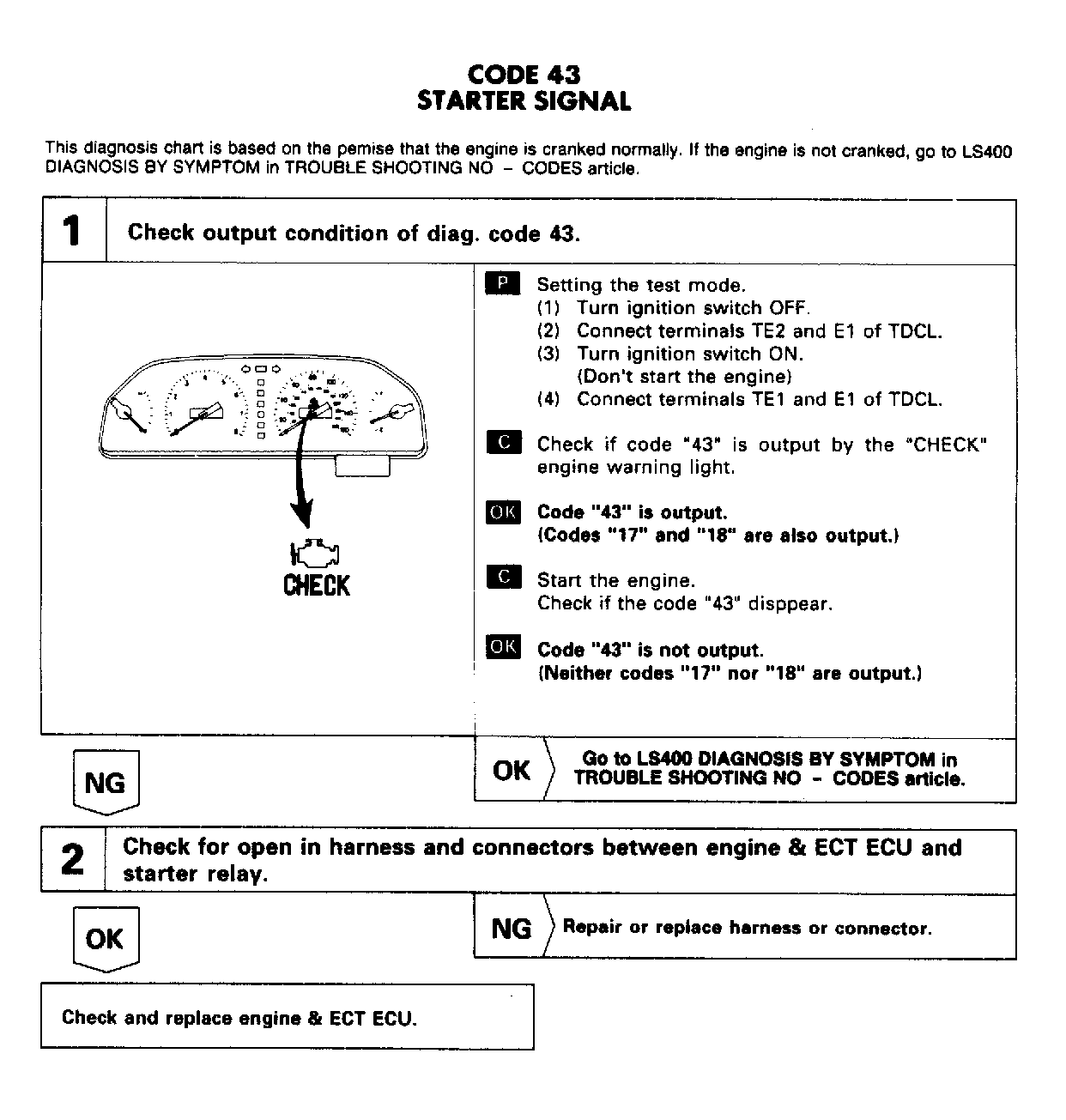

Fig 1: Code 43: Starter Signal Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
