Code 47: Sub-Throttle Position Sensor (TPS) Signal

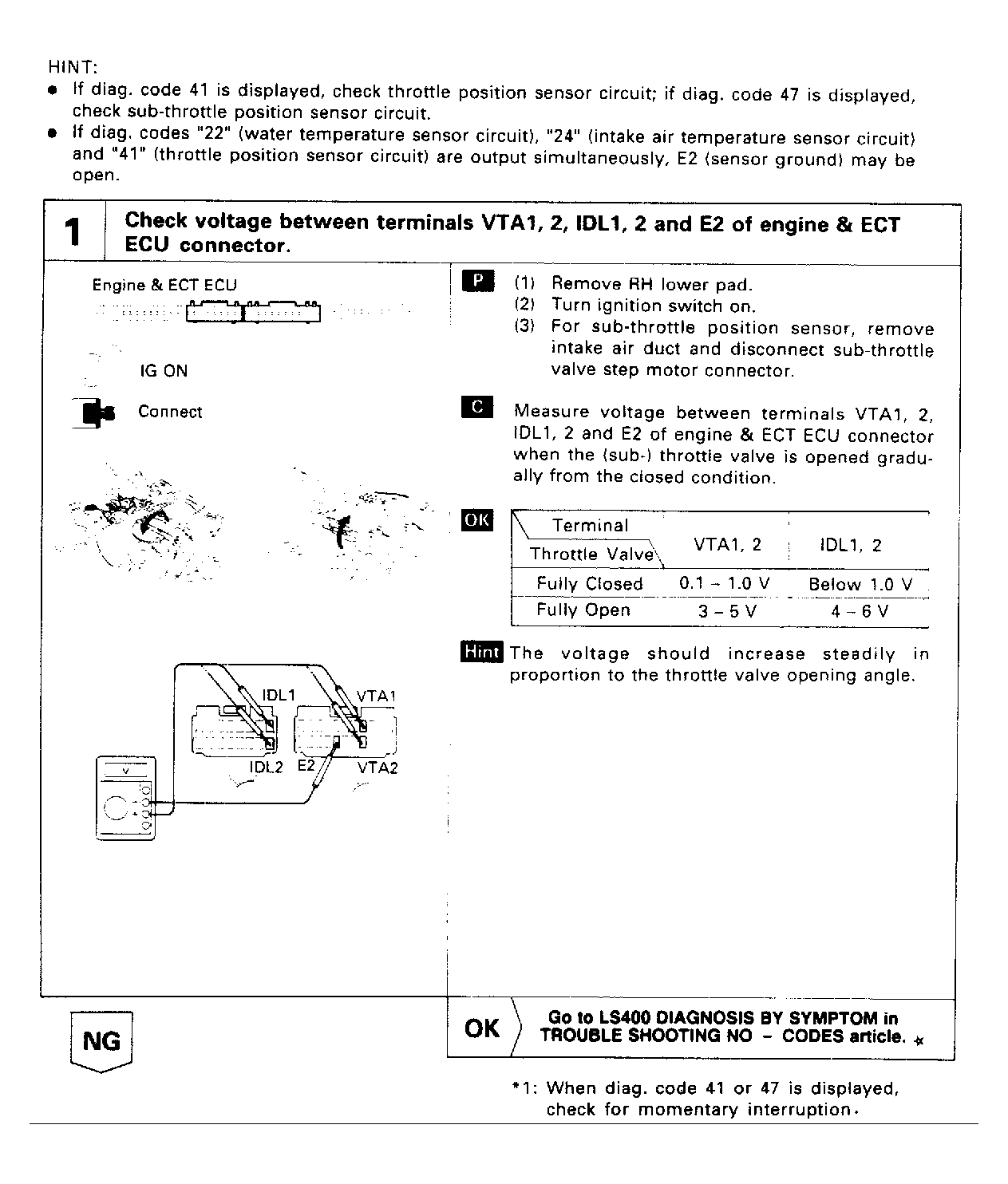

Fig 1: Code 47: Sub-TPS Sensor Signal Chart (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

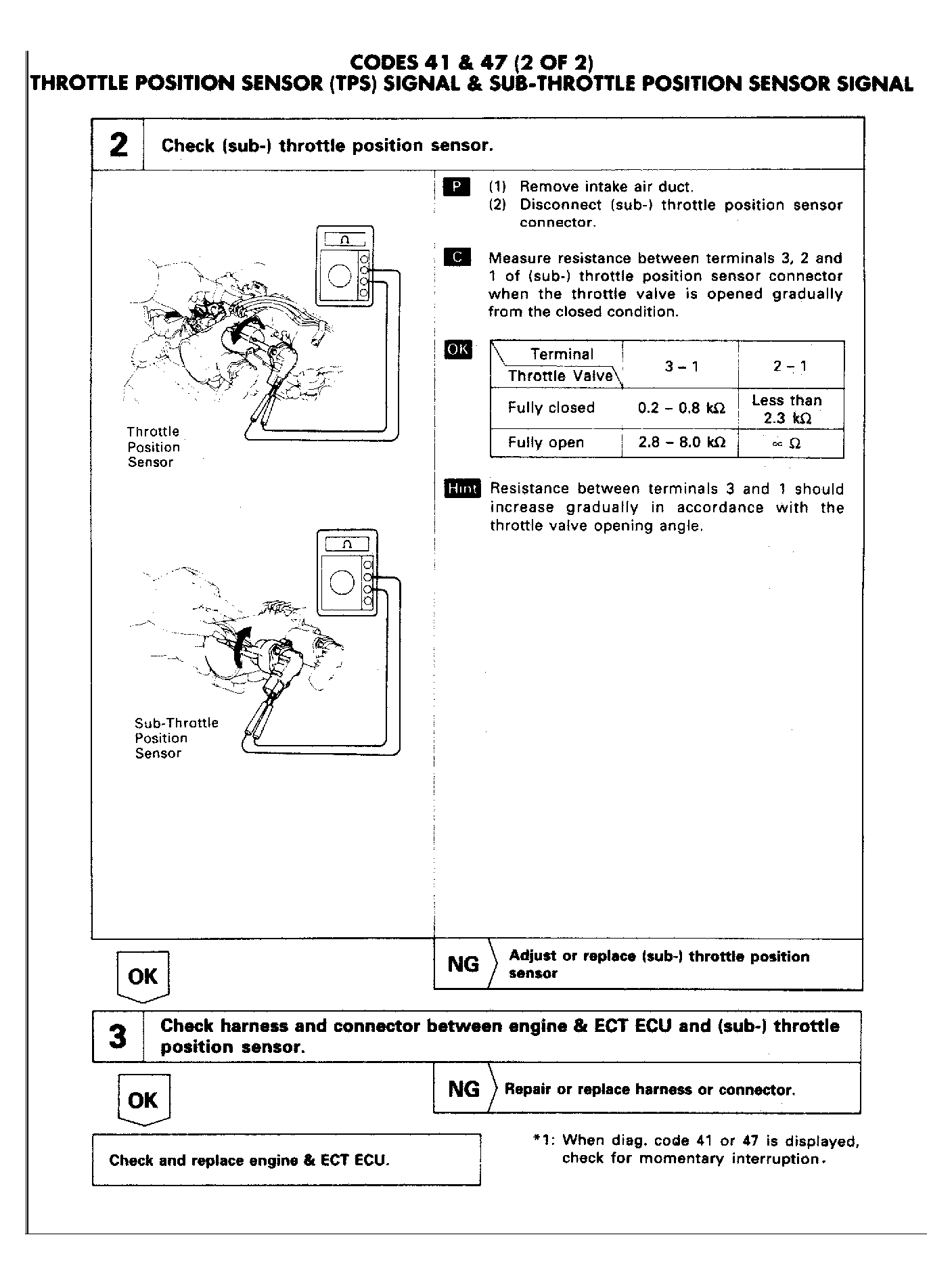

Fig 2: Code 47: Sub-TPS Sensor Signal Chart (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
