Code 51: Switch Condition Signal

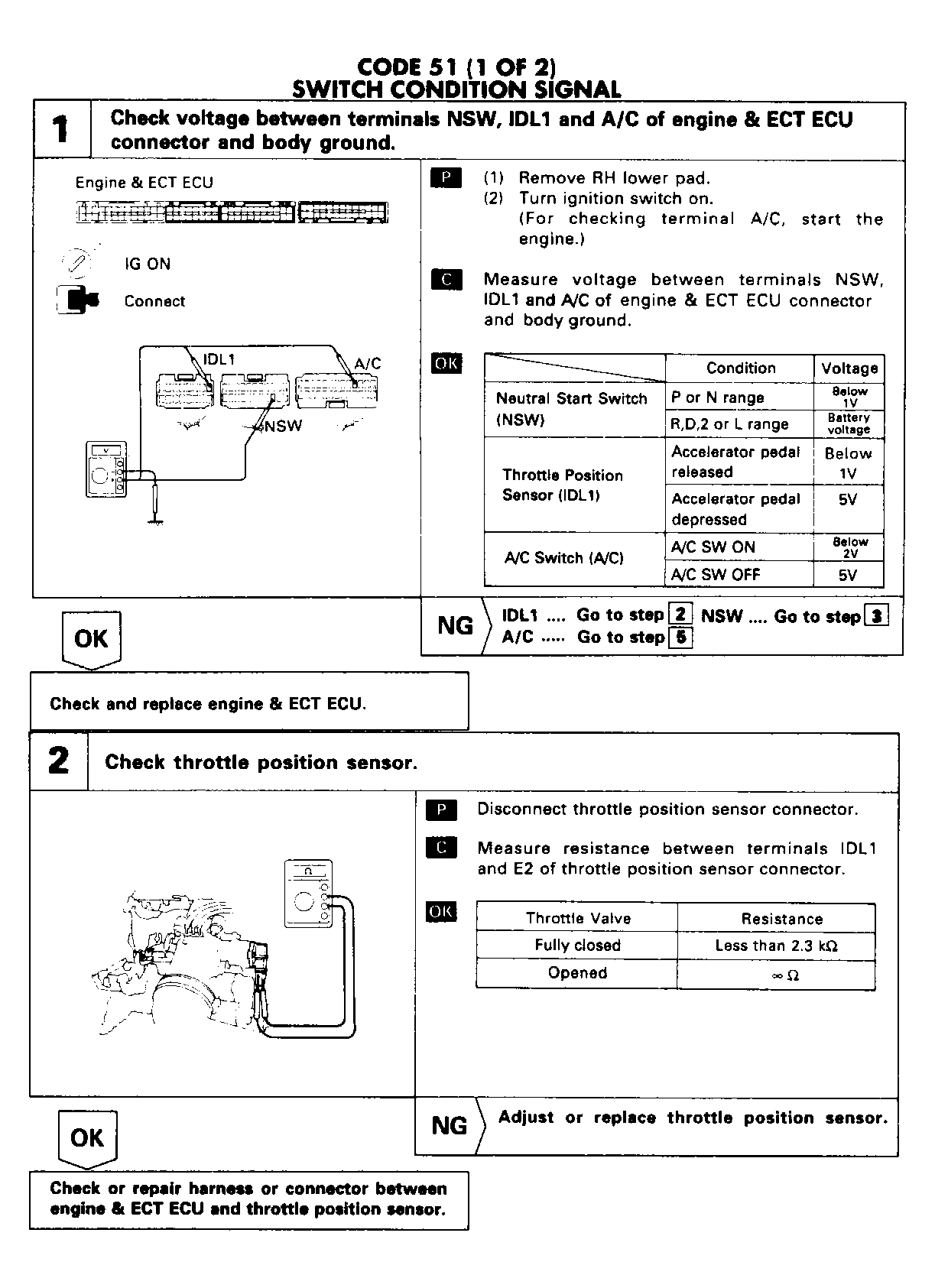

Fig 1: Code 51: Switch Condition Signal Chart (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

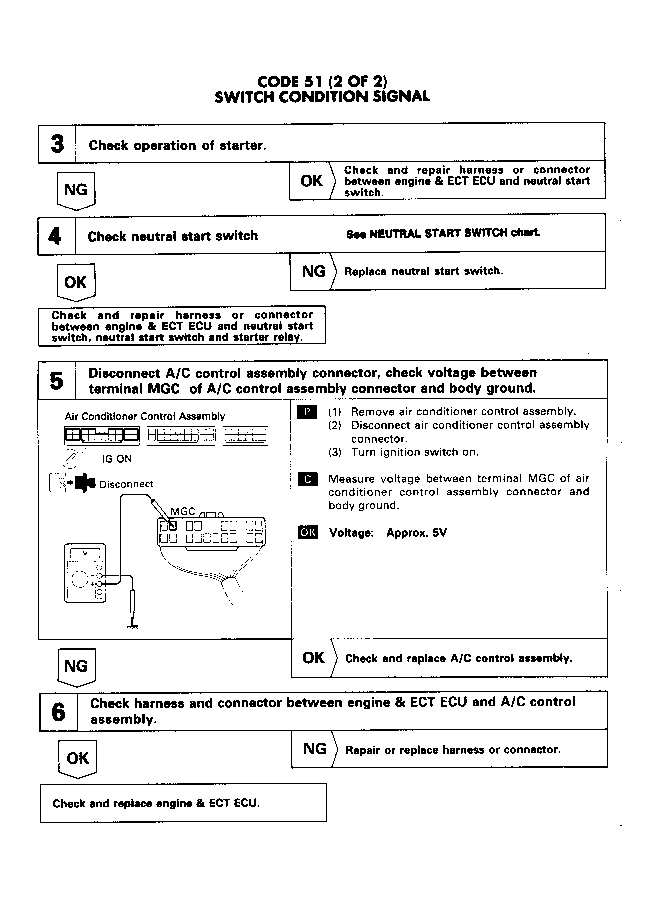

Fig 2: Code 51: Switch Condition Signal Chart (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
