Code 67: Overdrive Direct Clutch Speed Sensor Signal
Code 67: Overdrive Direct Clutch Speed Sensor Signal

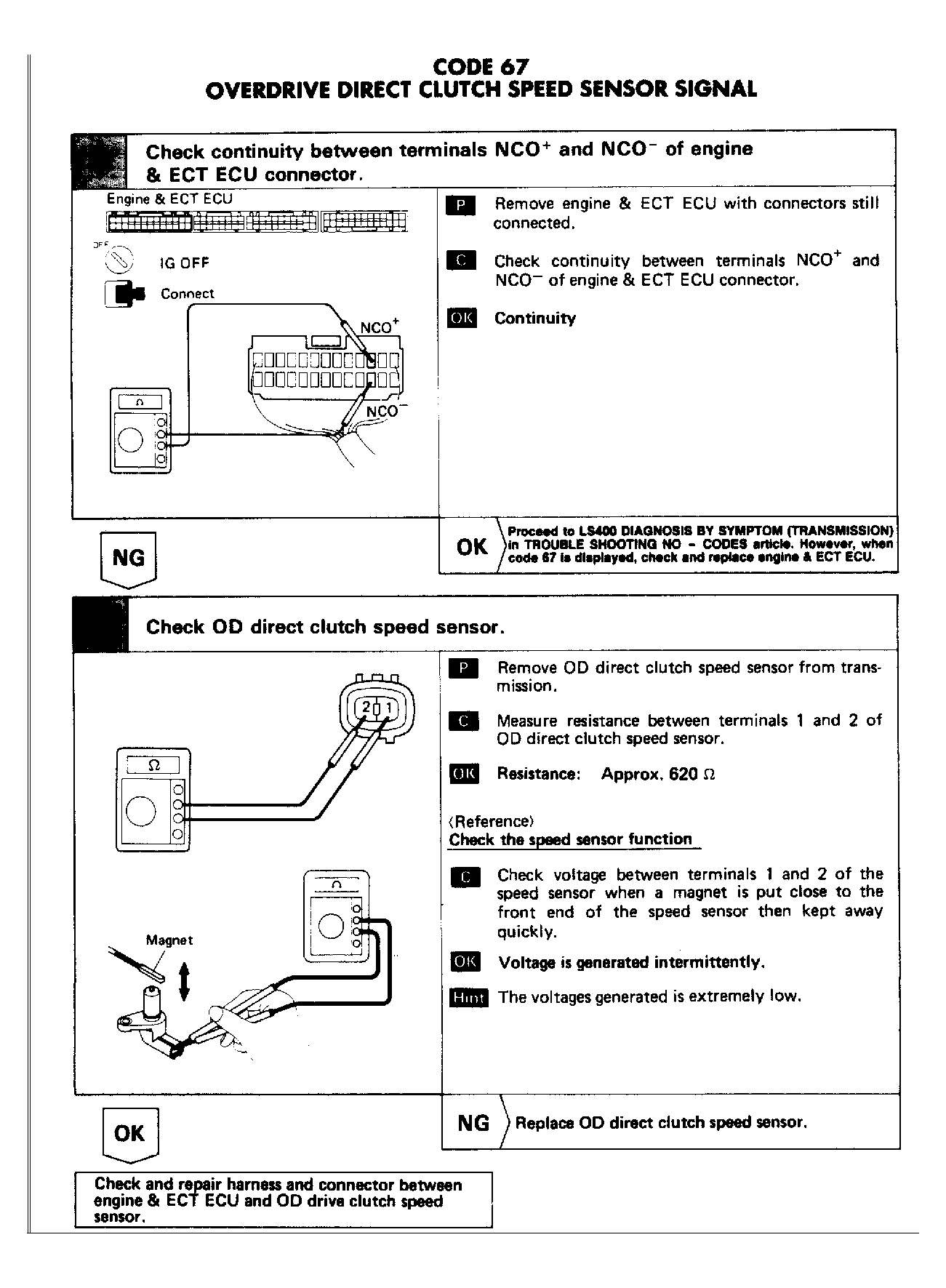

Fig 1: Code 67: Overdrive Direct Clutch Speed Sensor Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
