Code 68: KICKDOWN Switch Signal
Code 68: KICKDOWN Switch Signal

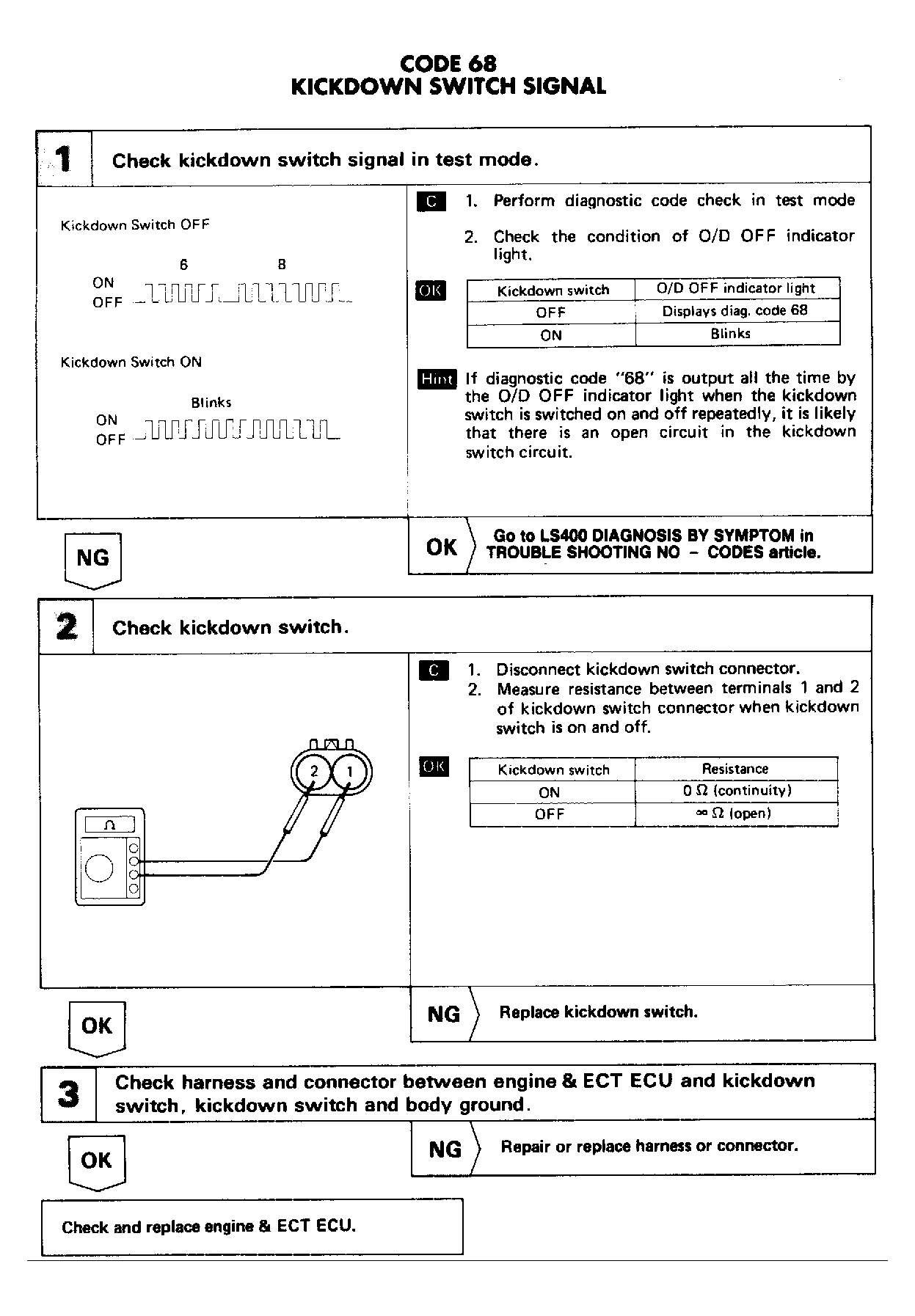

Fig 1: Code 68: Kickdown Switch Signal Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
