Fuel Pressure Control Vacuum Switching Valve (VSV) Circuit

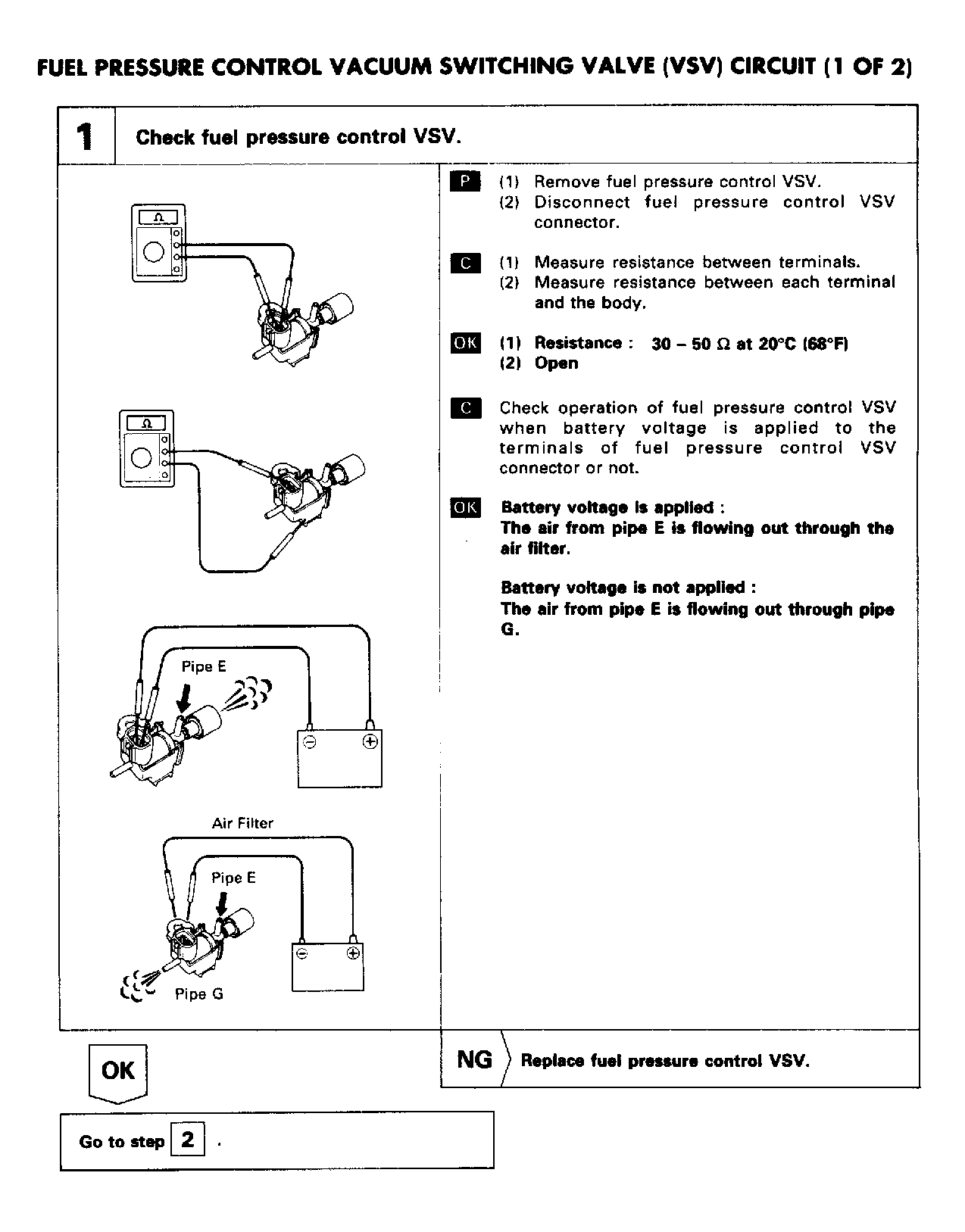

Fig 1: Fuel Pressure Control VSV Circuit (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

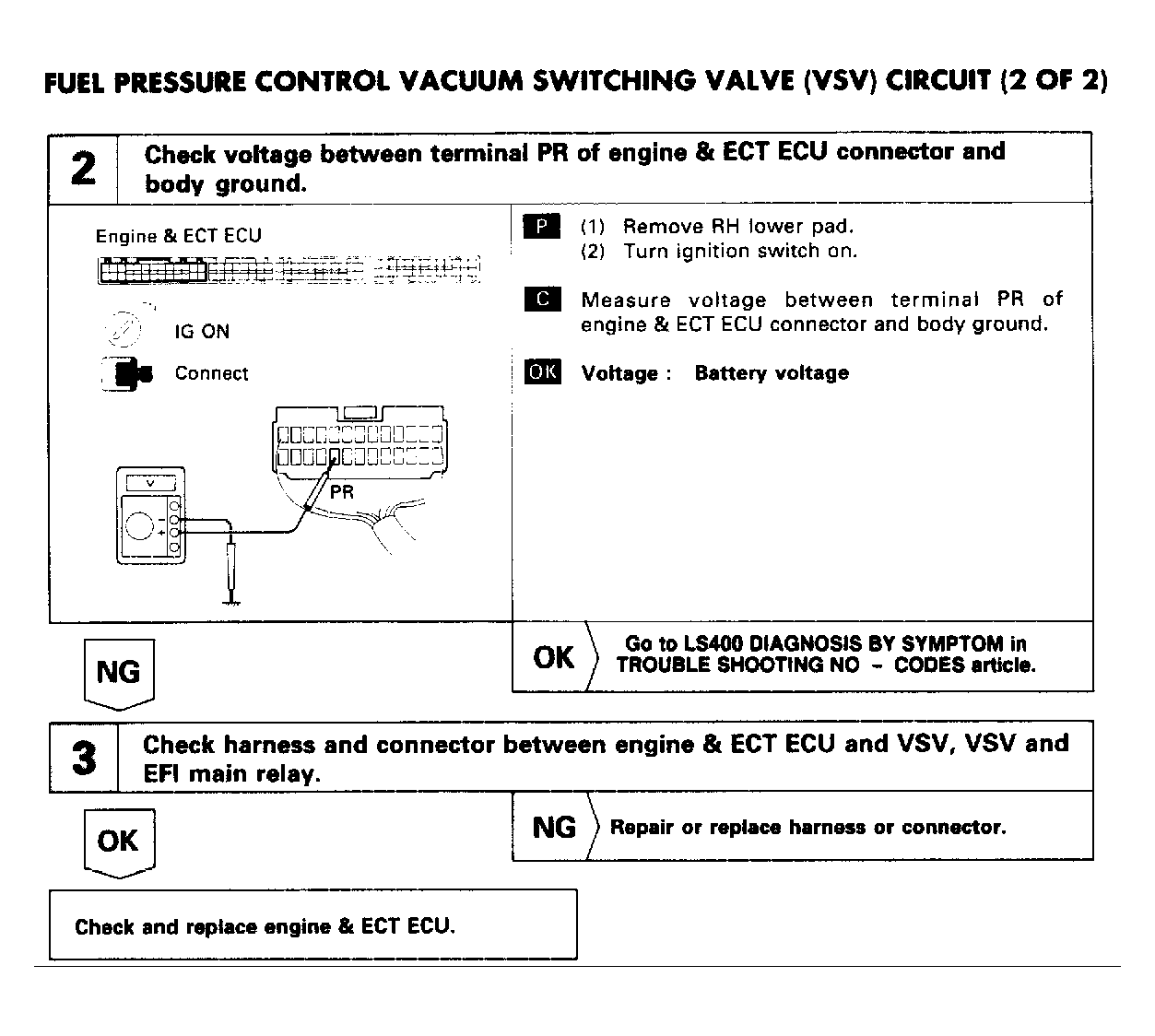

Fig 2: Fuel Pressure Control VSV Circuit (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
