Idle Speed Control (ISC) Valve Circuit
Idle Speed Control (ISC) Valve Circuit

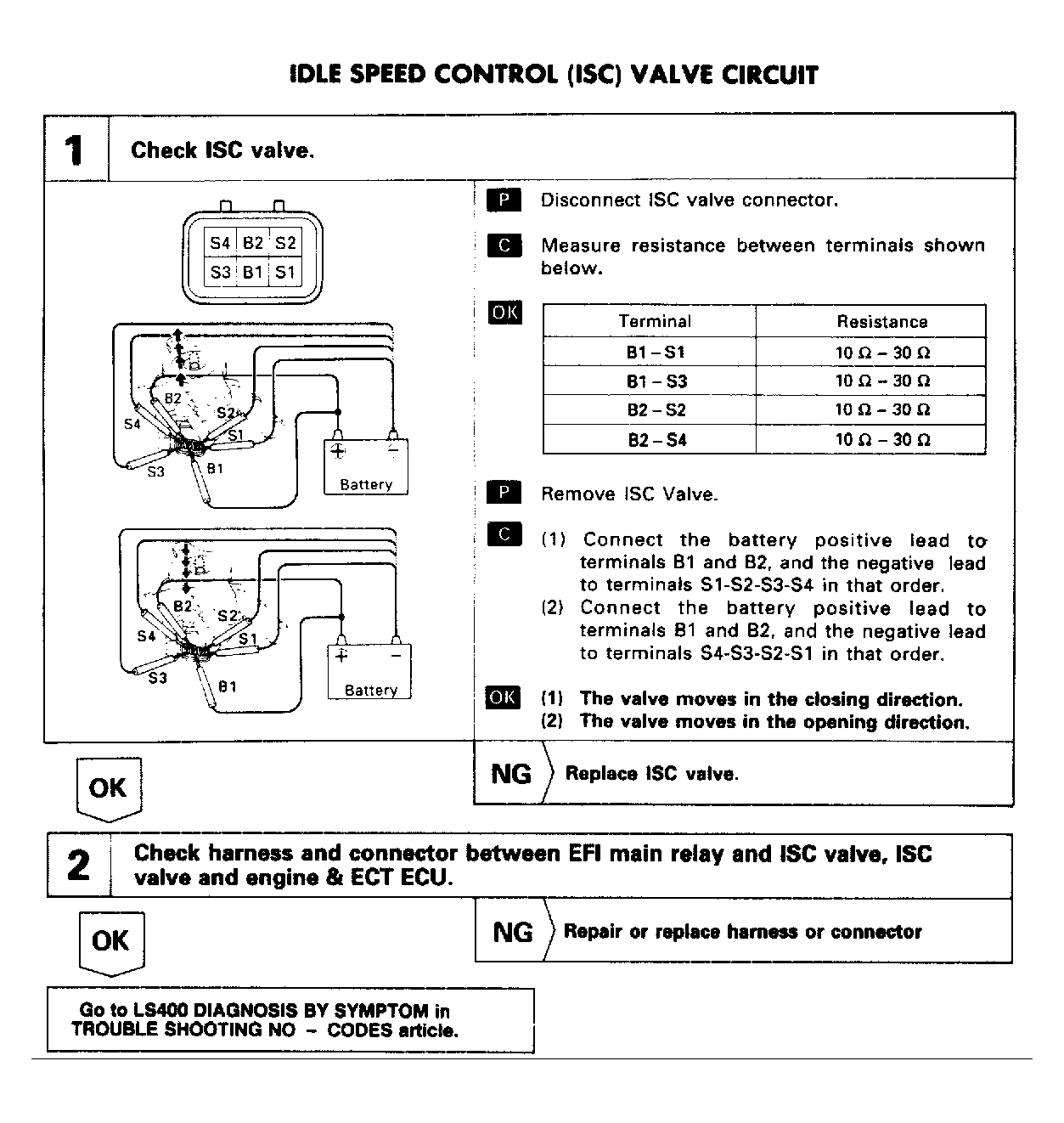

Fig 1: ISC Valve Circuit Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
