Neutral Start Switch Circuit

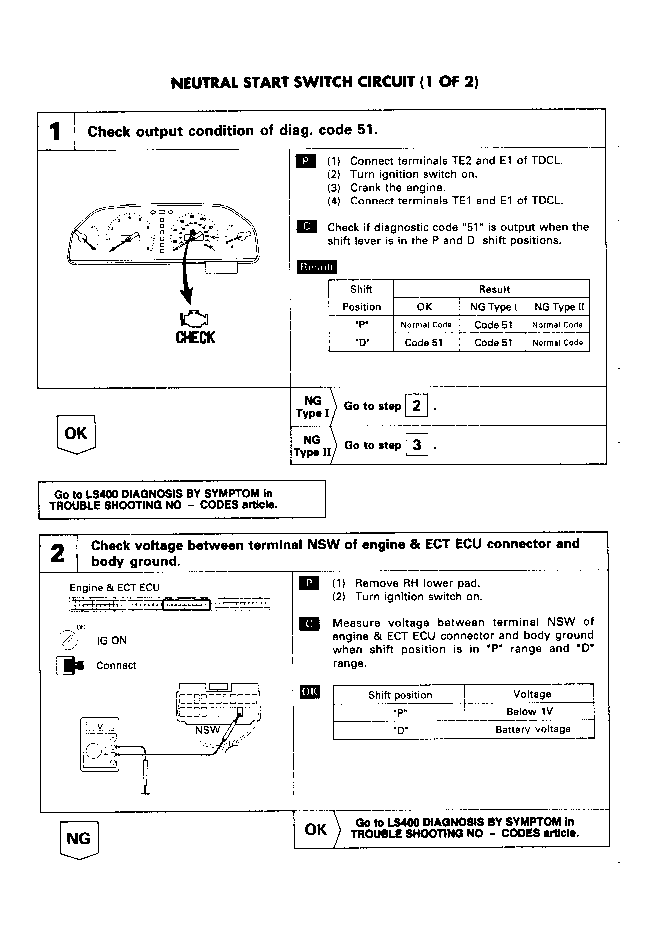

Fig 1: Neutral Start Switch Circuit Chart (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Neutral Start Switch Circuit Chart (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
