Od Cancel Signal Circuit
Od Cancel Signal Circuit

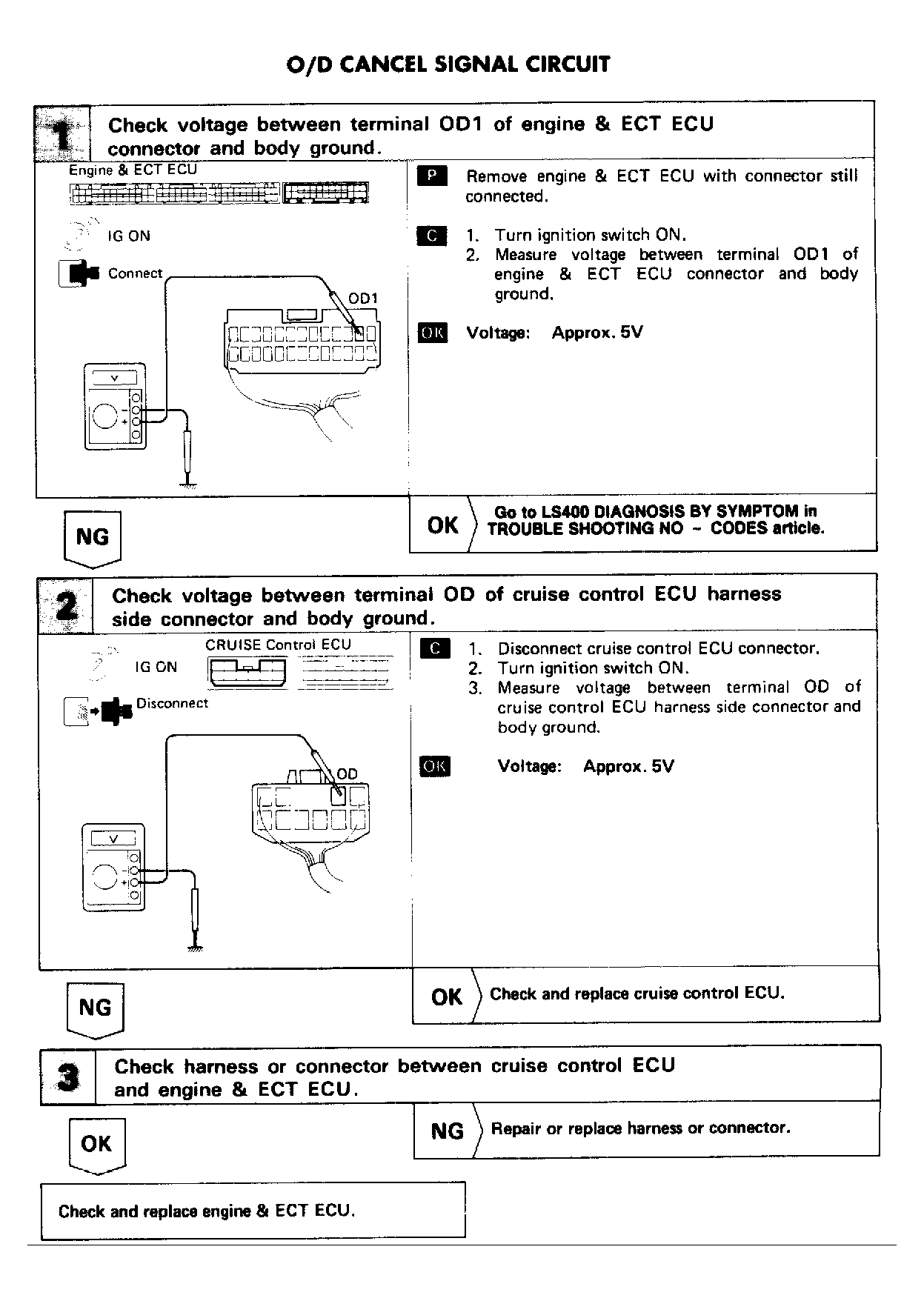

Fig 1: OD Cancel Signal Circuit Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
