Pattern Select Switch Circuit
Pattern Select Switch Circuit

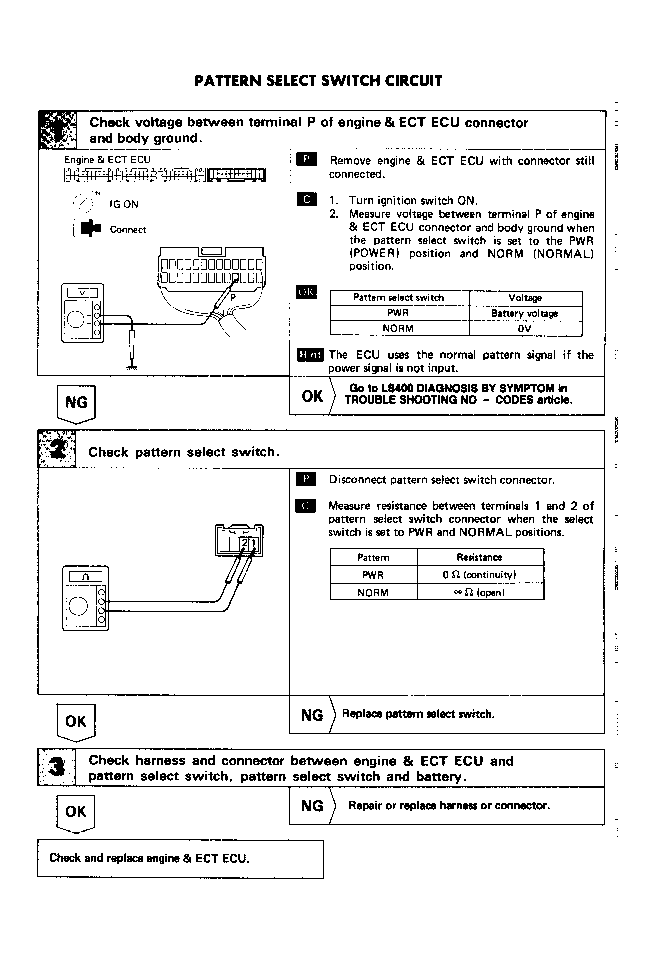

Fig 1: Pattern Select Switch Circuit Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
