Terminal Te1 & Te2 Circuit Diagnosis

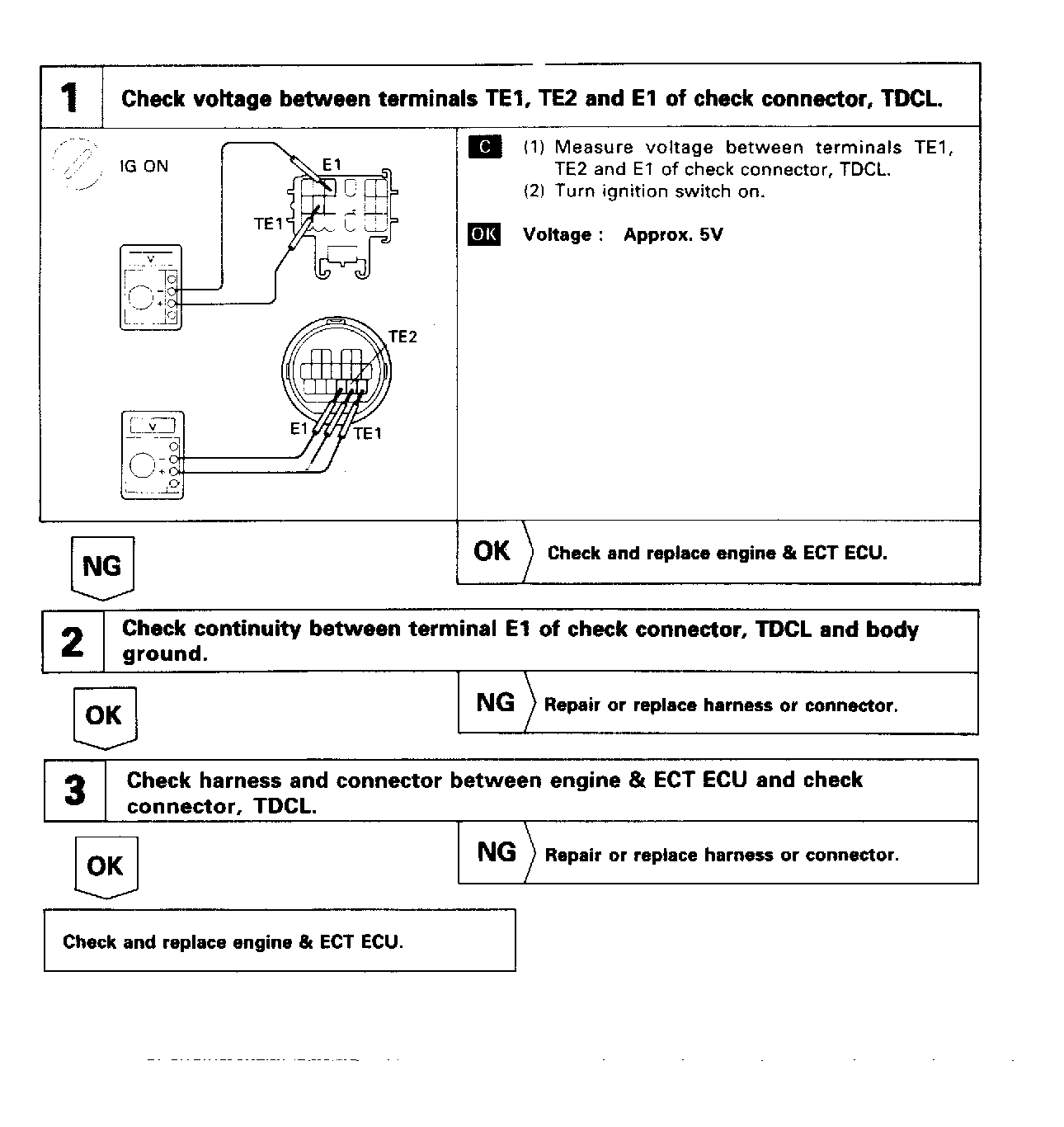

Fig 1: Terminal TE1 & TE2 Circuit Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
