Component Location
Component Location
Fig 1: Exploded View Of Manual Telescopic Steering Column
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

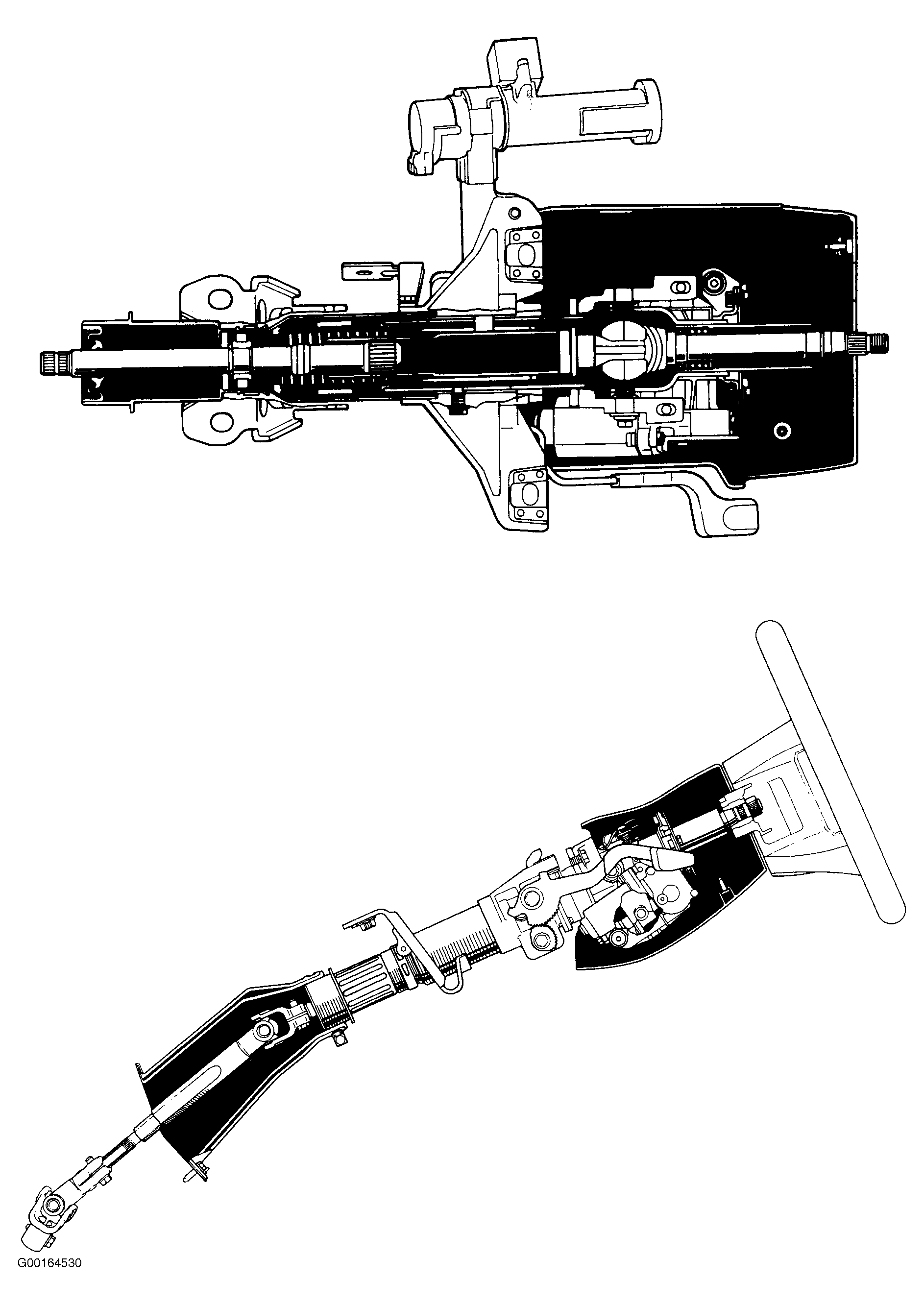

Fig 2: Sectional View Of Manual Telescopic Steering Column
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

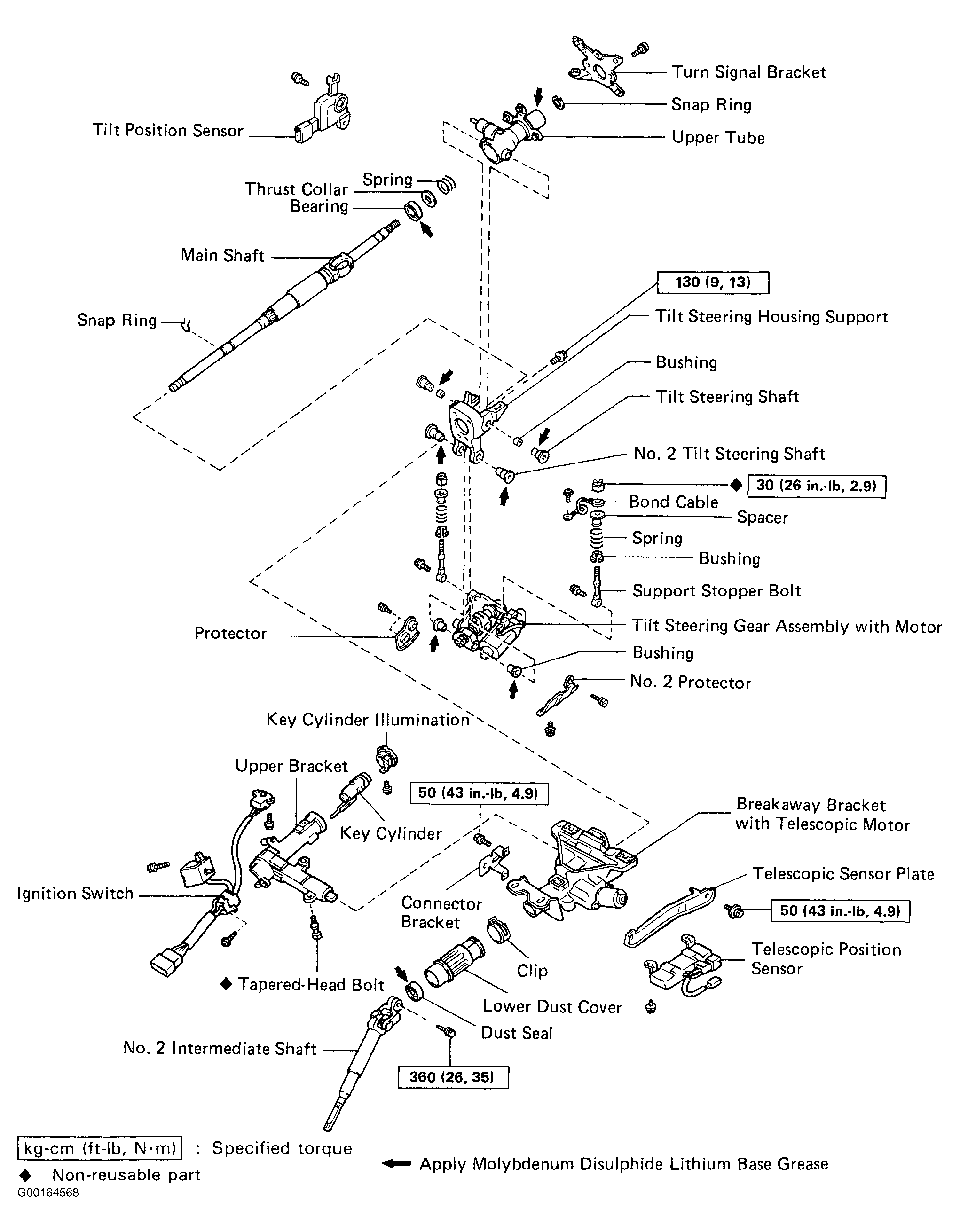

Fig 3: Exploded View Of Power Telescopic Steering Column
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

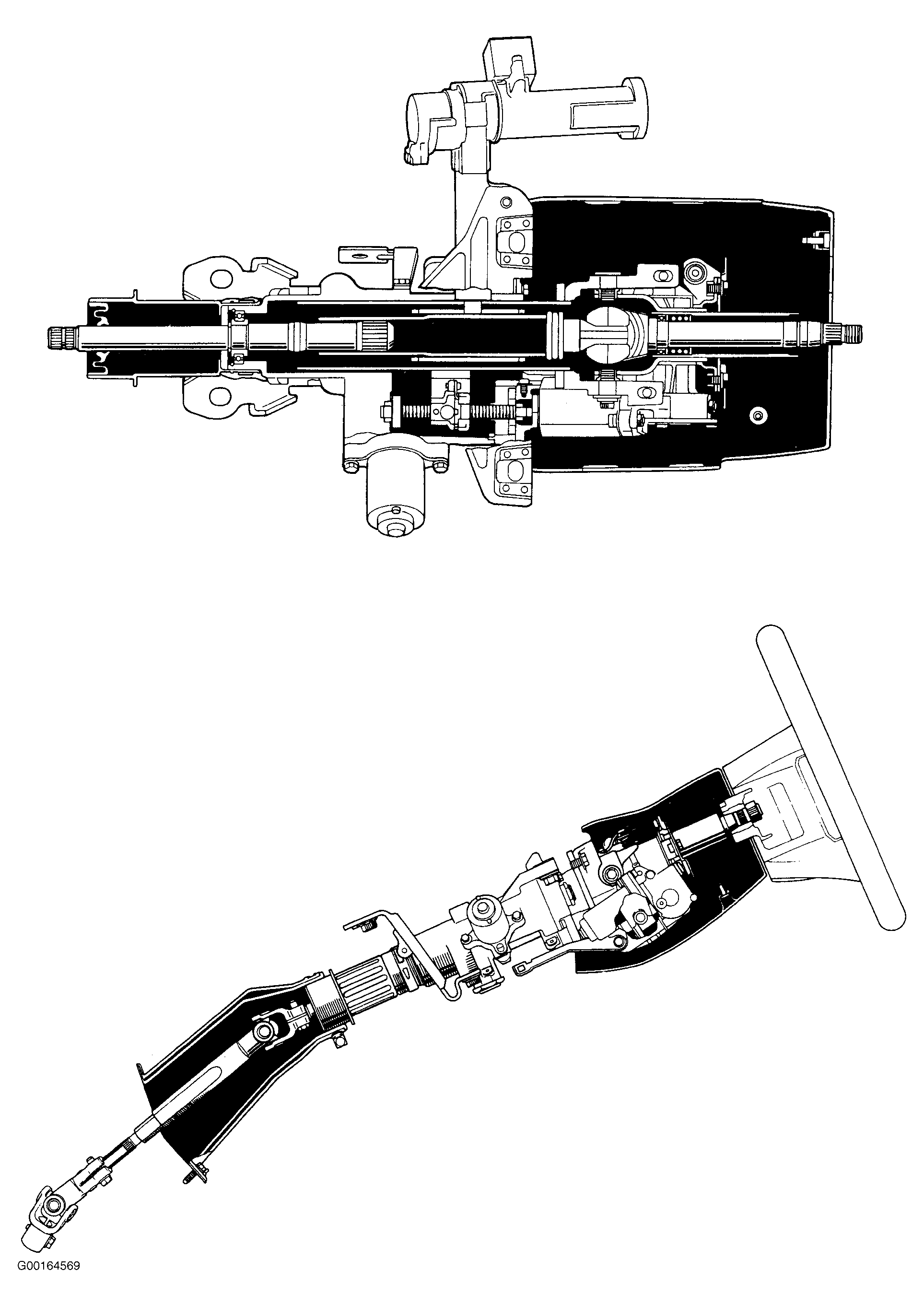

Fig 4: Sectional View Of Power Telescopic Steering Column
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
