Anti-Lock Warning Light Circuit

If the ECU detects trouble, it lights the ANTI-LOCK warning light while at the same time prohibiting ABS control. At this time, the ECU records a diagnostic code in memory. When the service connector is disconnected and TDCL is connected, it causes the ANTI-LOCK warning light to flash, displaying the diagnostic code.

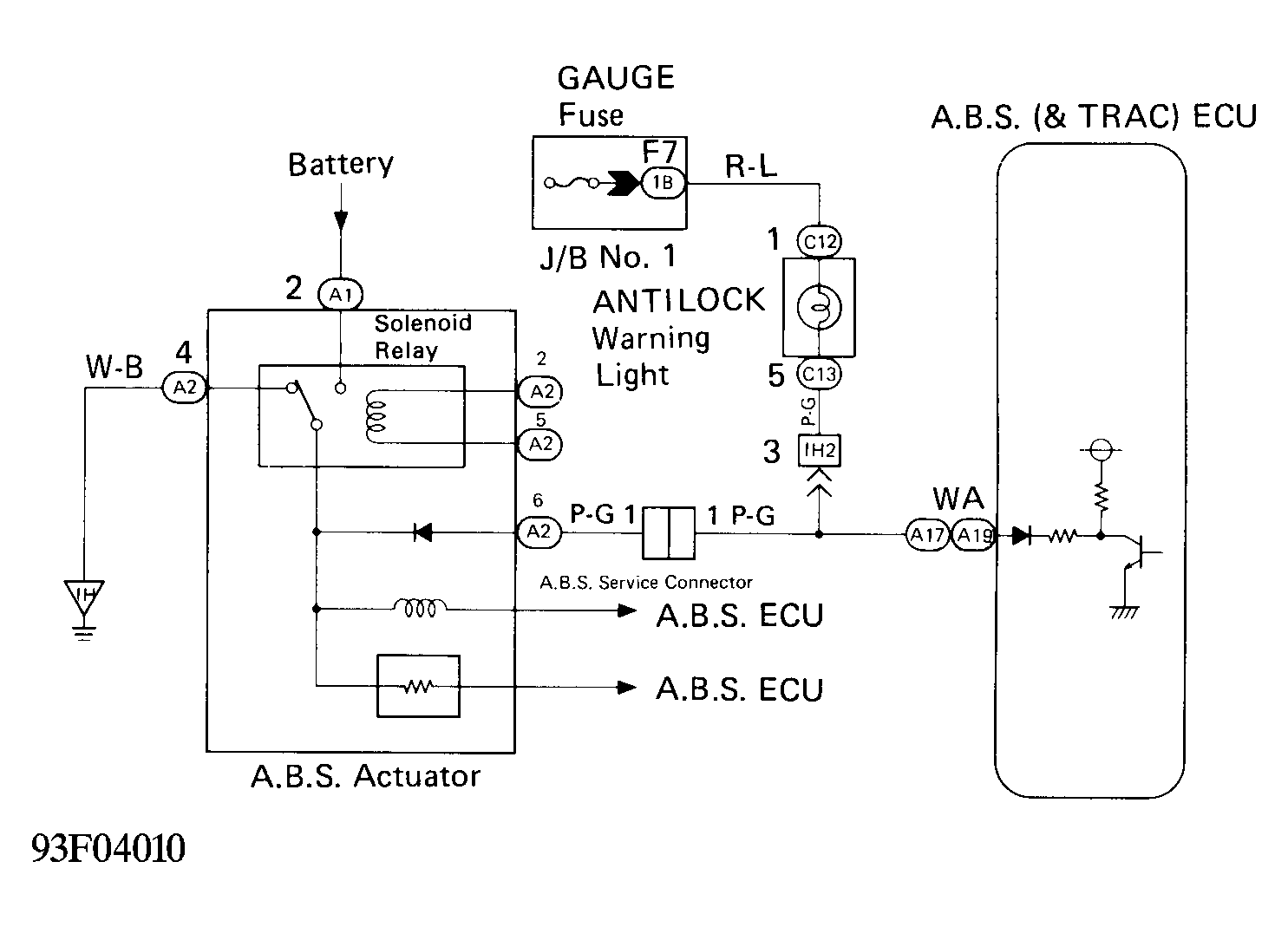

Fig 1: Anti-Lock Warning Light Circuit Wiring Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

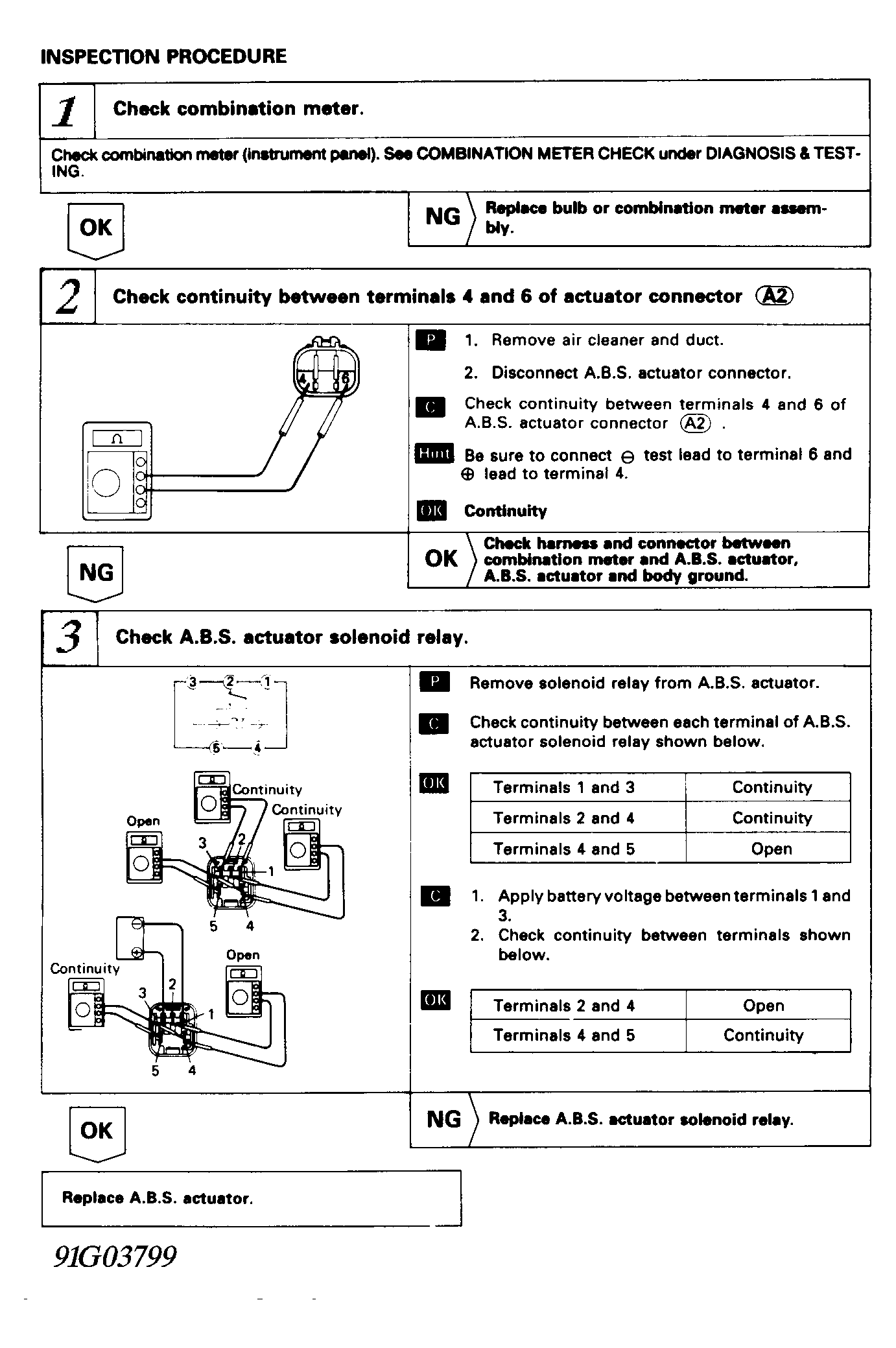

Fig 2: Anti-Lock Warning Light Circuit Check (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

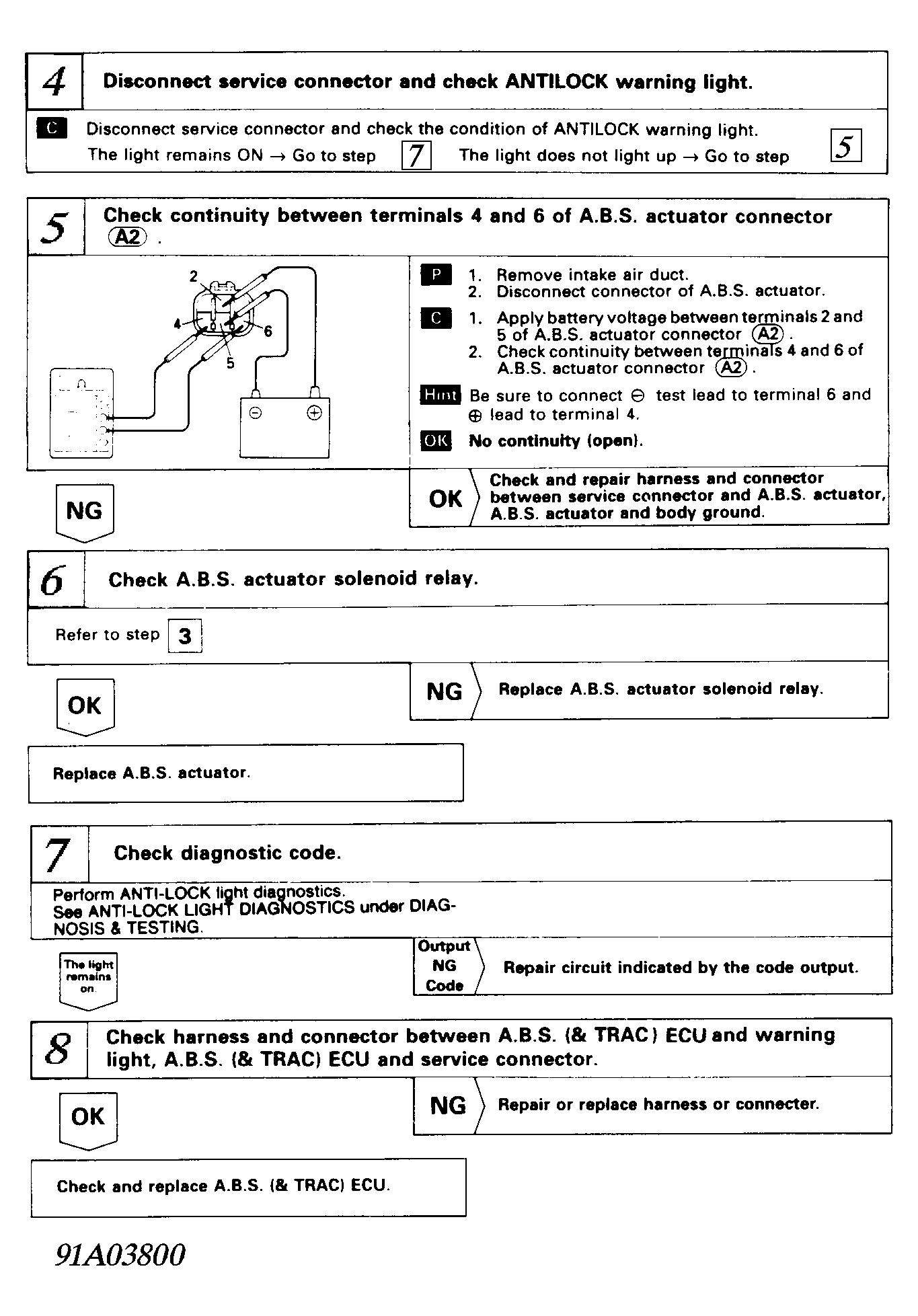

Fig 3: Anti-Lock Warning Light Circuit Check (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
