Anti-Lock Brake System: Wiring Diagram

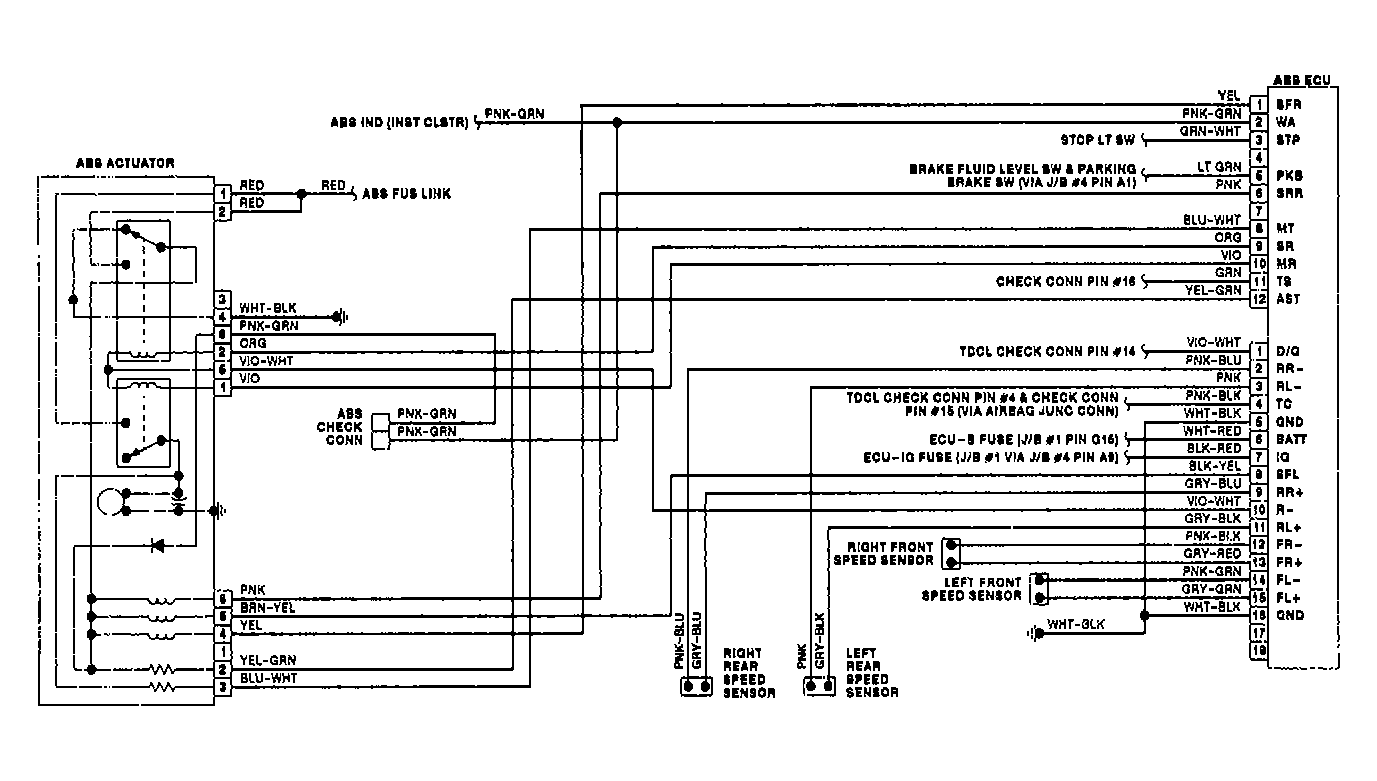

Fig 1: Anti-Lock Brake System Wiring Diagram (1990-91)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

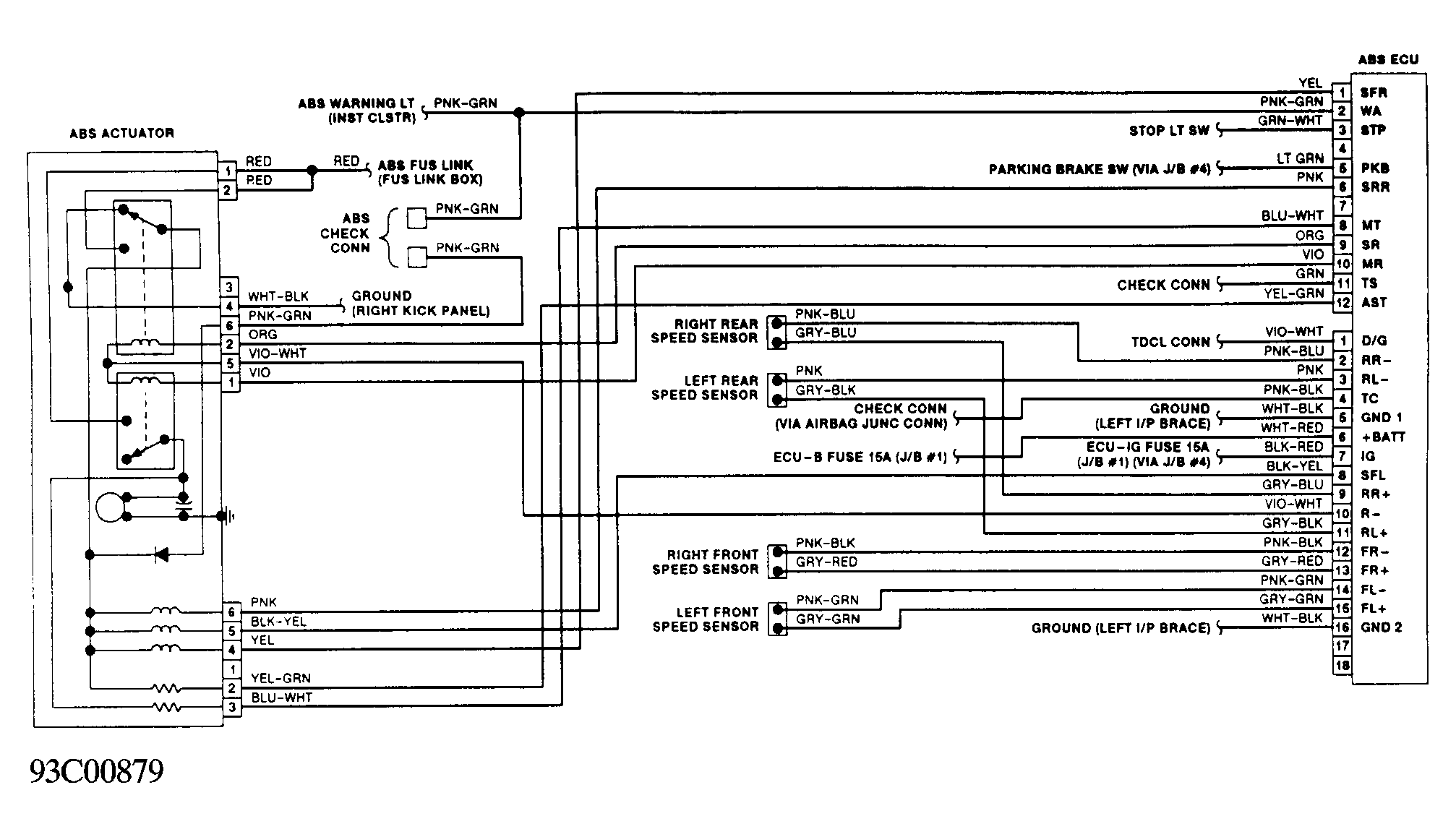

Fig 2: Anti-Lock Brake System Wiring Diagram (1992)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
