Temperature Switch Connector

1. Turn vehicle ignition ON.
2. Disconnect temperature switch connector located on left side of radiator. See Fig 1.
3. Fan should rotate.
4. If fan does not rotate, check fan relay, fan motor, ignition relay and fuse, and check for a short circuit between fan relay and temperature switch.

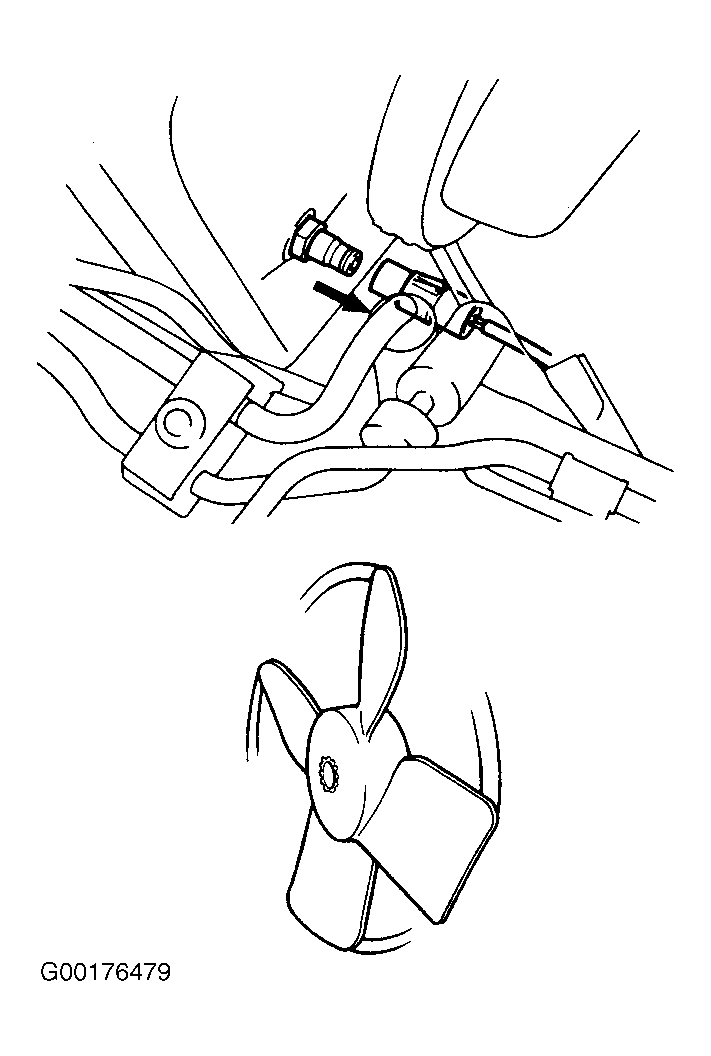

Fig 1: Removing Temperature Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
