Grid Filament Test
WARNING: This page is about a different car, the 1992 Lexus SC 400, 1992 Lexus SC 300, 1992 Lexus LS 400, and 1992 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When testing grid wires with voltmeter, wrap aluminum foil around end of test probe, then press foil to grid wire. This will prevent probe from damaging grid wire.

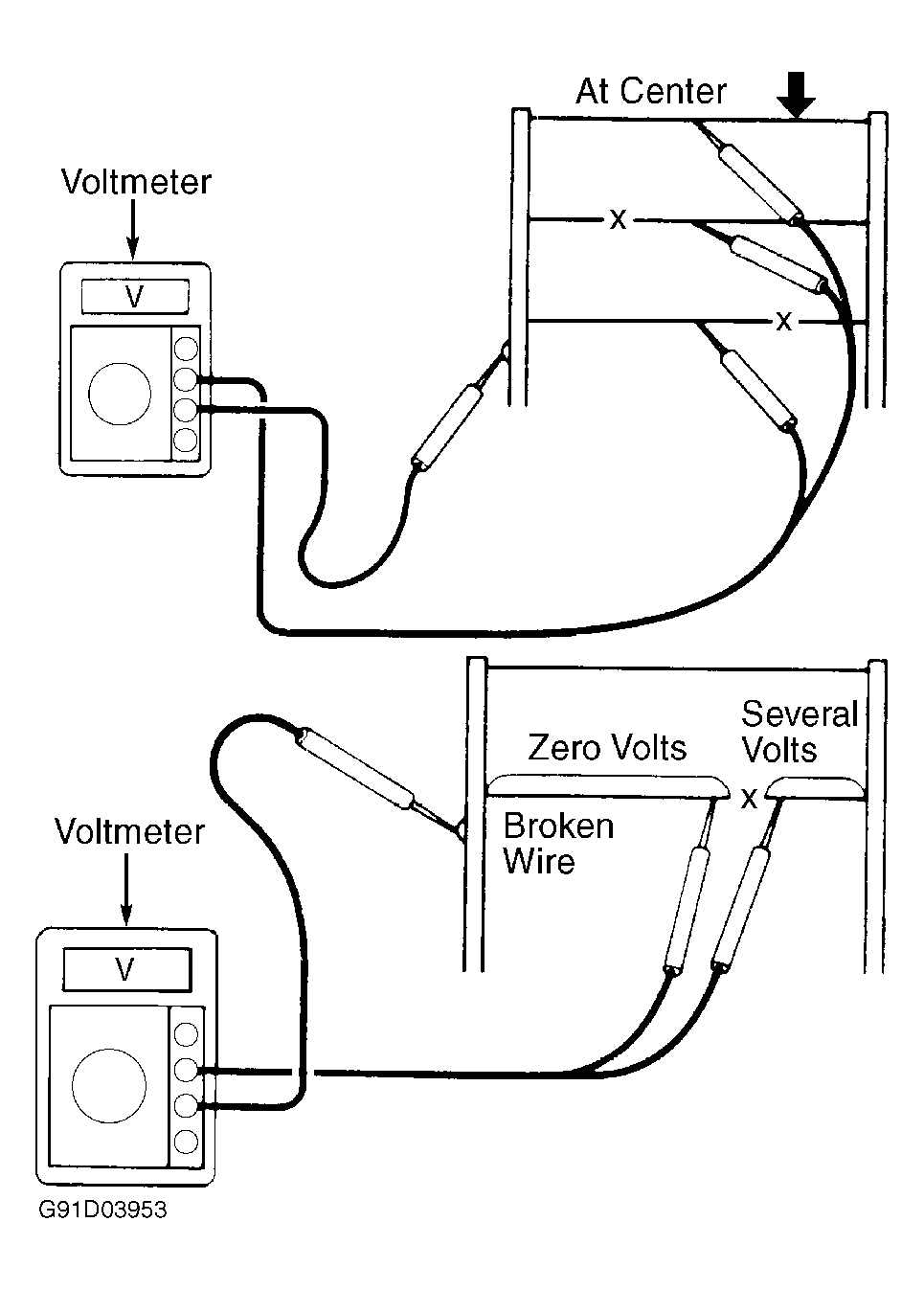

- To locate breaks in grid wire filaments, attach a voltmeter to middle portion of each filament. Attach other meter probe to vertical section of window grid. See Fig 1.
- If a grid is broken, meter will register zero volts or about 10 volts, depending on if grid is broken between or outside test leads. If wire is unbroken, meter will register about 5 volts. To locate break, move probe along wire until voltage changes abruptly.
