Steering Columns: Overhaul

NOTE: For exploded view of steering column, see Fig 1, Fig 2 or Fig 3.

NOTE: The following figures are Courtesy of Toyota Motor Sales, U.S.A., Inc.

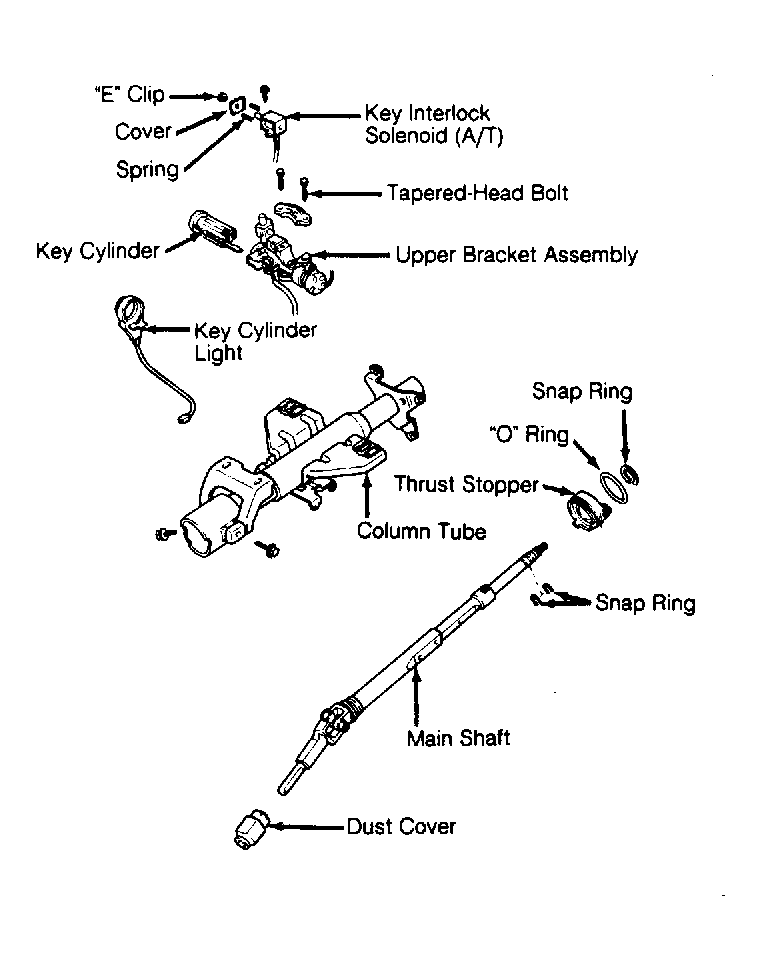

Fig 1: Exploded View of Steering Column (ES250)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

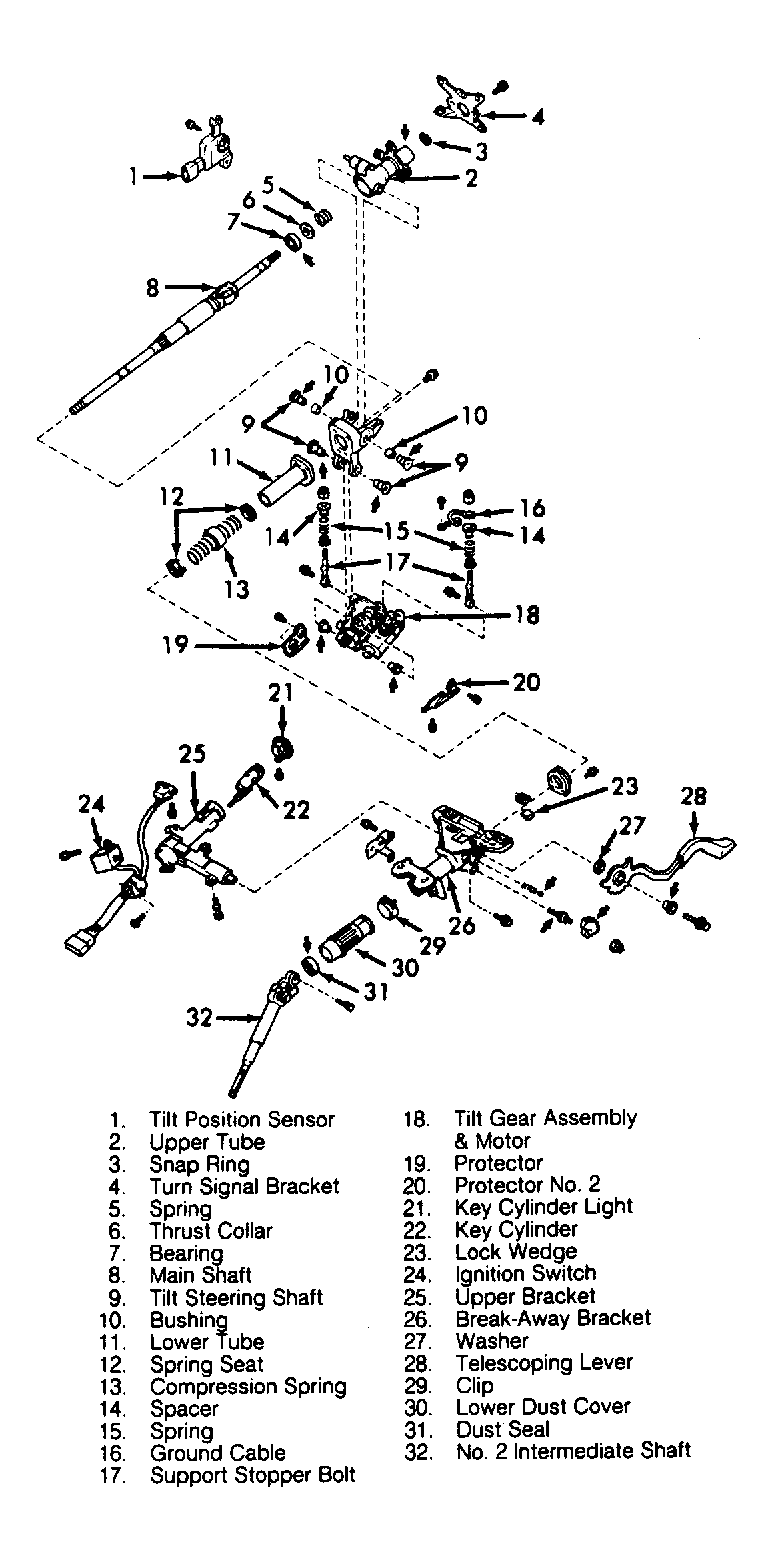

Fig 2: Exploded View of Power Tilt/Manual Telescoping Steering Column (LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

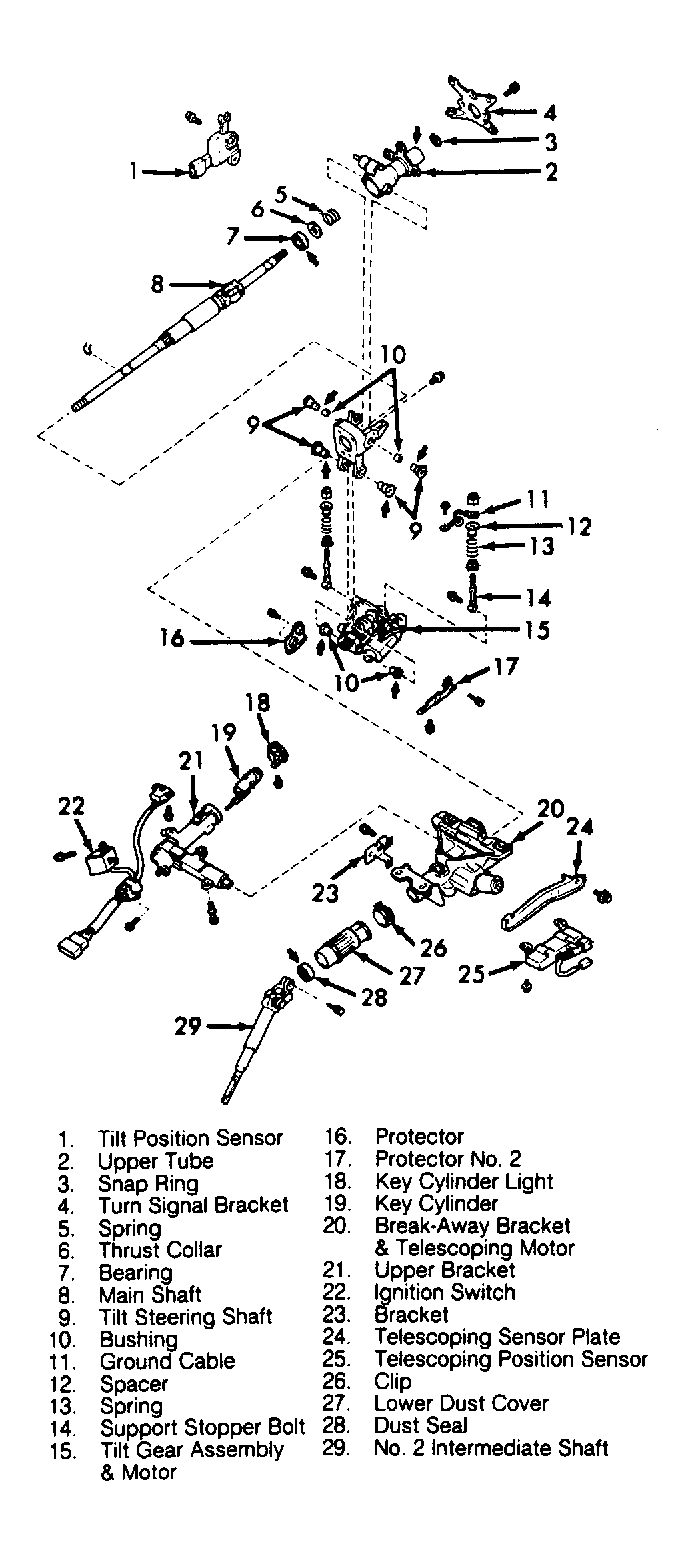

Fig 3: Exploded View of Power Tilt/Telescoping Steering Column (LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
