Neutral/Start Switch Input Signal Check
- Perform INPUT SIGNAL CHECK under TROUBLE SHOOTING. When shifting into Park or Neutral, indicator light should go off (ES300, SC300 and SC400) or indicator light should generate an 8-pulse signal (LS400).

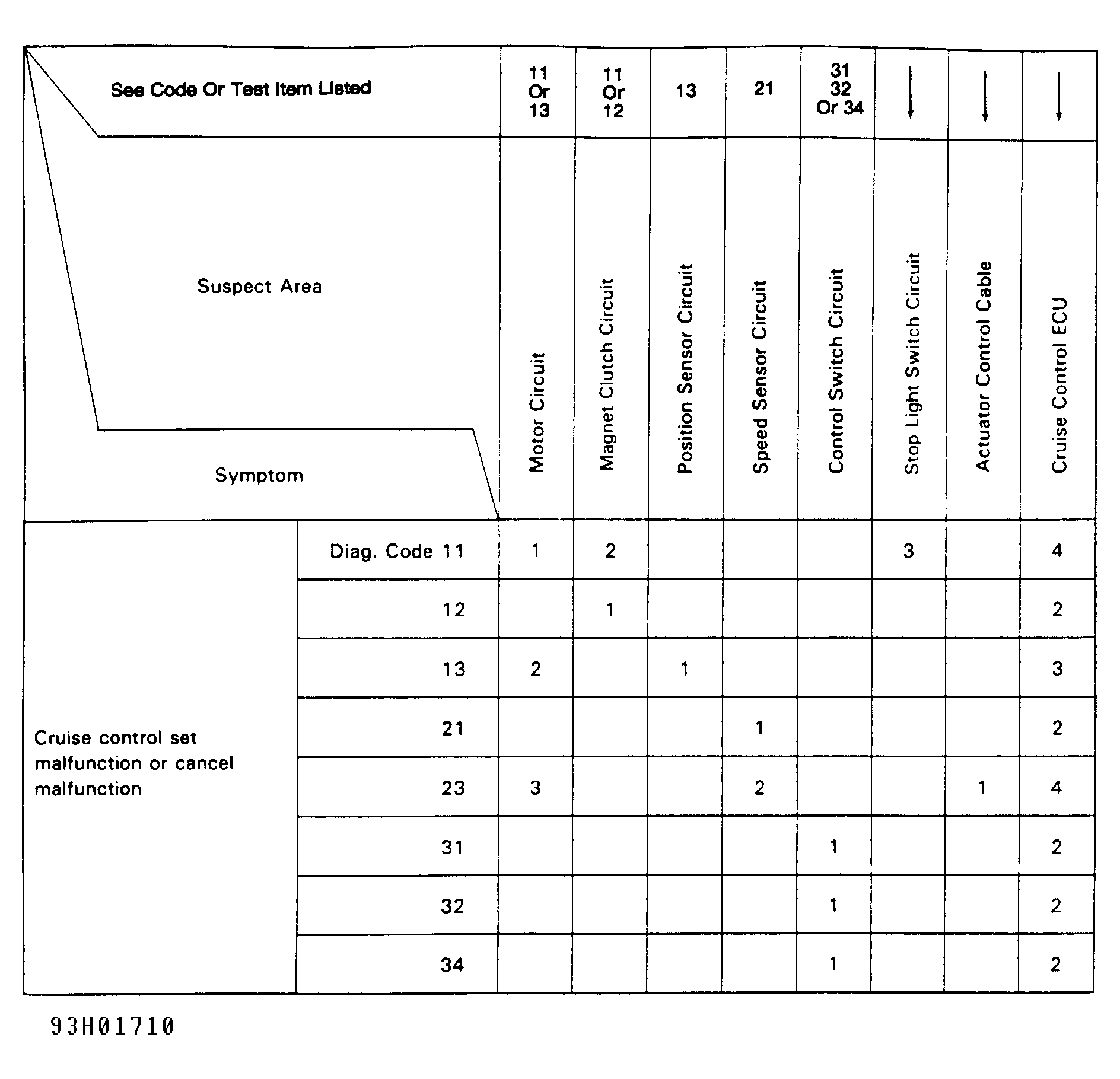

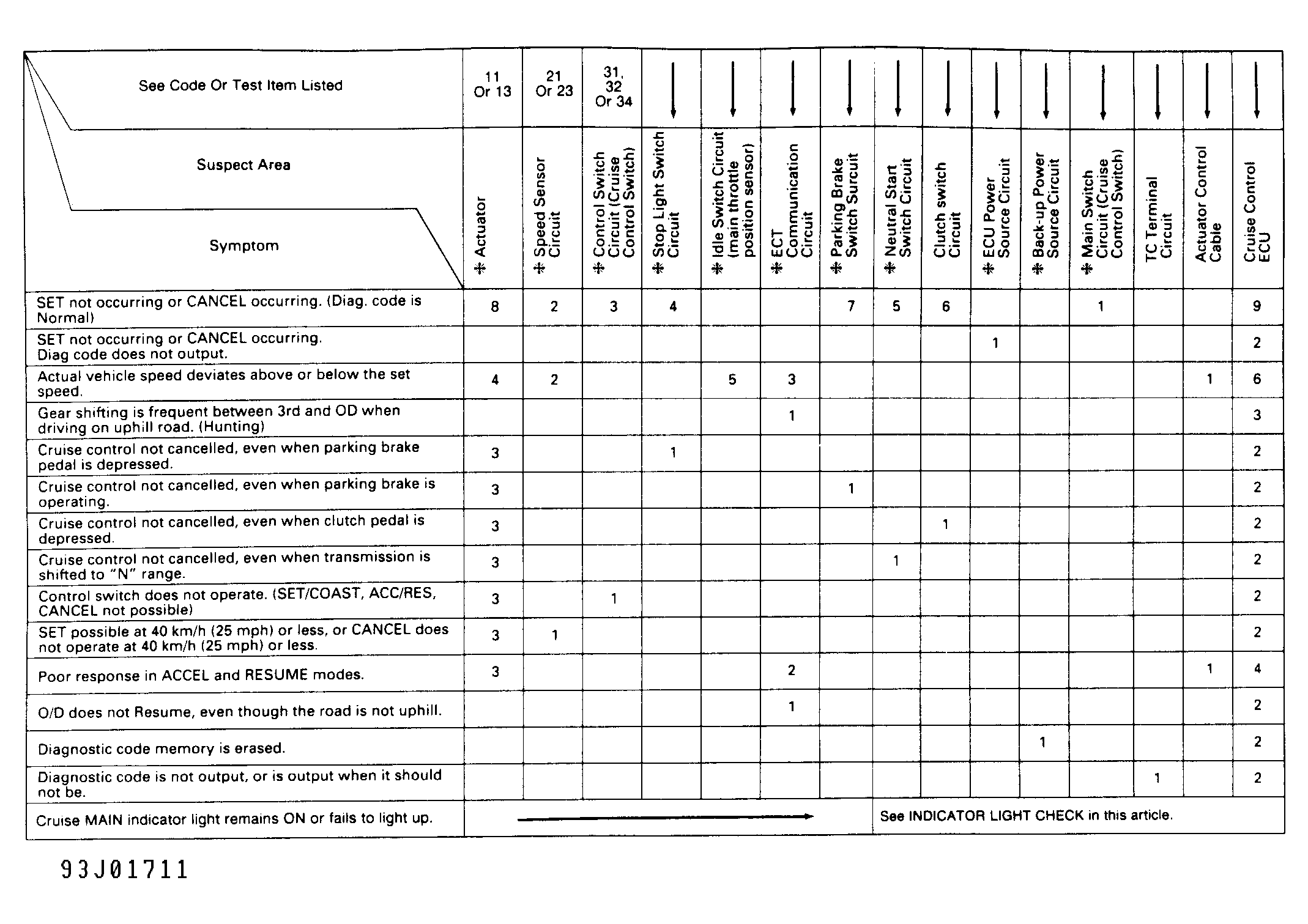

- If indicator light functions as described, go to next inspection item shown on matrix chart. See Figure, Figure or Figure . If indicator light does not function as described, go to NEUTRAL START SWITCH CIRCUIT VOLTAGE CHECK below.
