Component Locations

Component	Location
DOME Fuse	In junction block No. 2. See Figure.
Door Open & Unlock Detection Switches	Mounted on door lock motors. See Fig 2.

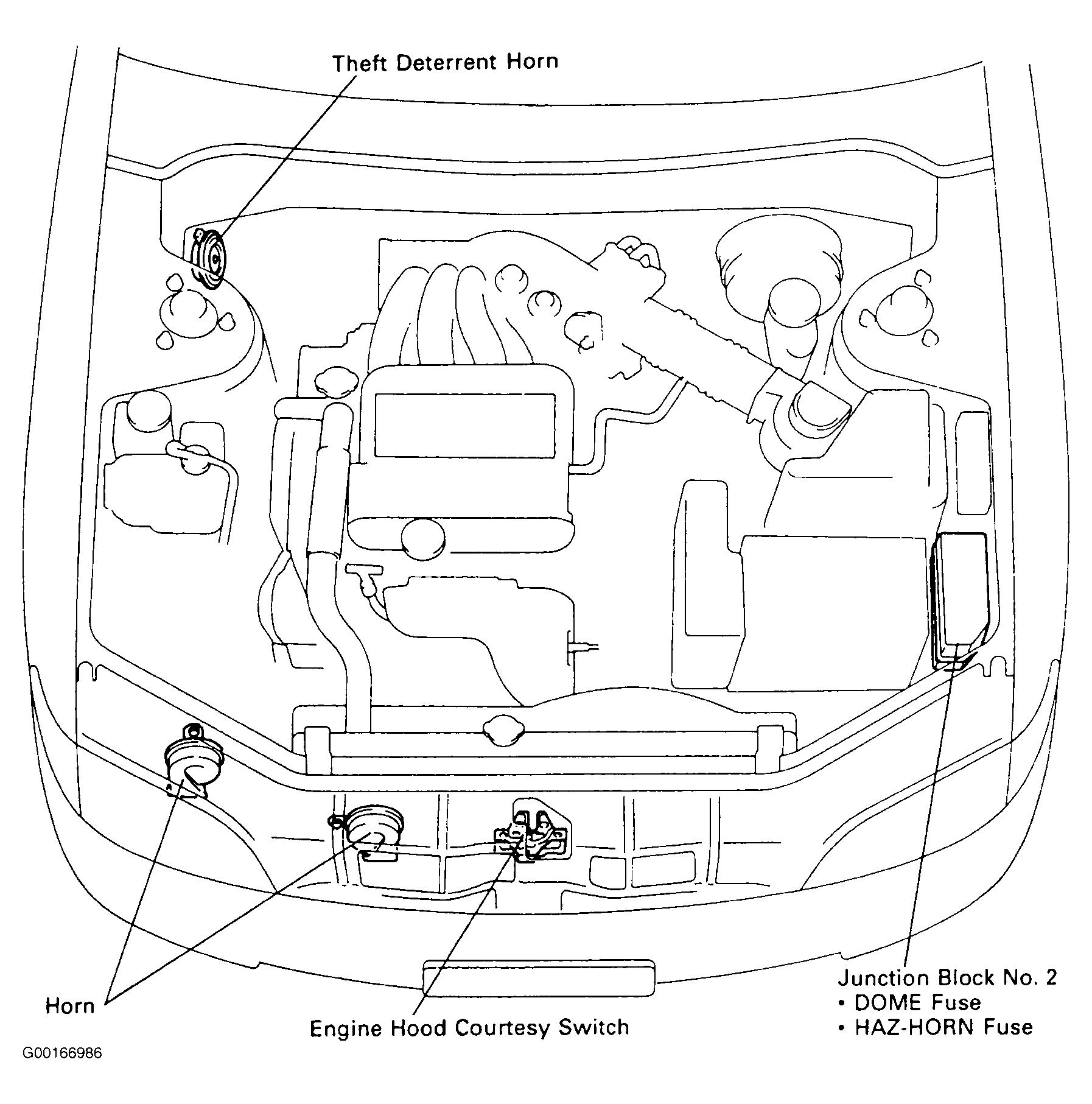

Engine Hood Courtesy Switch	At hood latch. See Fig 1.
HAZ-HORN Fuse	In junction block No. 2. See Figure.

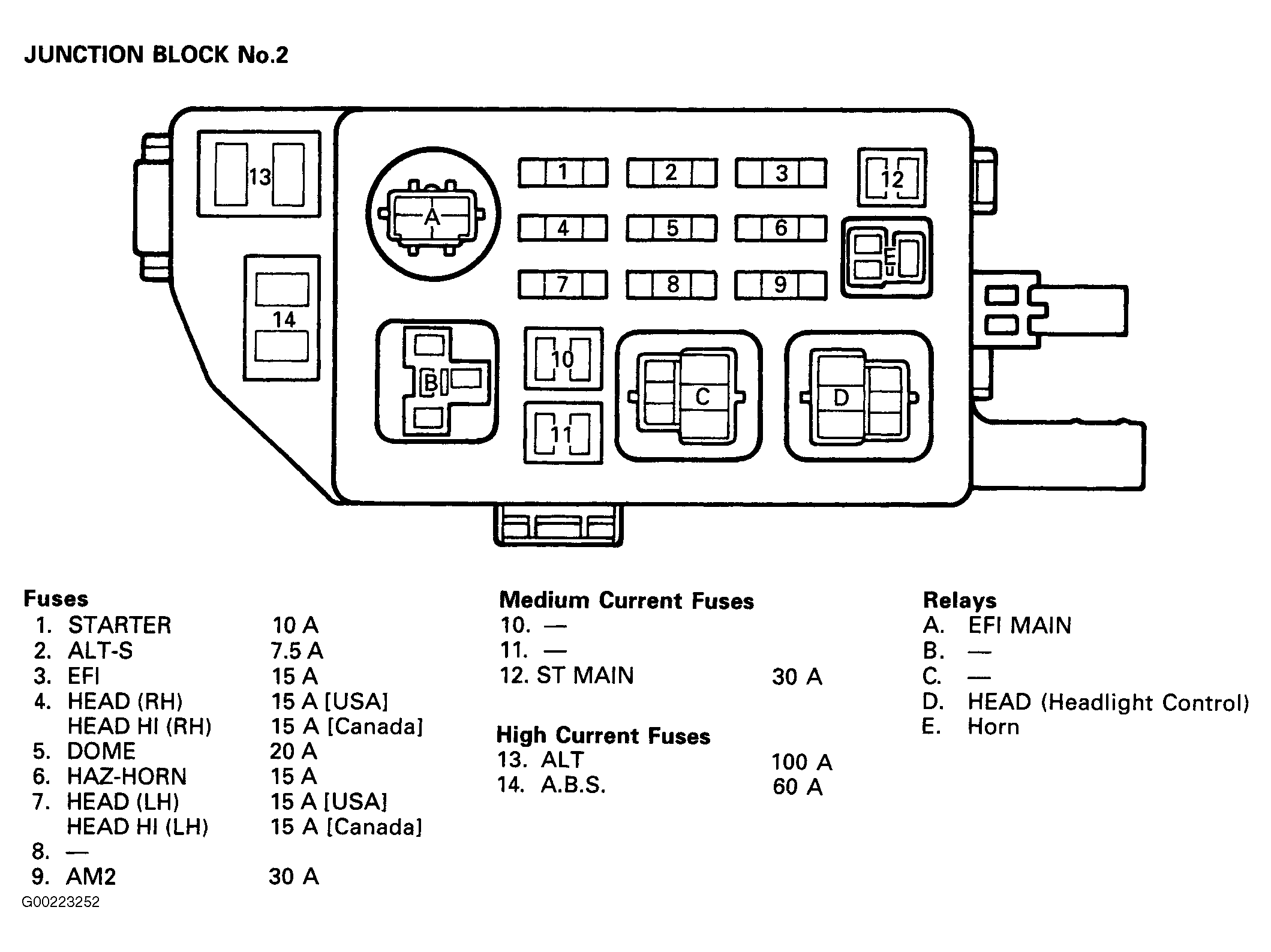

Headlight Control Relay	In junction block No. 2. See Fig 5.
Horn Relay	In junction block No. 2. See Fig 5.
Integration Relay	Behind lower left side of instrument panel, to right of junction block No. 1

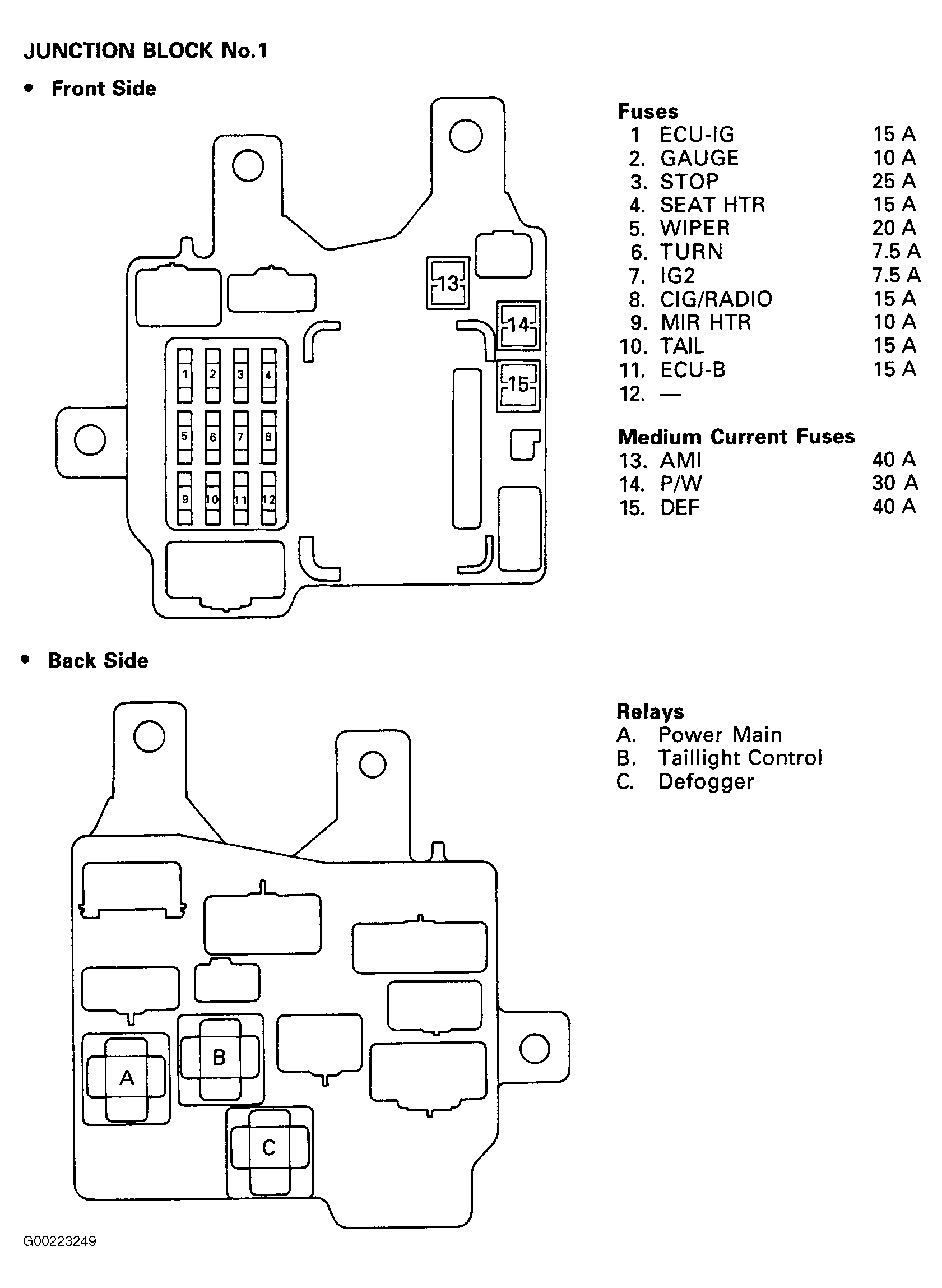

Junction Block No. 1	Behind lower left side of instrument panel. See Fig 2.
Junction Block No. 2	In left front corner of engine compartment. See Fig 1& Fig 4.
POWER (P/W) Fuse	In junction block No. 1. See Fig 2.
Power Main Relay	On back of junction block No. 1. See Fig 3.

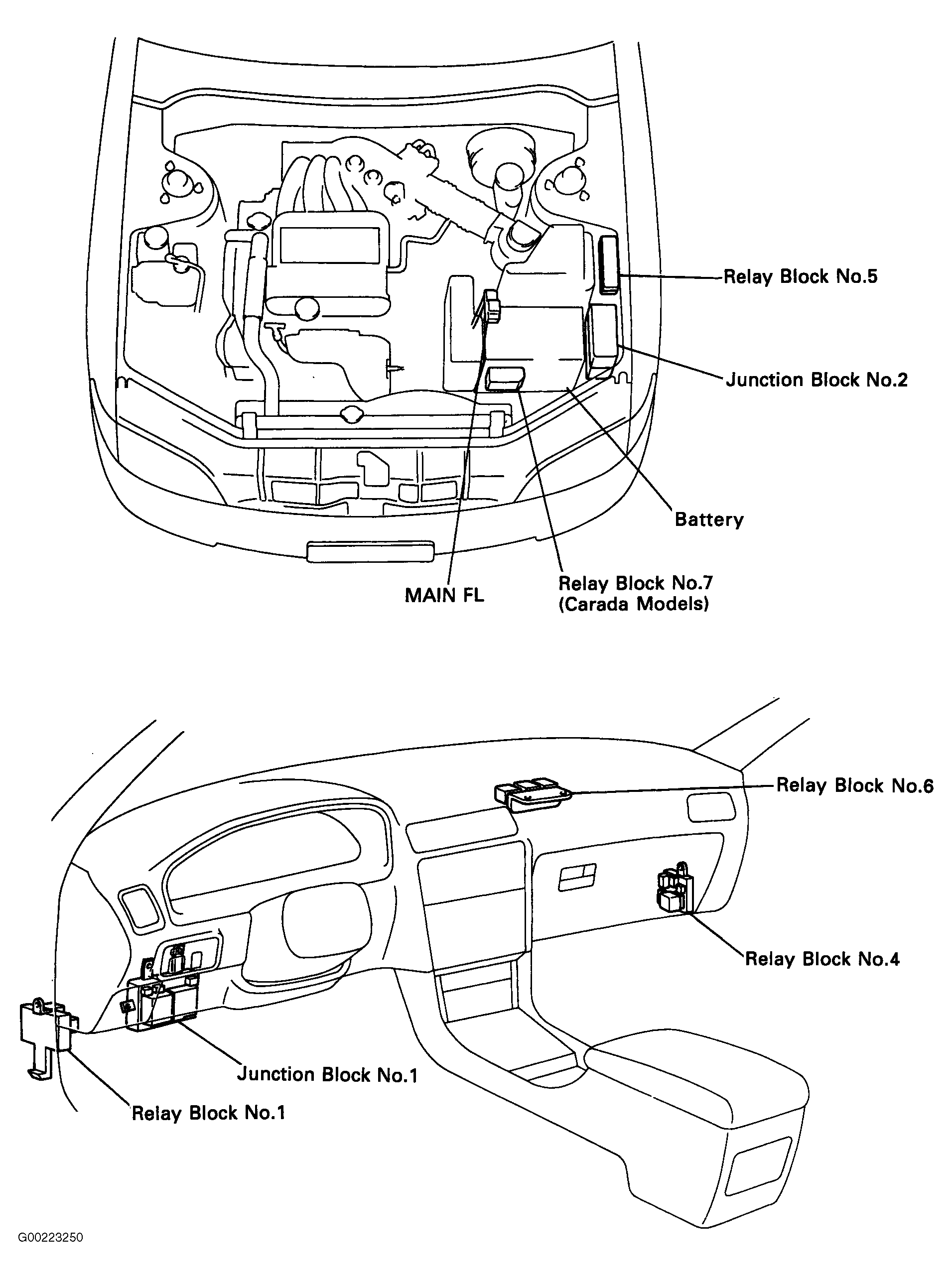

Relay Block No. 6	Above right side of instrument panel. See Fig 4.

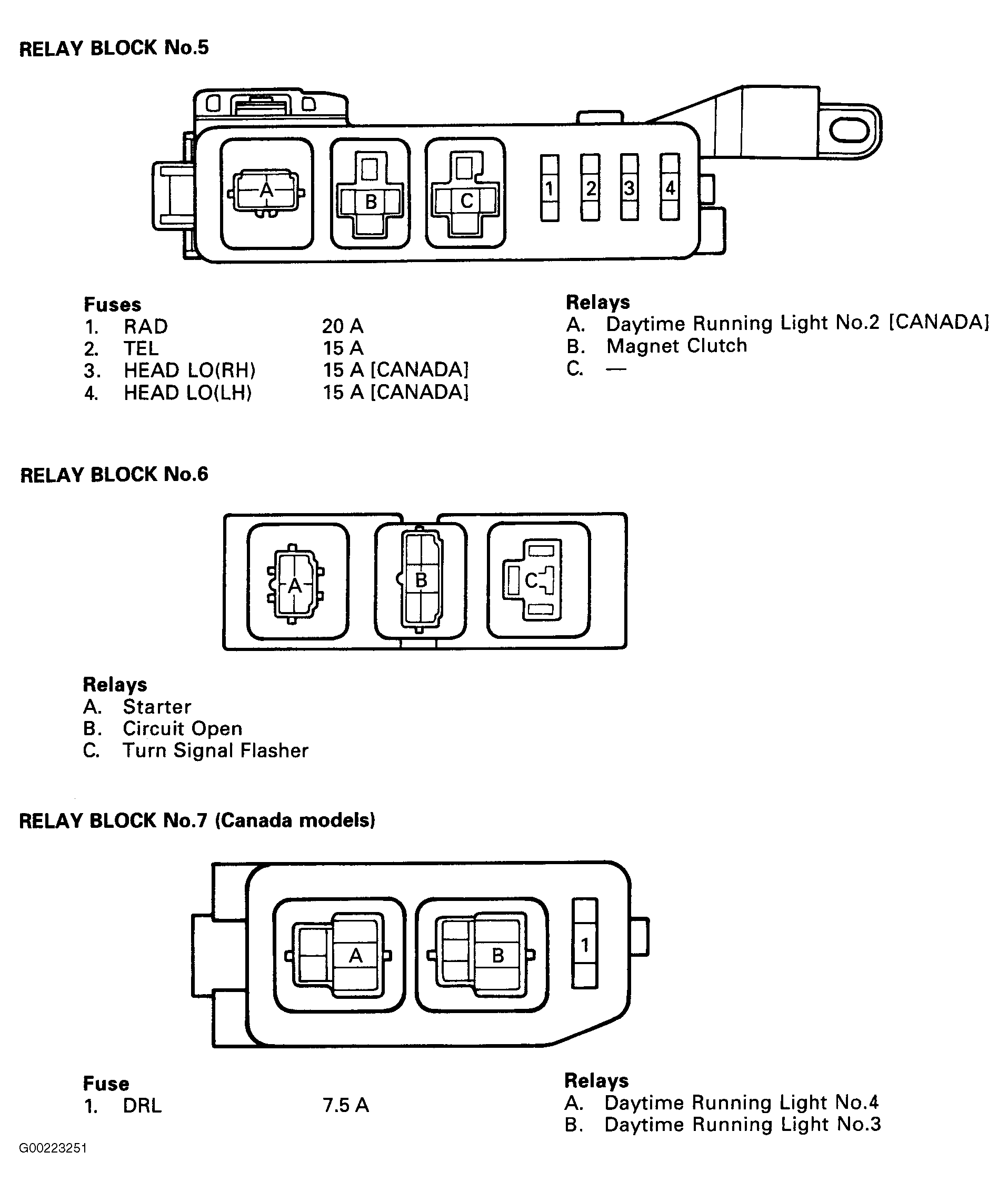

Starter Relay	In relay block No. 6. See Fig 6.
Taillight Control Relay	On back of junction block No. 1. See Fig 3.

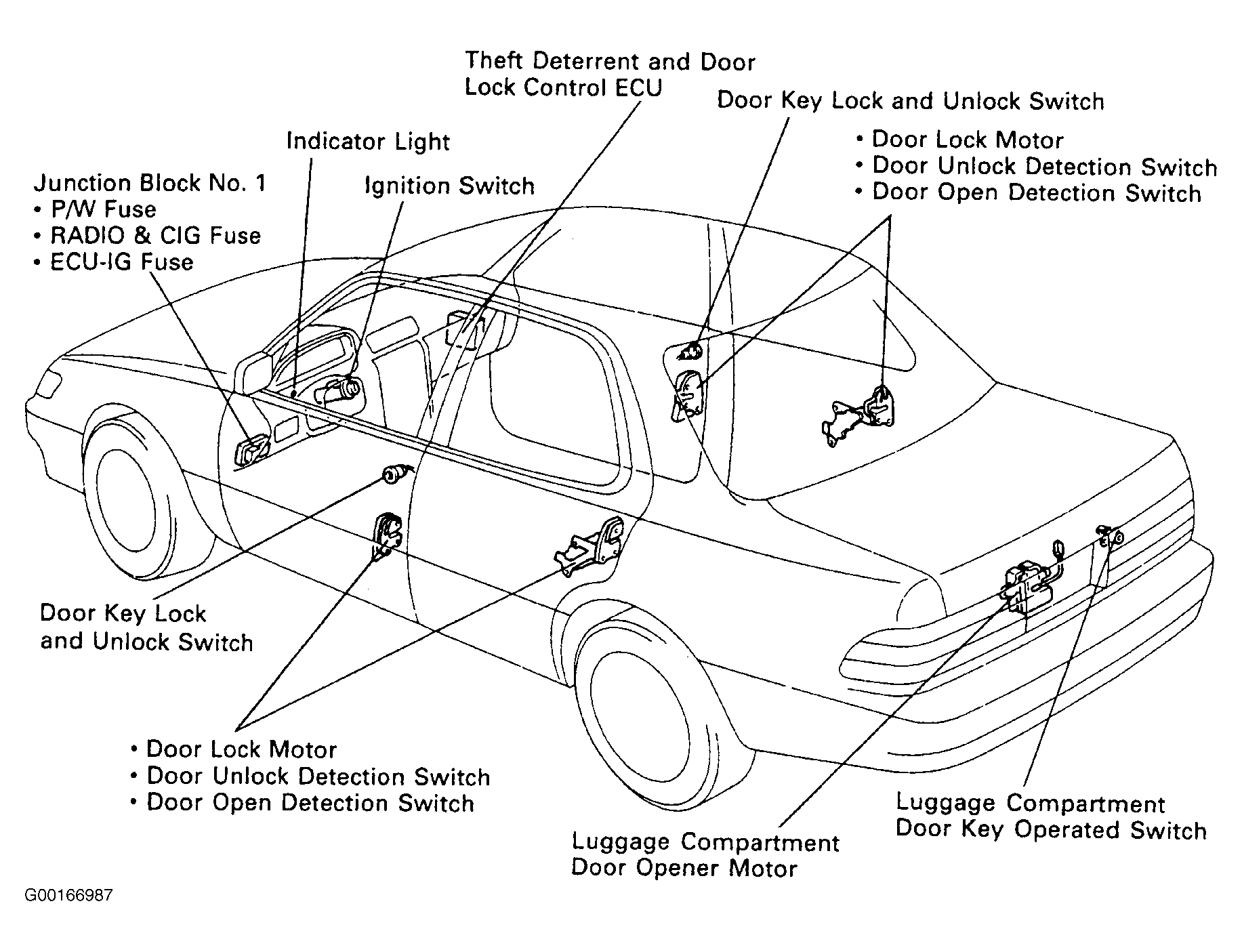

Theft Deterrent & Door Lock Control ECU	Behind right side of instrument panel. See Fig 2.
Theft Deterrent Horn	In right rear corner of engine compartment. See Fig 1.
