Connector Identification

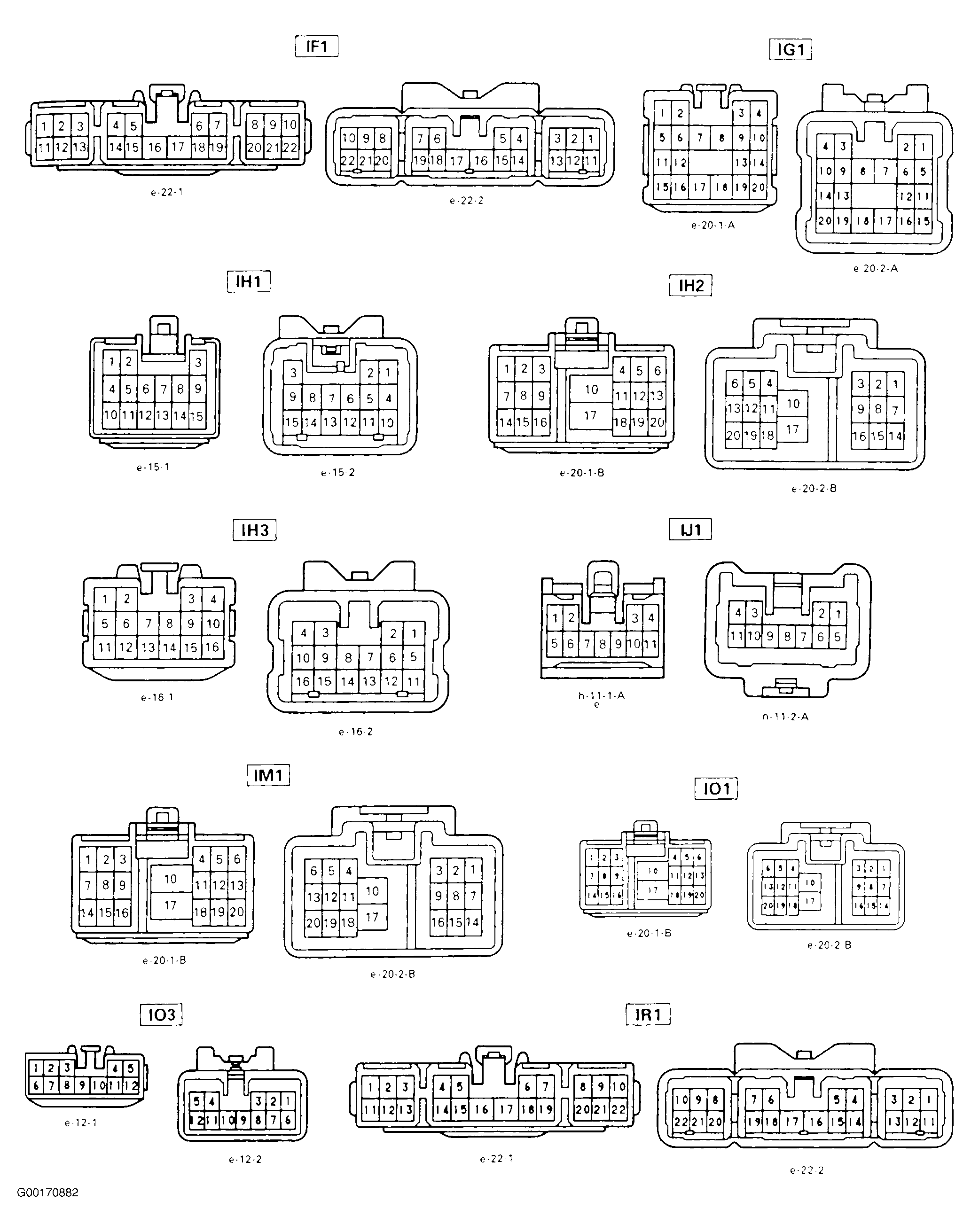

Fig 1: Connector Views Of Theft Deterrent System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

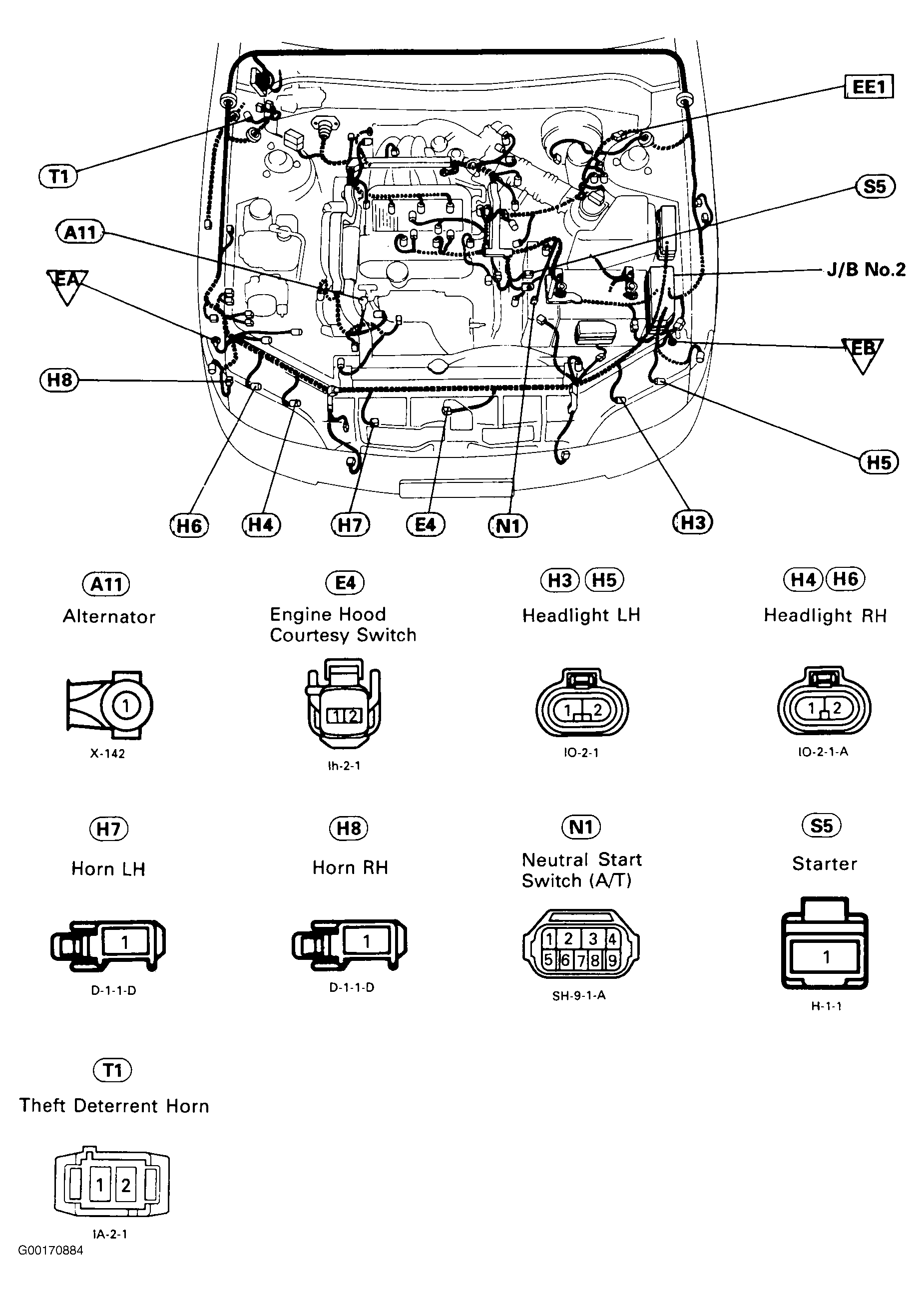

Fig 2: Connector Location Theft Deterrent System (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

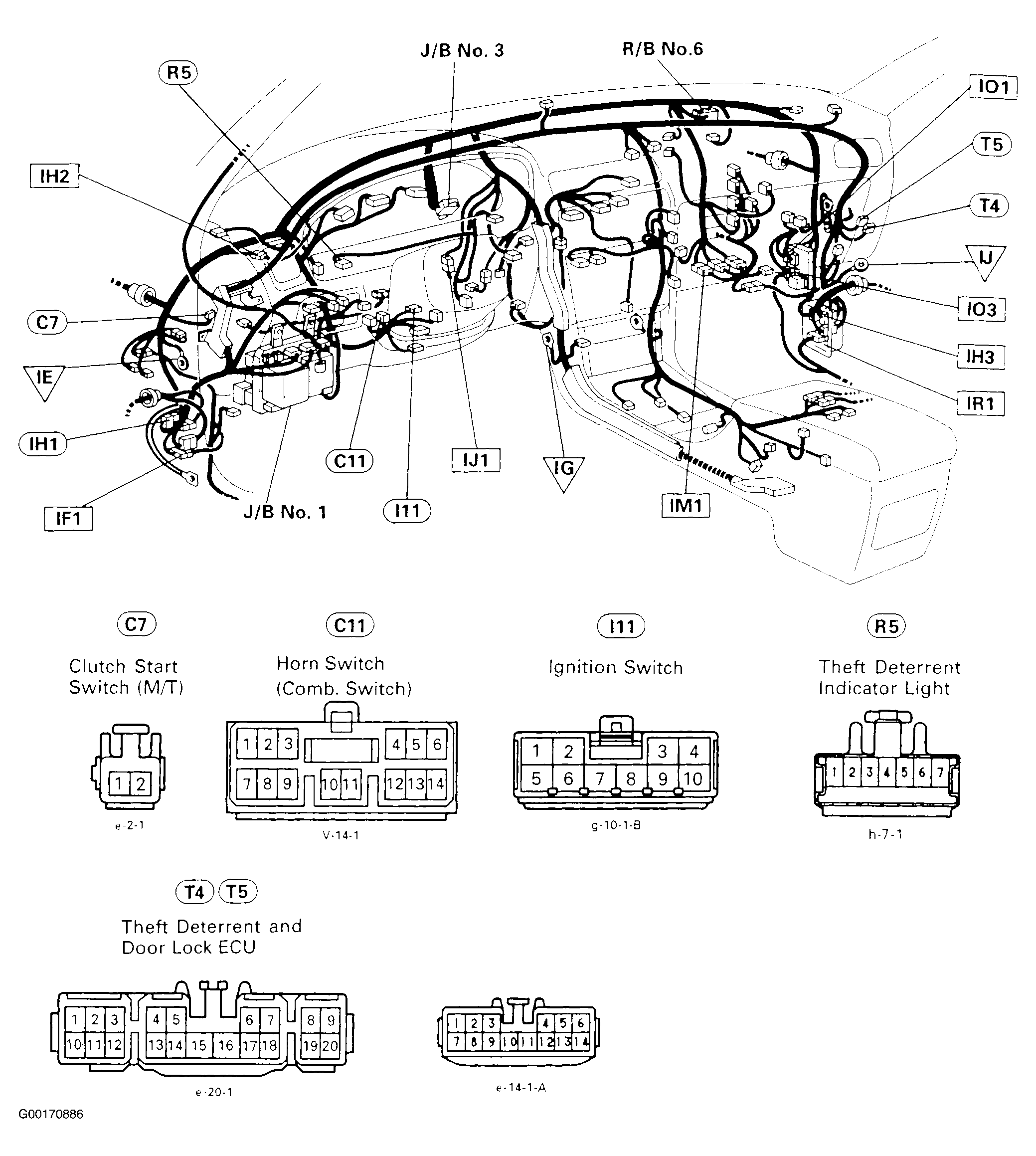

Fig 3: Connector Location Theft Deterrent System (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

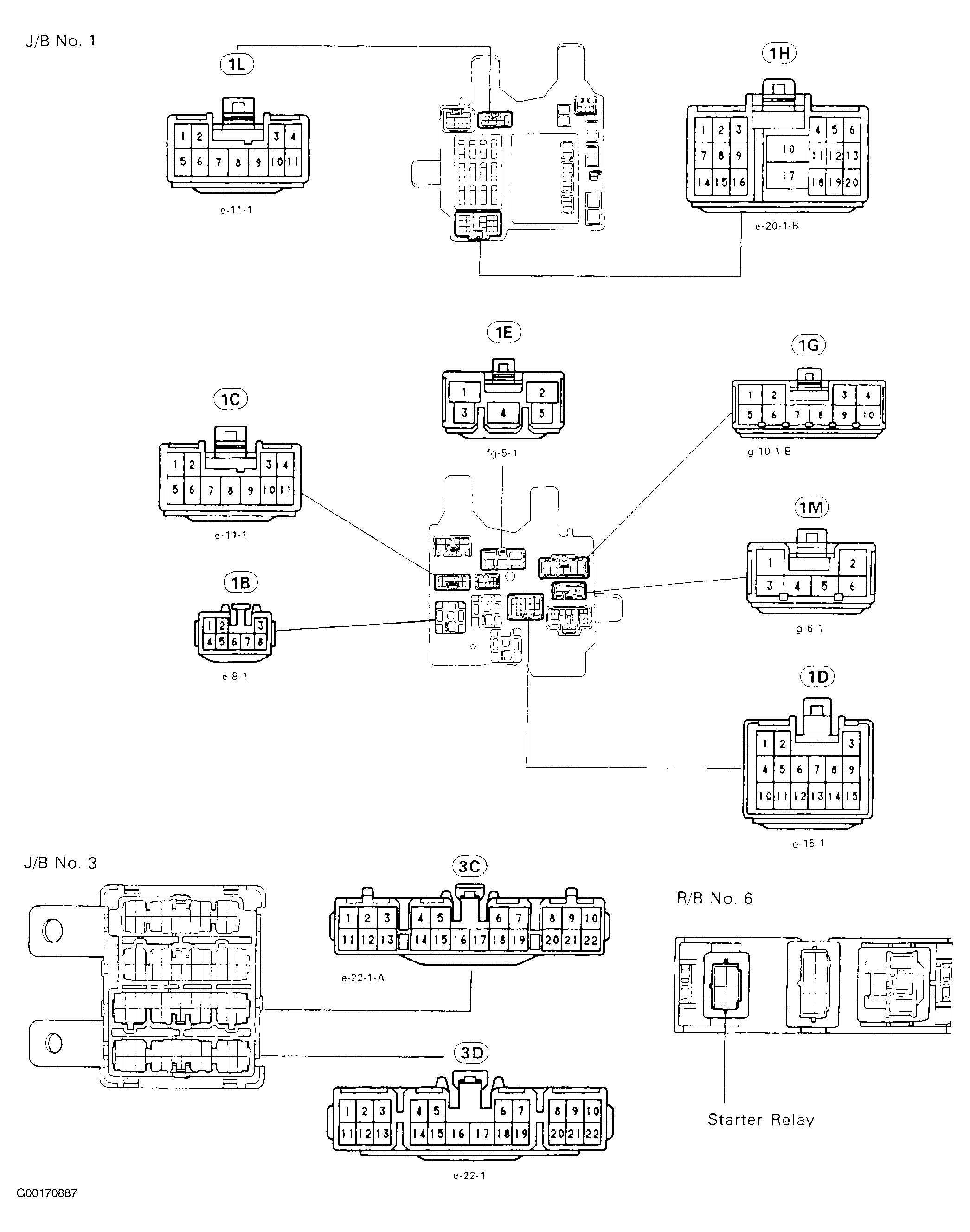

Fig 4: Connector Location Theft Deterrent System (3 Of 5)

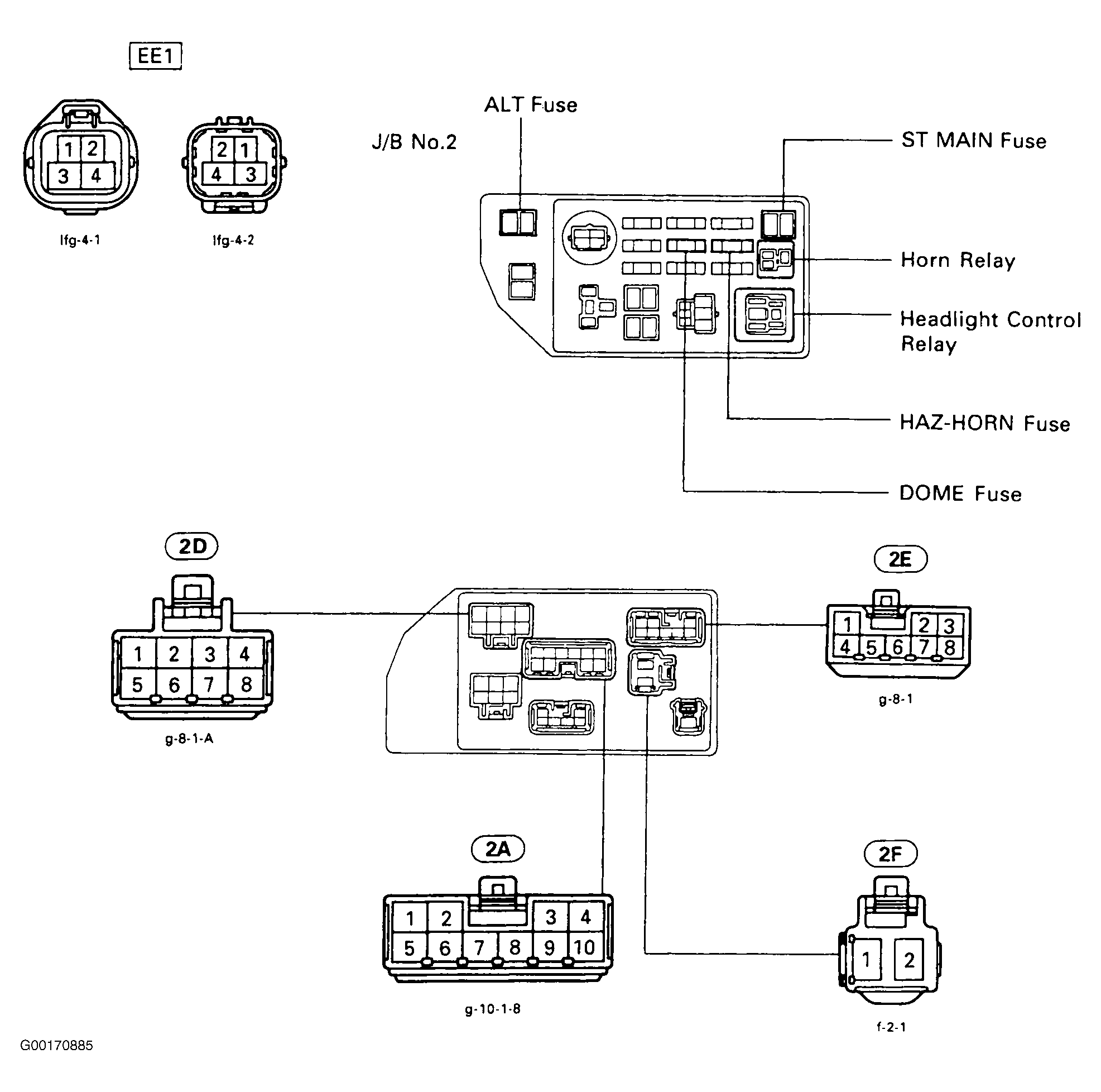

Fig 5: Connector Location Theft Deterrent System (4 Of 5)

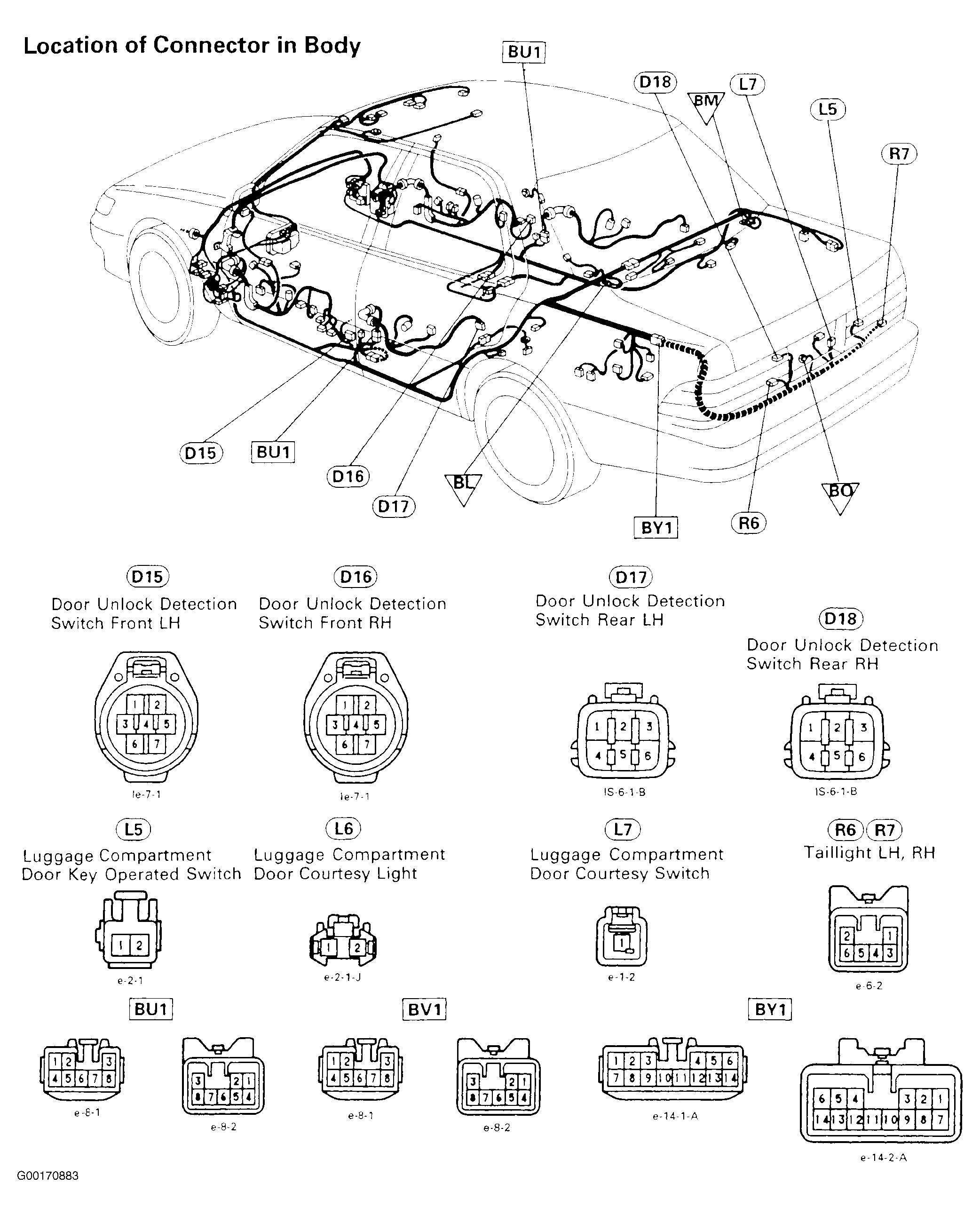

Fig 6: Connector Location Theft Deterrent System (5 Of 5)
