Component Tests: Transmitter

NOTE: Perform this inspection only when transmitter is judged to be faulty in PRECHECK TYPE II: SYSTEM FAILS TO OPERATE ANYWHERE under TROUBLE SHOOTING.

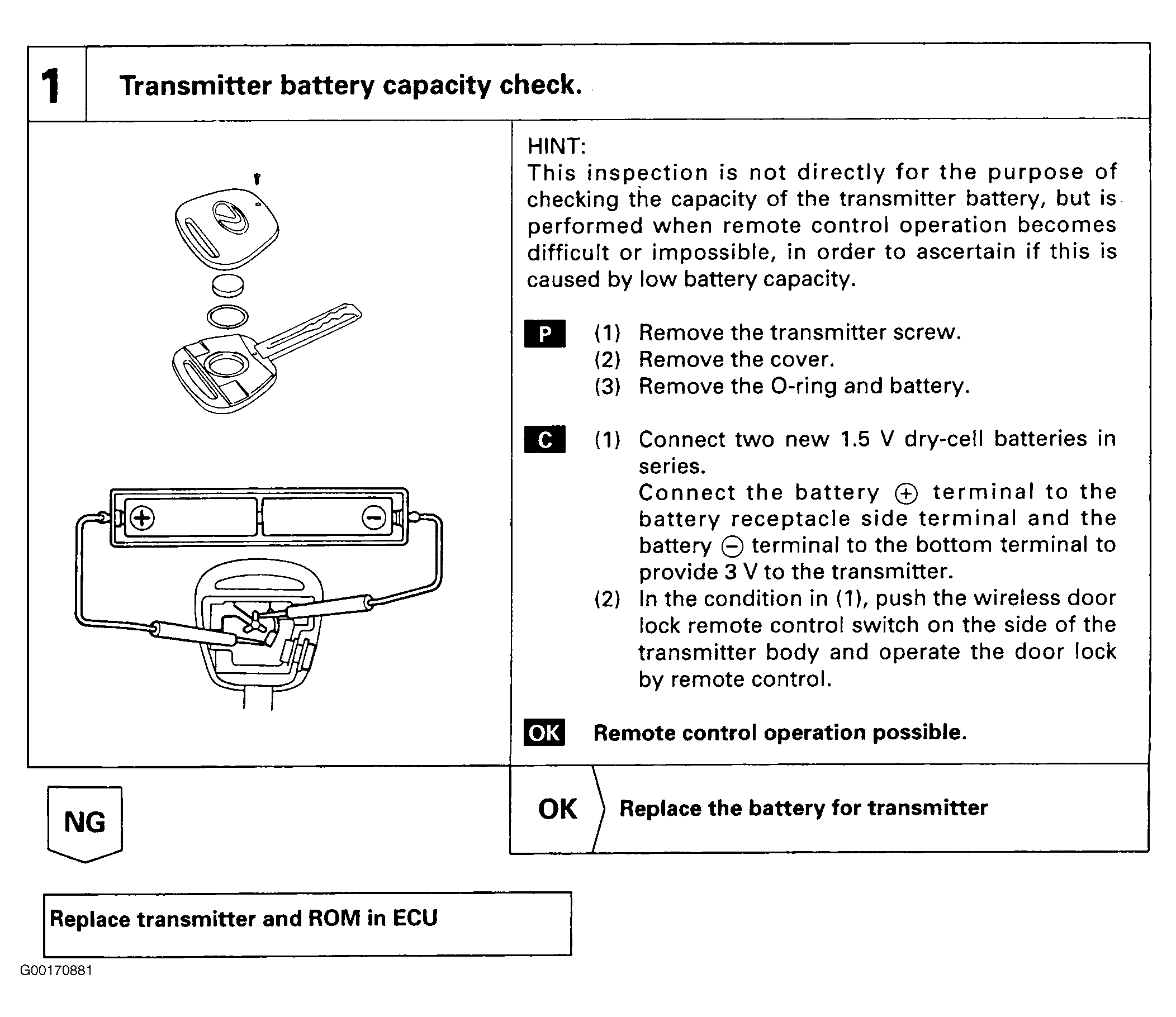

Fig 1: Transmitter Battery Capacity Check
