Connector Identification

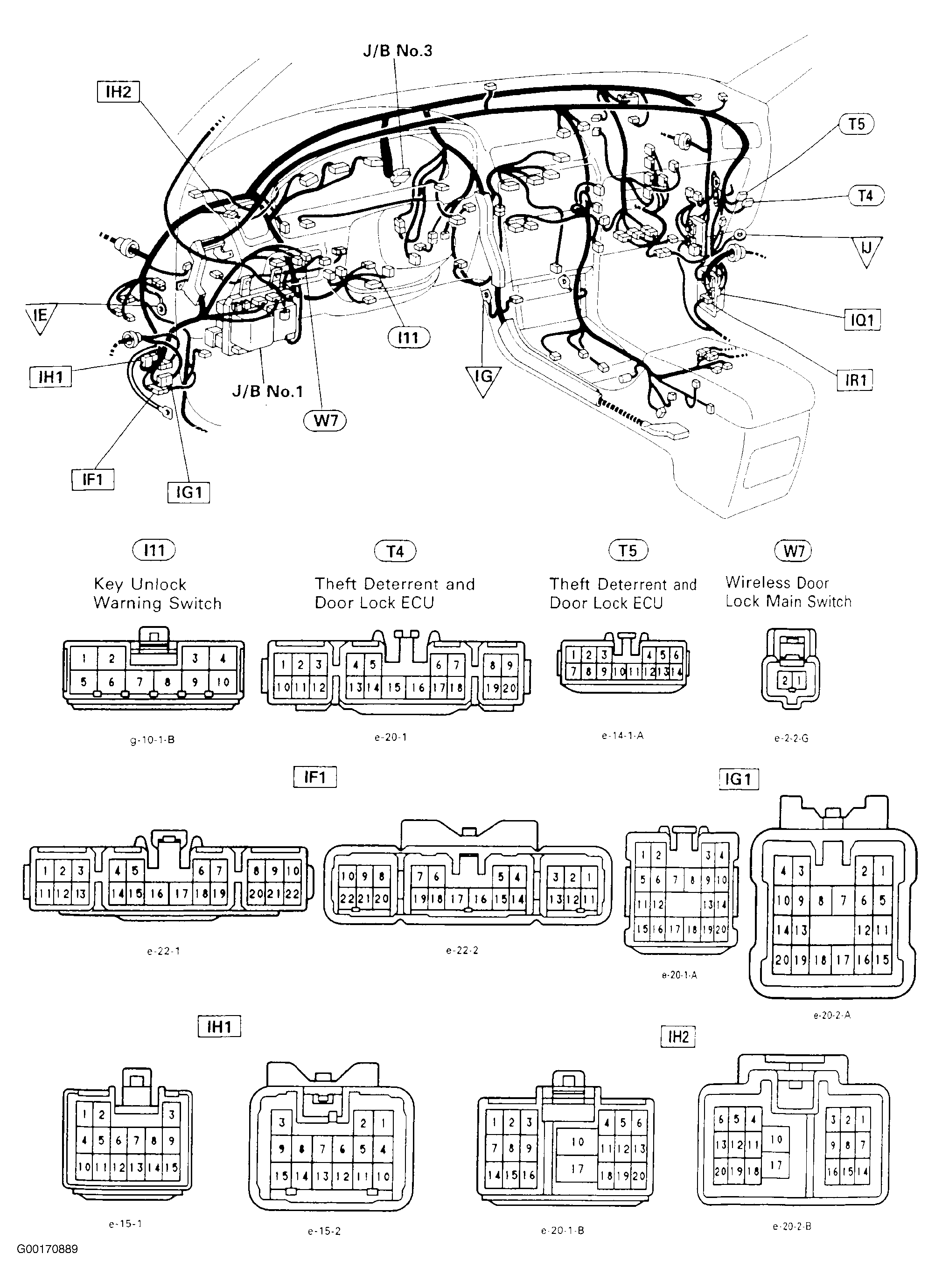

Fig 1: Connector View Wireless Door Lock Control System (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

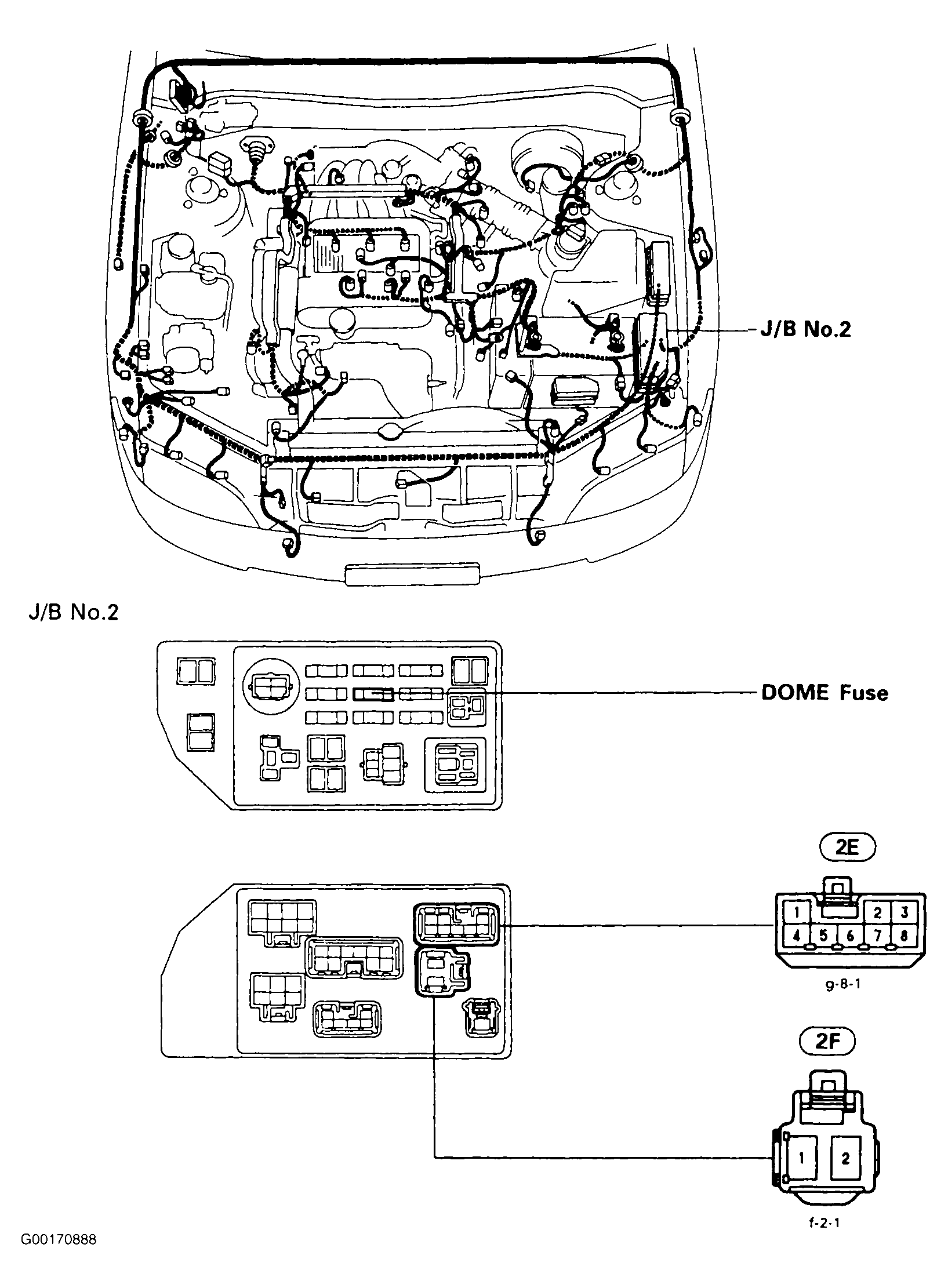

Fig 2: Connector view Wireless Door Lock Control System (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

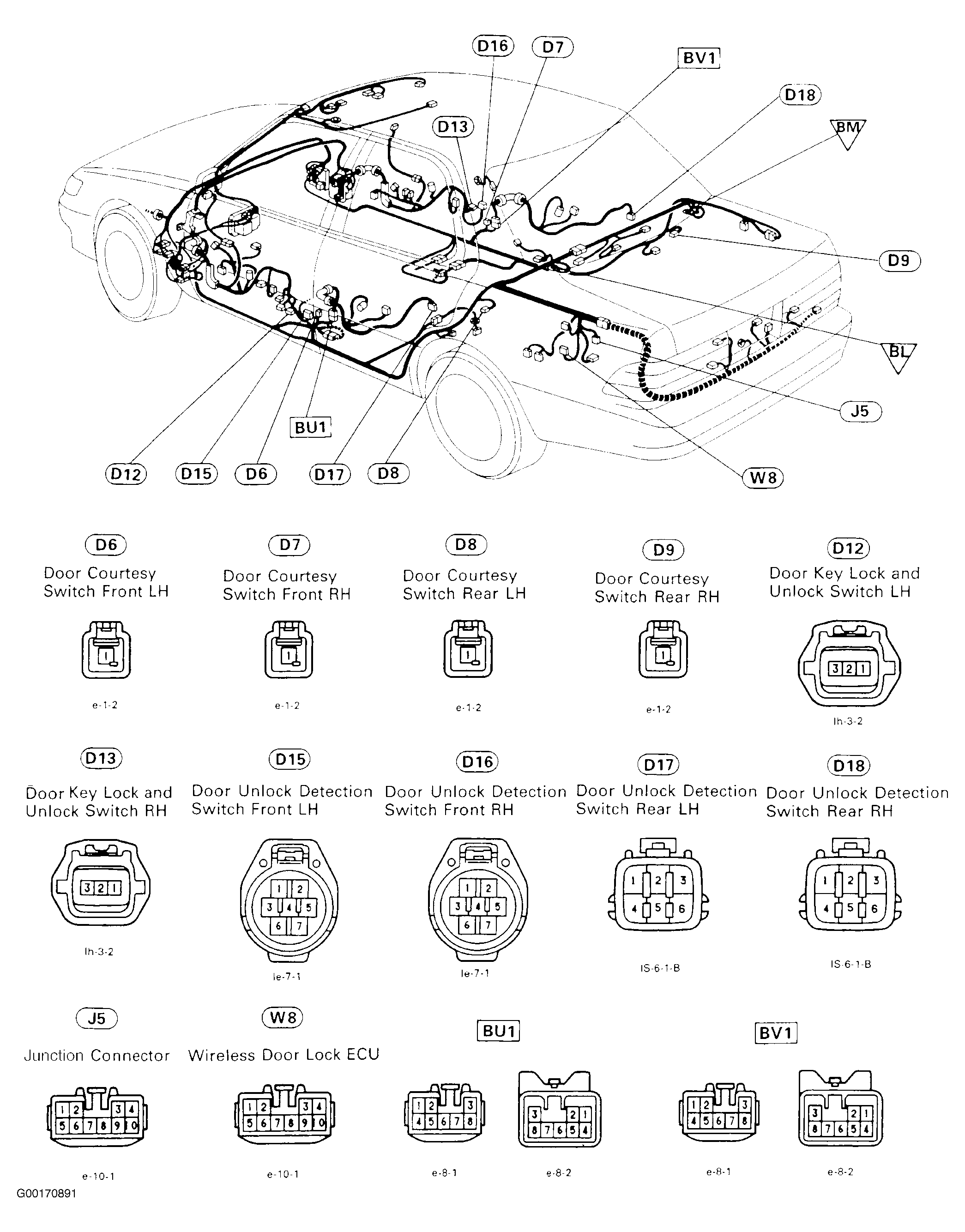

Fig 3: Connector View Wireless Door Lock Control System (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

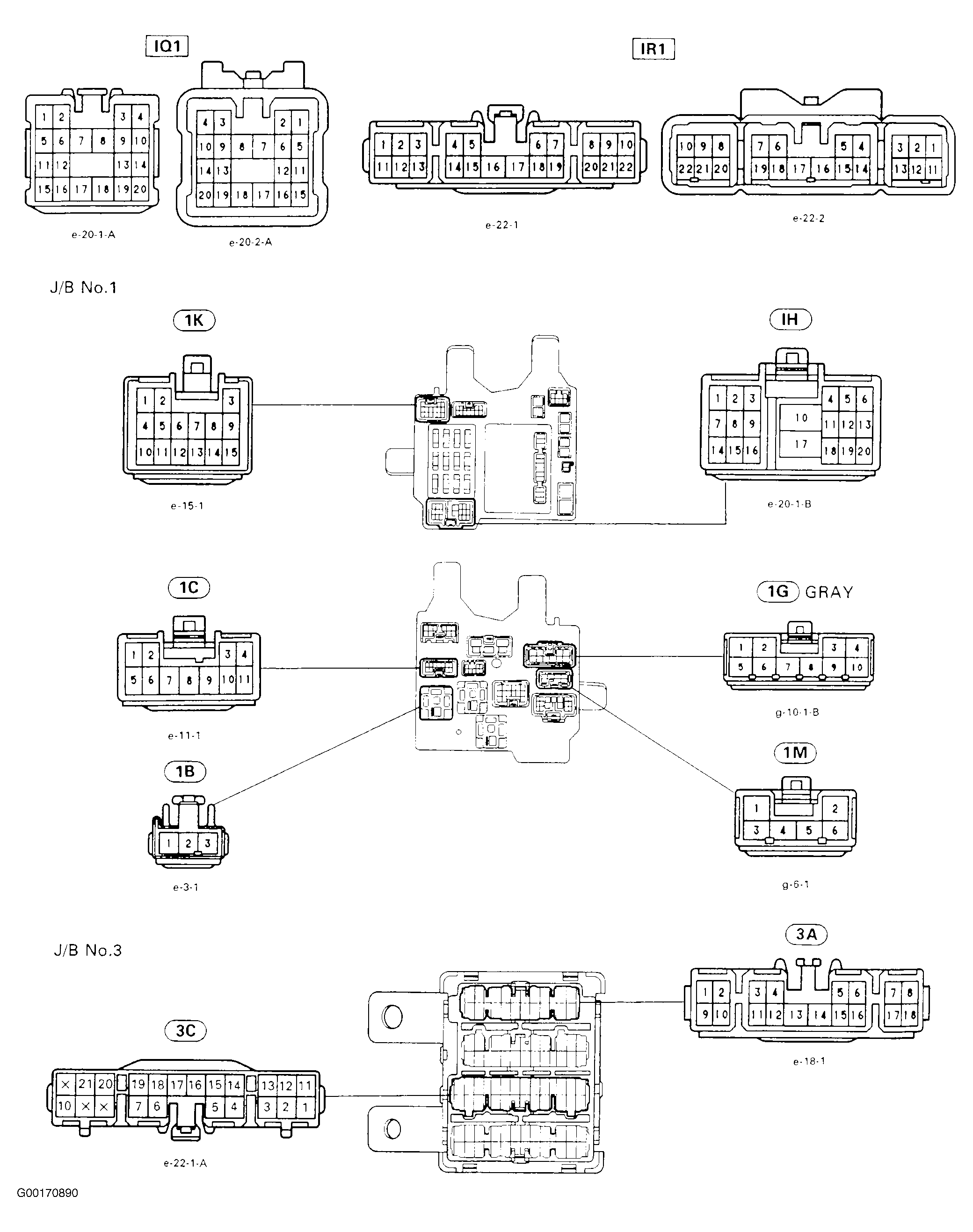

Fig 4: Connector View Wireless Door Lock Control System (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
