Wiring Diagrams

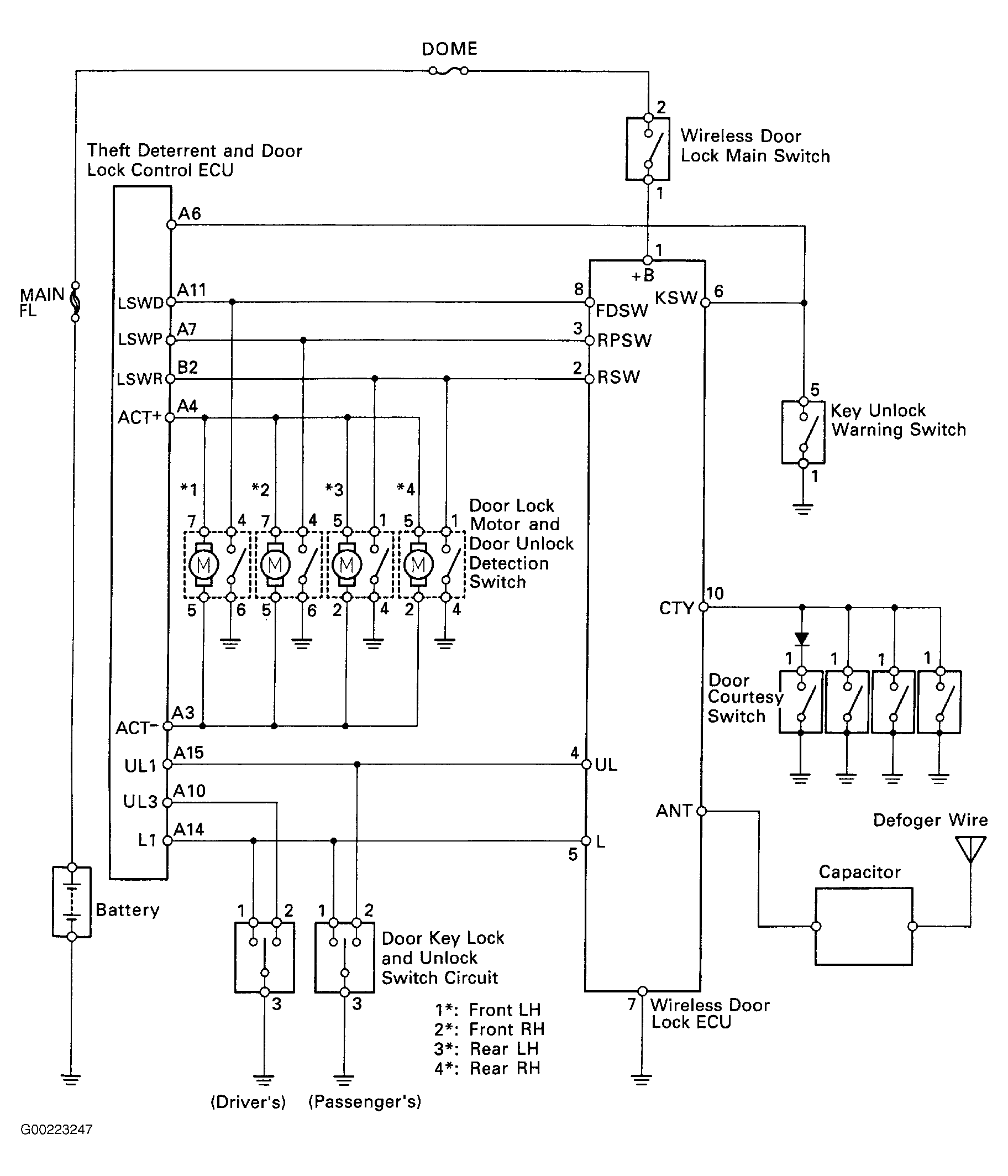

Fig 1: Wireless Door Lock Control System Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Wireless Door Lock Control & Anti-Theft Circuit (1 Of 2)

Fig 3: Wireless Door Lock Control & Anti-Theft Circuit (2 Of 2)
