Test 12: Engine Hood Courtesy Switch Circuit

The engine hood courtesy switch is built into the engine hood lock assembly and goes on when the engine hood is opened and off when the engine hood is closed.

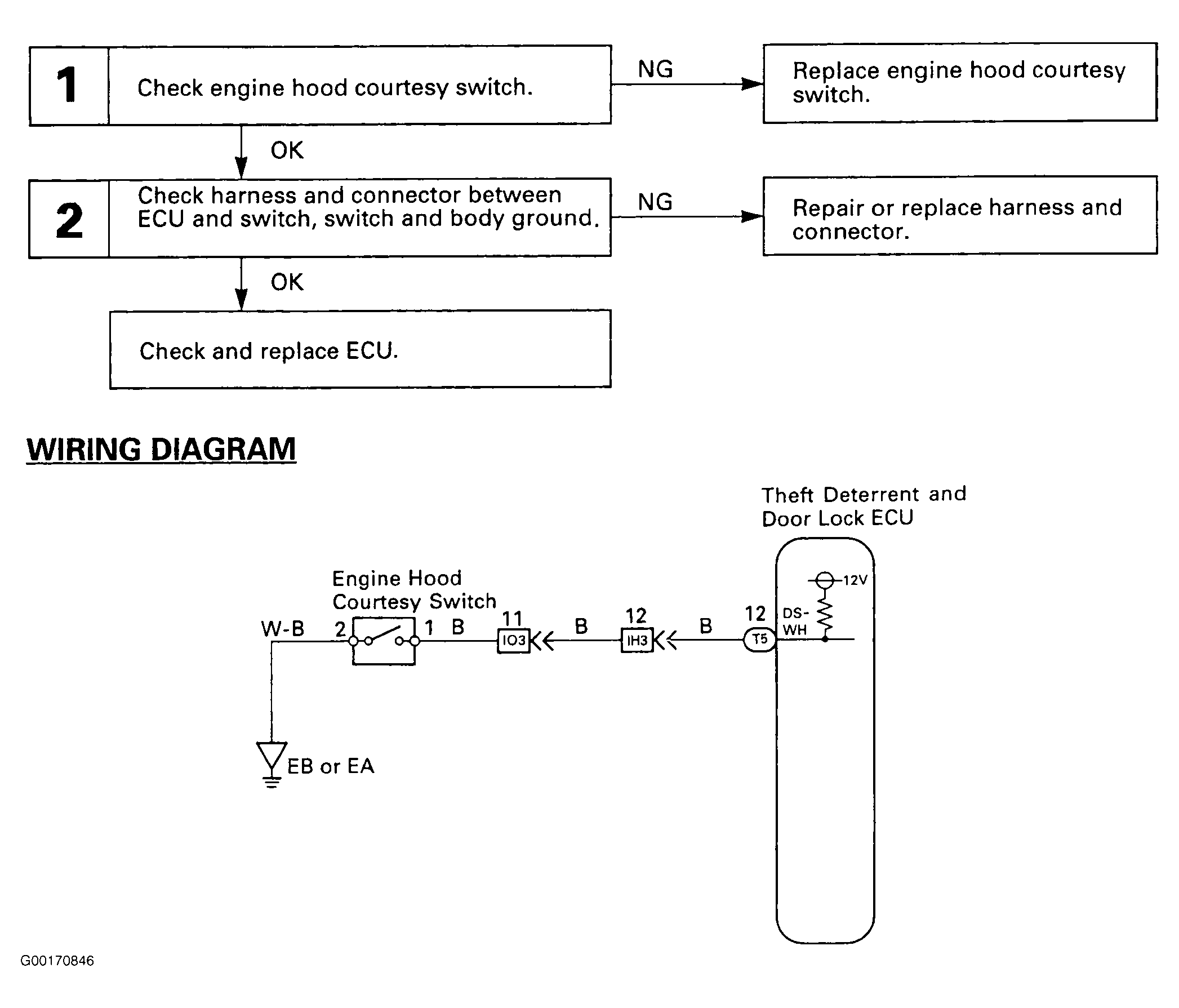

Fig 1: Test 12: Engine Hood Courtesy Switch Circuit Test (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

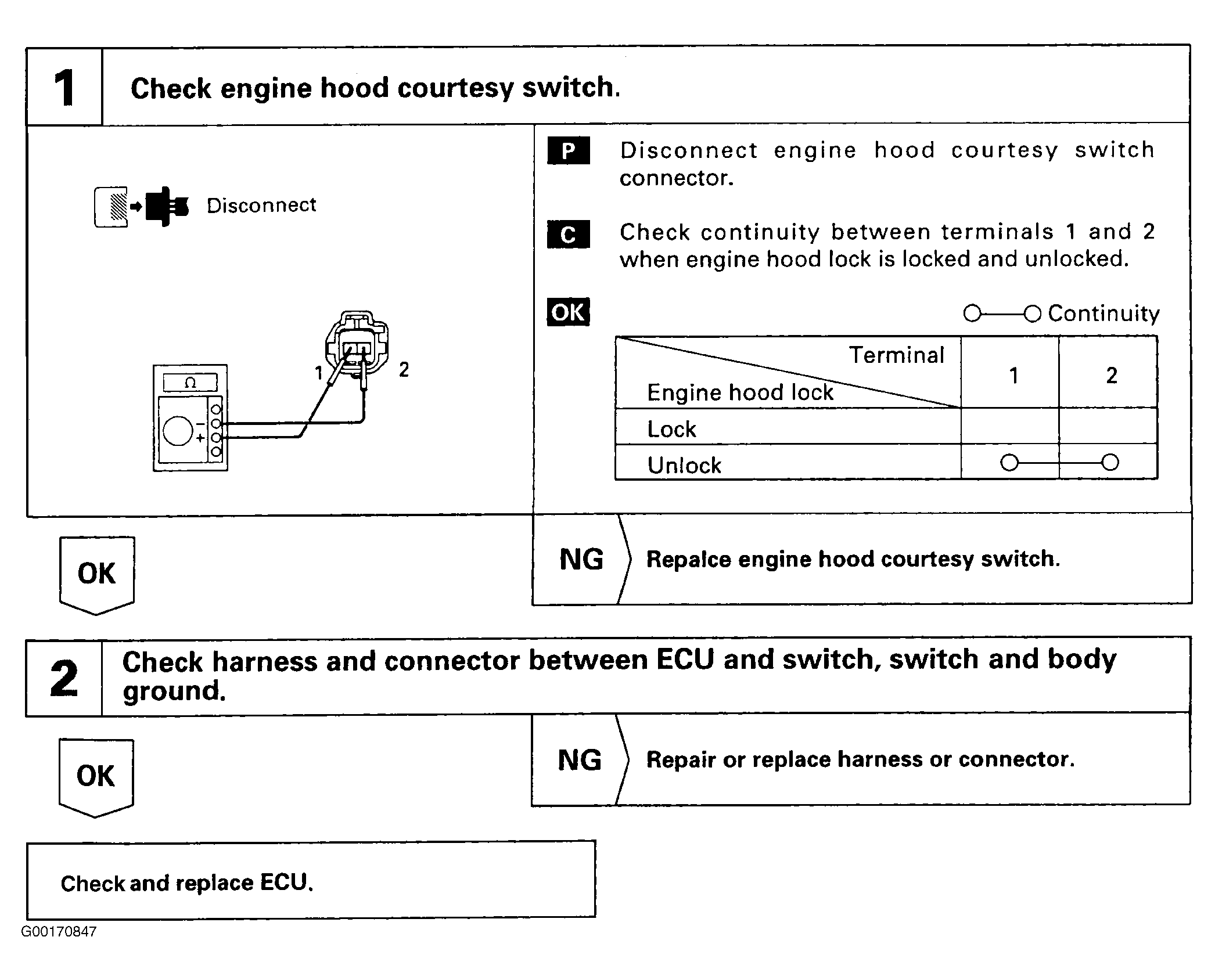

Fig 2: Test 12: Engine Hood Courtesy Switch Circuit Test (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
