| A/C Compressor-To-Alternator Bracket Bolt |
14 (19) |
| A/C Compressor-To-Cylinder Block Bolt |
20 (27) |
| Air Intake Chamber Bolt/Nut |
32 (43) |
| Air Intake Chamber Support Bolt |
29 (39) |
| Axle Shaft Bearing Retaining Bolt |
24 (36) |
| Axle Shaft Nut |
217 (294) |
| Ball Joint-To-Lower Control Arm Bolt/Nut |
94 (127) |

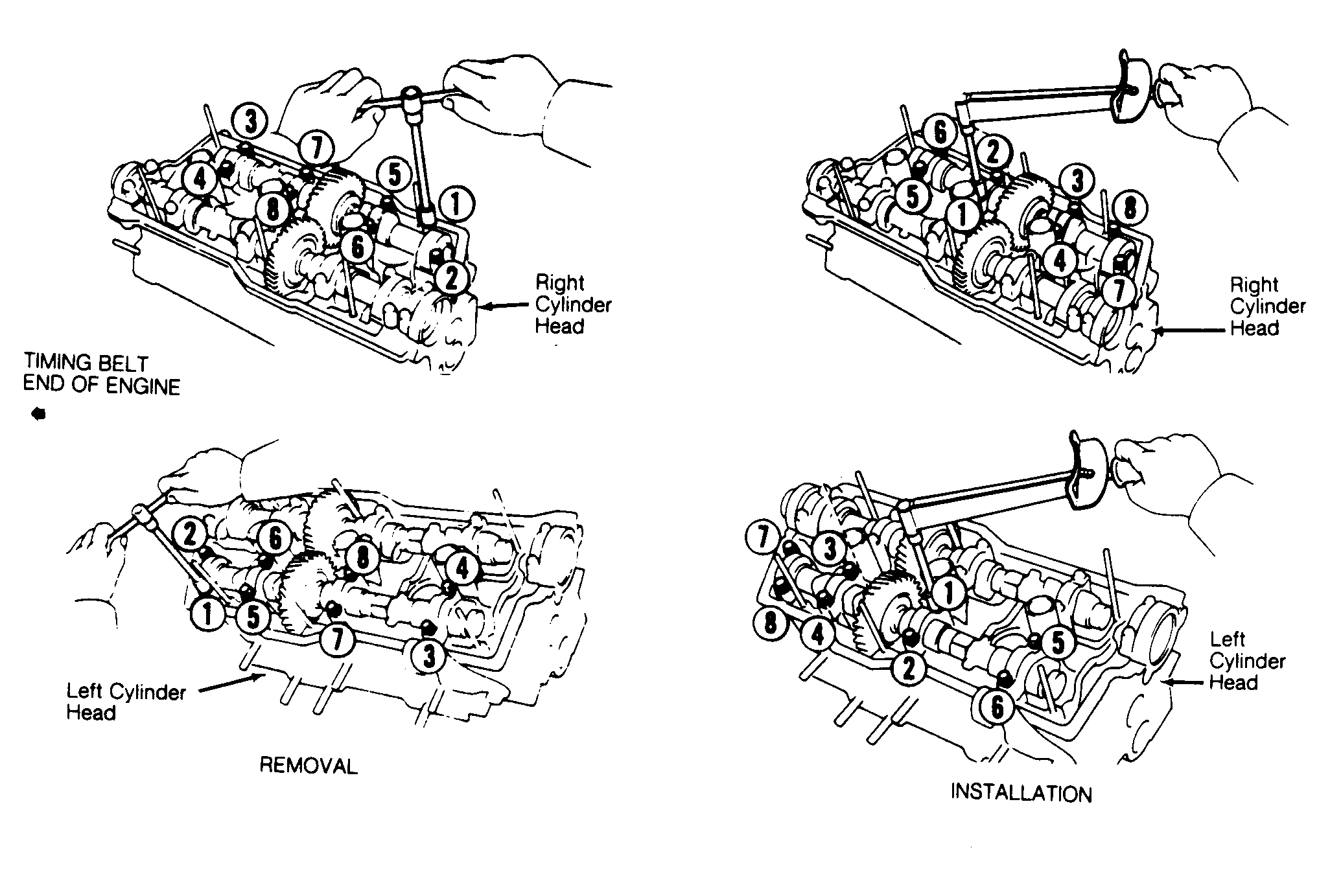

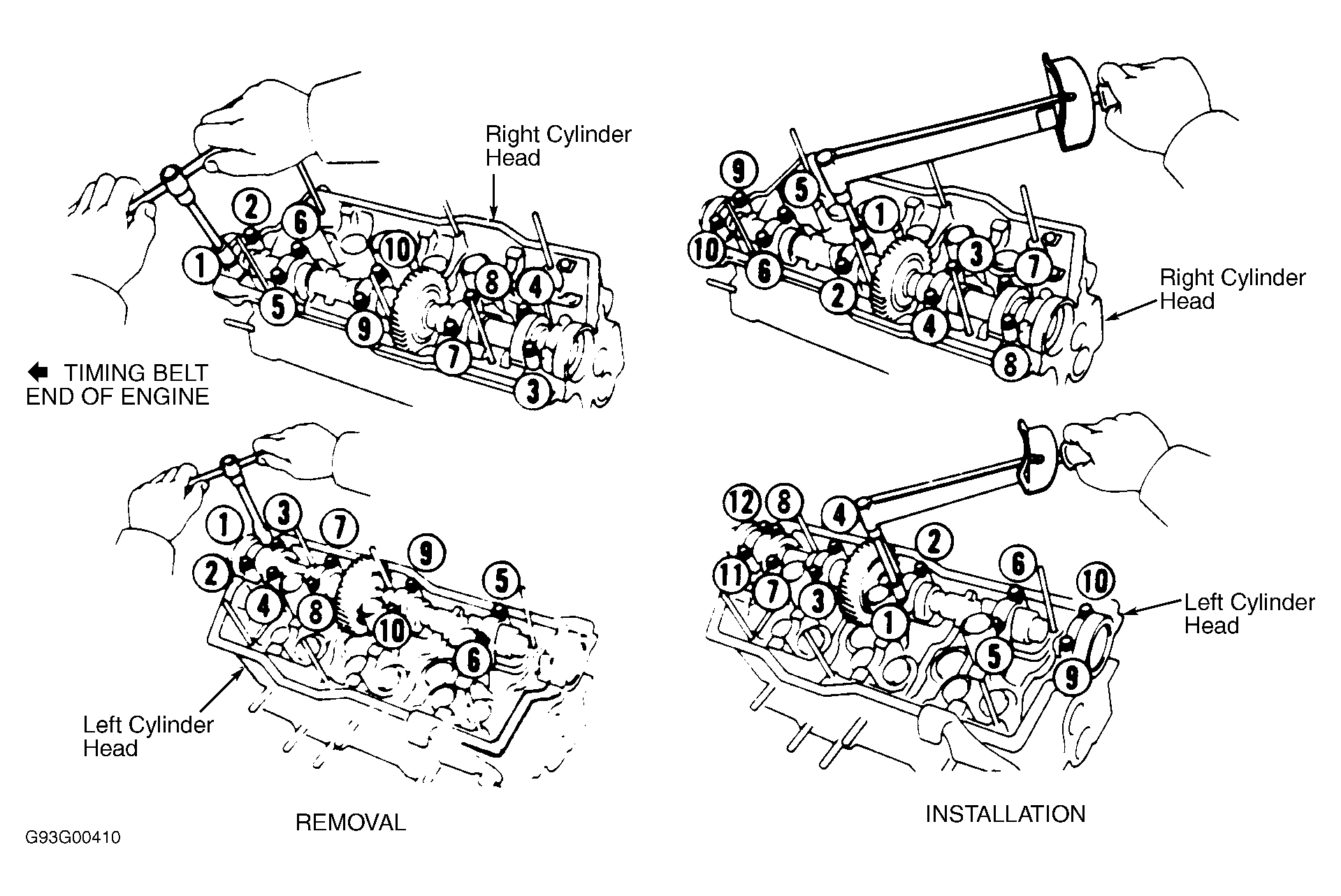

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Sprocket Bolt |
80 (109) |
| Cold Start Injector Fuel Line Bolt |
| At Cold Start Injector |
11 (15) |
| At Fuel Rail |
25 (34) |
| Connecting Rod Nut |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Crankshaft Pulley Bolt |
181 (245) |

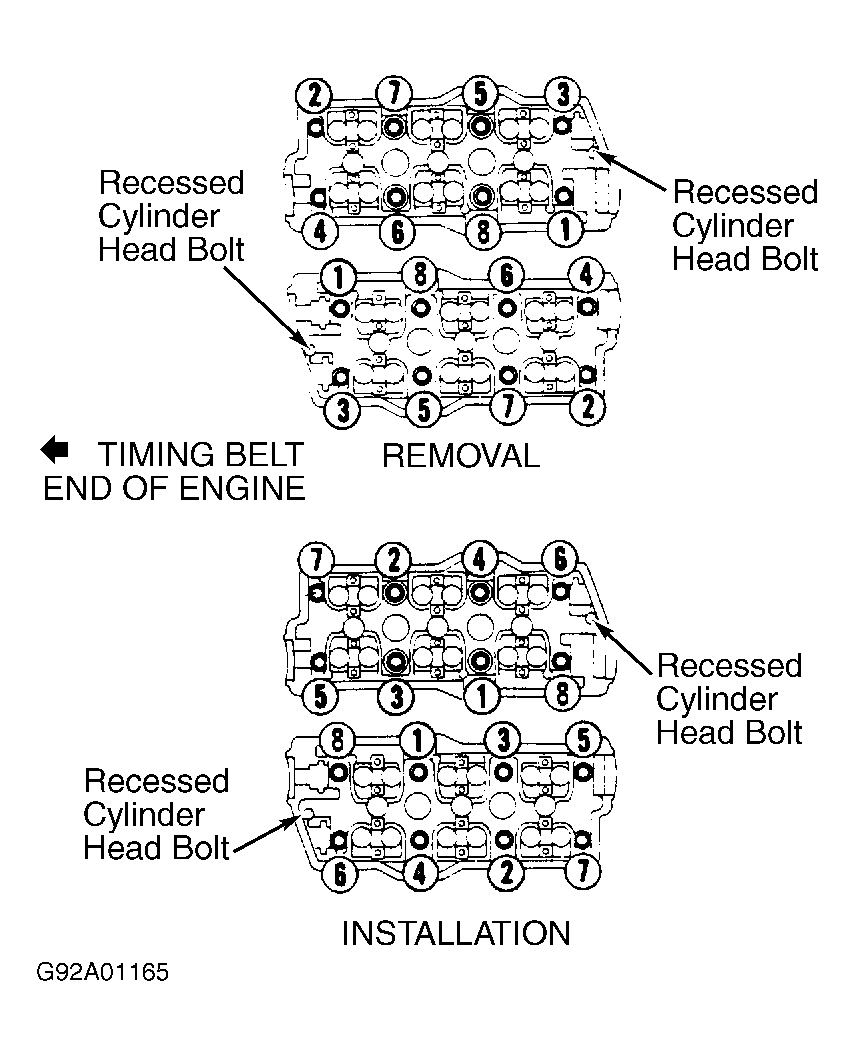

| Cylinder Head Bolt |
| 12-Point Bolt |
| Step 1 |
25 (34) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Additional 90 Degrees |
| Recessed Hexagon Bolt |
13 (18) |
| EGR Cooler Bolt/Nut |
13 (18) |
| EGR Valve & Vacuum Modulator Nut |
13 (18) |
| EGR Valve Pipe |
| Bolt |
13 (18) |
| Nut |
58 (79) |
| Engine Mount Absorber Bolt |
35 (47) |

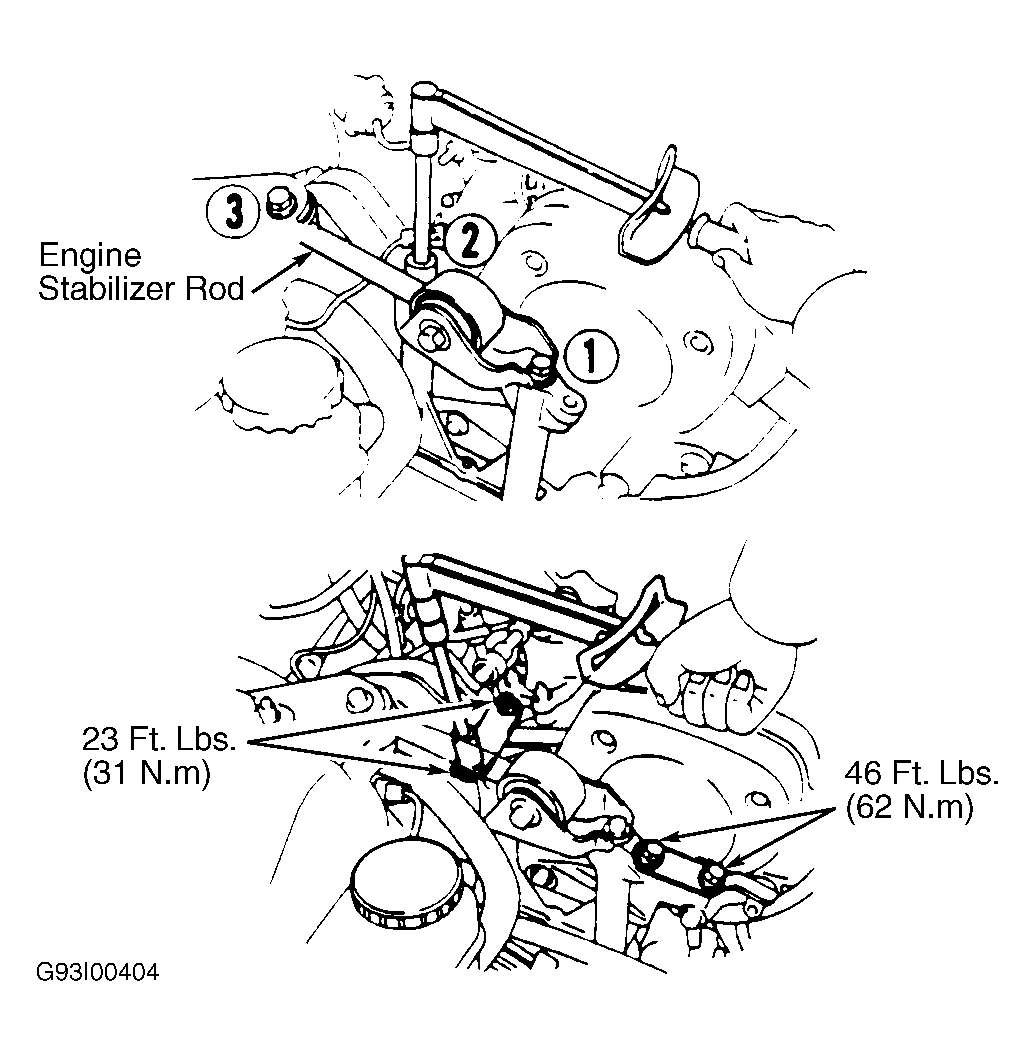

| Engine Stabilizer Rod Bolt |
47 (64) |
| Exhaust Manifold Bolt |
29 (39) |
| Flywheel/Drive Plate Bolt |
61 (83) |
| Front Engine Mount Bolt |
59 (80) |
| Front Engine Mount-To-Cylinder Block Bolt |
57 (77) |
| Front Exhaust Pipe-To-Catalytic Converter Bolt |
32 (43) |
| Front Exhaust Pipe-To-Exhaust Manifold Bolt |
46 (62) |
| Fuel Line-To-Fuel Filter Banjo Bolt |
22 (30) |
| Idler Pulley Support Bolt |
13 (18) |
| Intake Manifold Bolt/Nut |
13 (18) |
| Left (Flywheel Side) Engine Mount Bolt |
47 (64) |

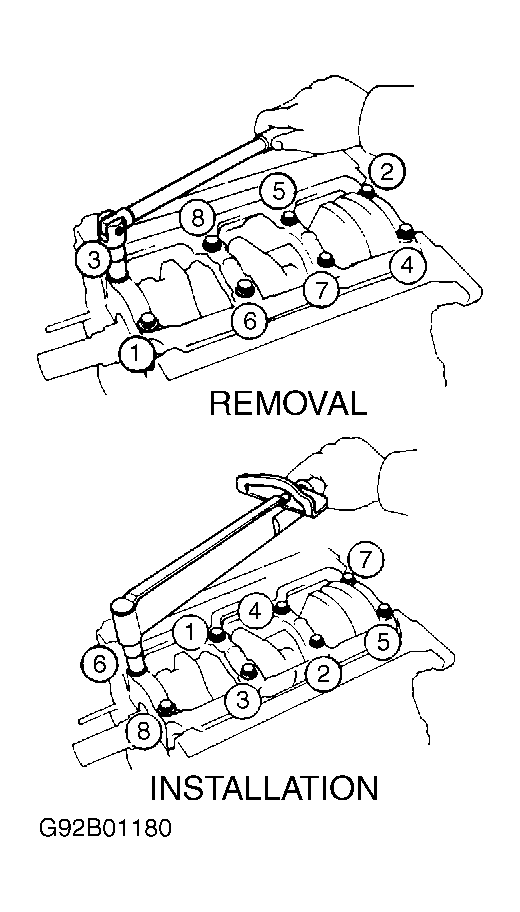

| Main Bearing Cap Bolt |
| Step 1 |
45 (61) |
| Step 2 |
Additional 90 Degrees |
| No. 1 Engine Hanger Bolt |
29 (39) |
| No. 1 Idler Pulley Bolt |
25 (34) |
| No. 2 Idler Pulley Bolt |
29 (39) |
| Oil Filter Bracket-To-Cylinder Block Bolt |
14 (19) |
| Oil Pump Bolt |
| 12-mm Bolt |
14 (19) |
| 14-mm Bolt |
30 (41) |
| Oil Pump Relief Valve Plug |
37 (51) |
| Power Steering Pump Bolt |
31 (42) |
| Rear Engine Mount-To-Crossmember Nut |
48 (65) |
| Rear Engine Mount-To-Cylinder Block Bolt |
57 (77) |
| Right Engine Mount Bracket-To-Cylinder |
| Block Bolt/Nut |
30 (41) |
| Right (Timing Belt Side) Engine |
| Mount Bracket Brace Bolt |
|
| Spark Plug |
13 (18) |
| Stabilizer Bar Link Bolt/Nut |
47 (64) |
| Stiffener Support Bracket Bolt |
| 12-mm Bolt |
13 (18) |
| 14-mm Bolt |
27 (37) |
| Thermostat Housing Bolt/Nut |
14 (19) |
| Tie Rod Nut |
36 (49) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Water Pump Bolt |
14 (19) |
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |
| Air Pipe Bolt |
74 (8) |
| Coolant By-Pass Outlet Bolt |
74 (8) |
| Delivery Pipe Bolt |
108 (12) |
| ISC Valve Bolt |
108 (12) |
| No. 3 Timing Belt Cover Bolt |
65 (7) |
| Oil Pan Baffle Plate Bolt/Nut |
65 (7) |
| Oil Pan Bolt/Nut |
65 (7) |
| Oil Pump Pick-Up Tube Nut |
65 (7) |
| Rear Plate-To-Cylinder Block Bolt |
74 (8) |
| Throttle Body Bolt |
108 (12) |
| Valve Cover Nut |
52 (6) |
