Driver's Door

  1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns counterclockwise. See Fig 1.
  2. Reverse the polarity, check that the motor turns clockwise. See Fig 2. If operation is not as specified, replace the motor.

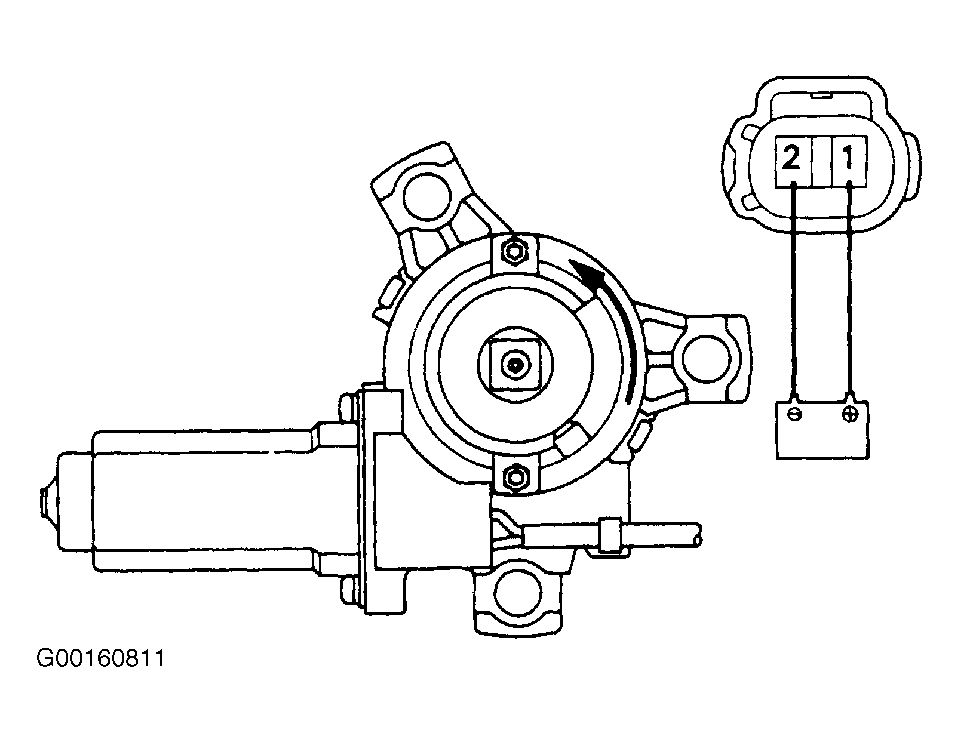

Fig 1: Testing Power Window Motor (1 Of 2)
G00160811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

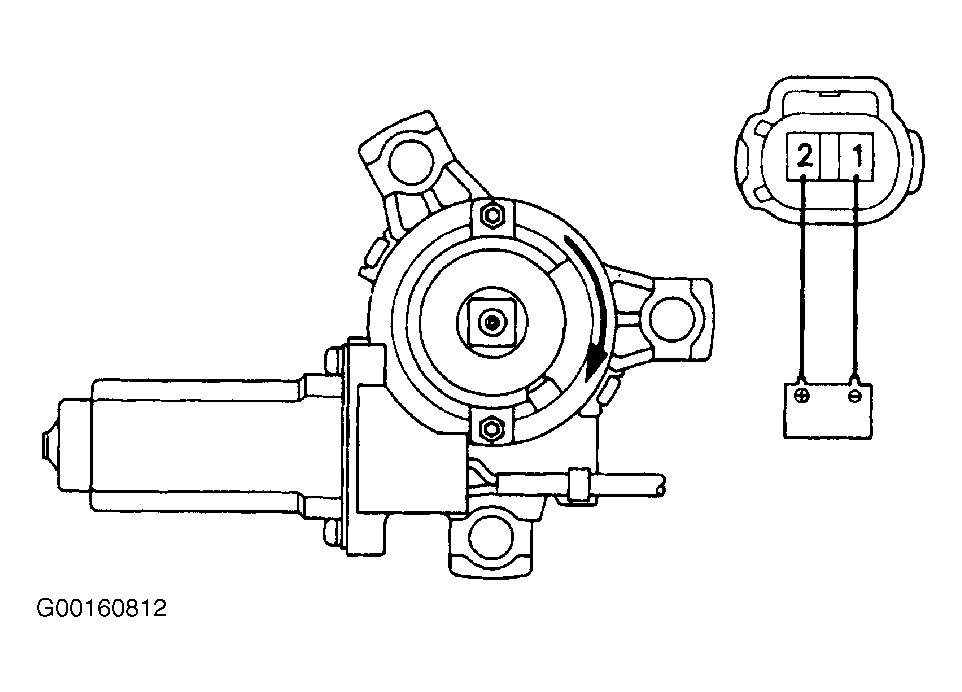

Fig 2: Testing Power Window Motor (2 Of 2)
G00160812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
