Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Wiring Diagrams
Wiring Diagrams

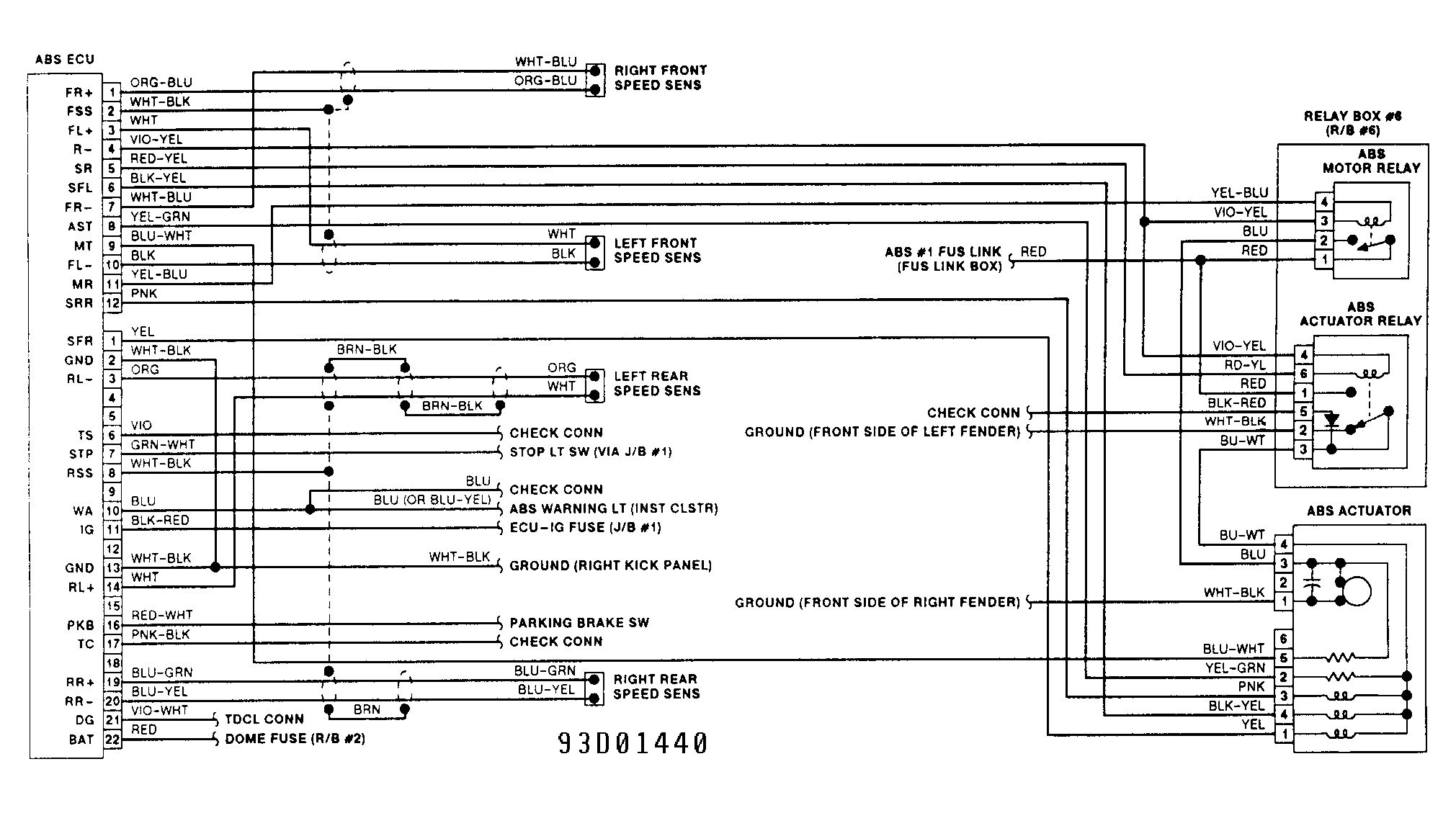

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram
