Code 14 - Ignition Signal

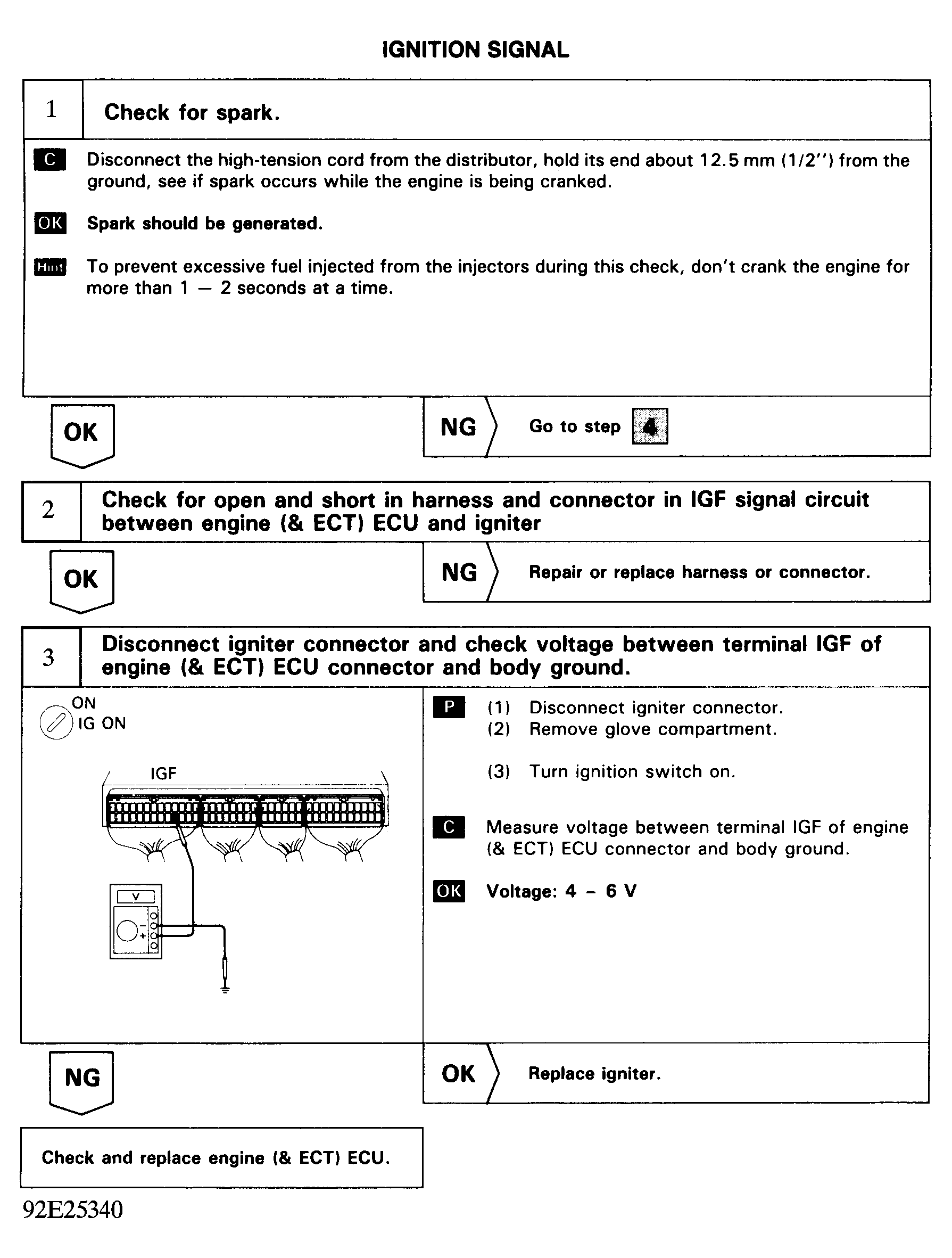

Fig 1: Code 14 Flow Chart (1 of 4) - Ignition Signal
G92E25340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

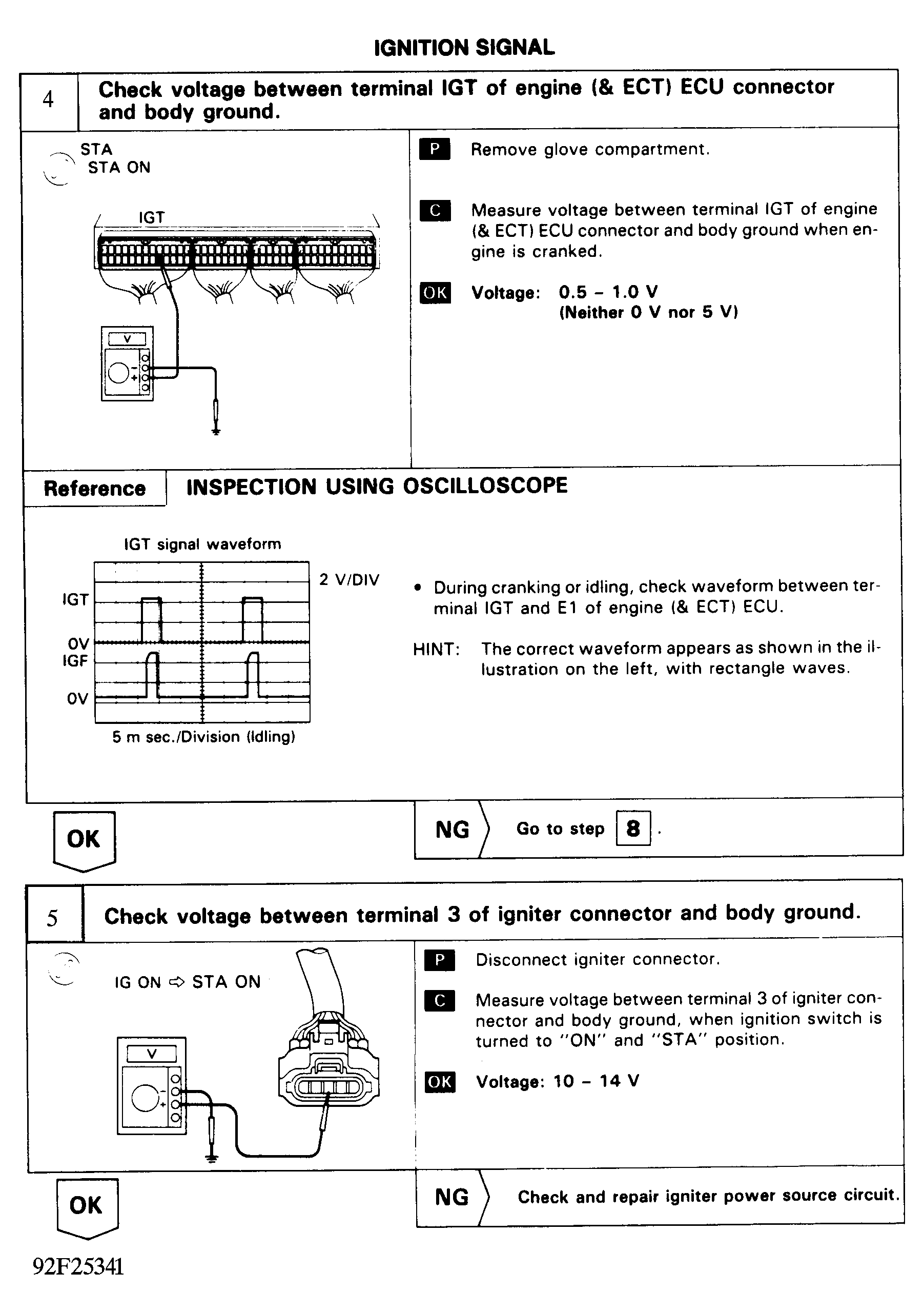

Fig 2: Code 14 Flow Chart (2 of 4) - Ignition Signal
G92F25341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

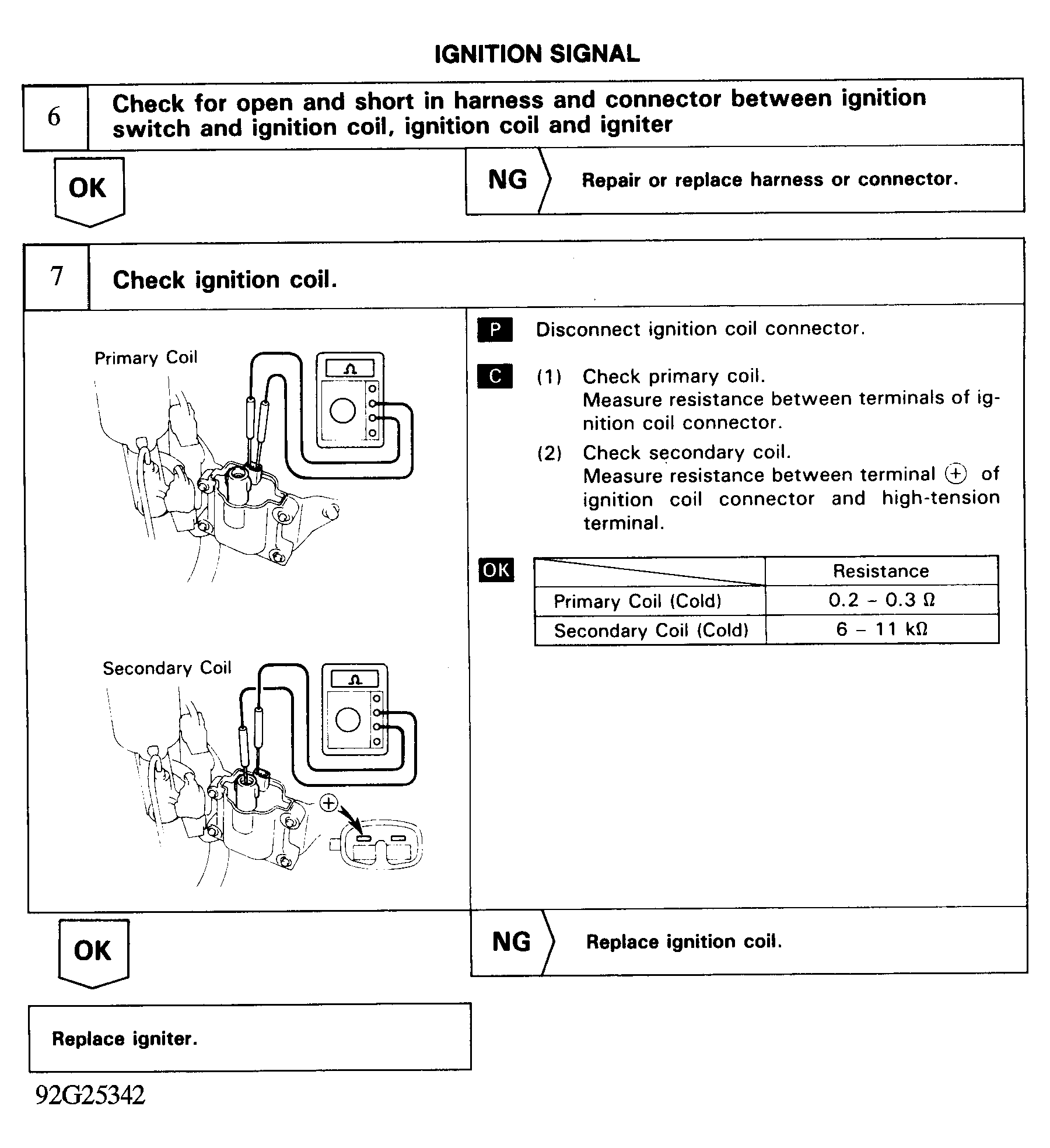

Fig 3: Code 14 Flow Chart (3 of 4) - Ignition Signal
G92G25342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

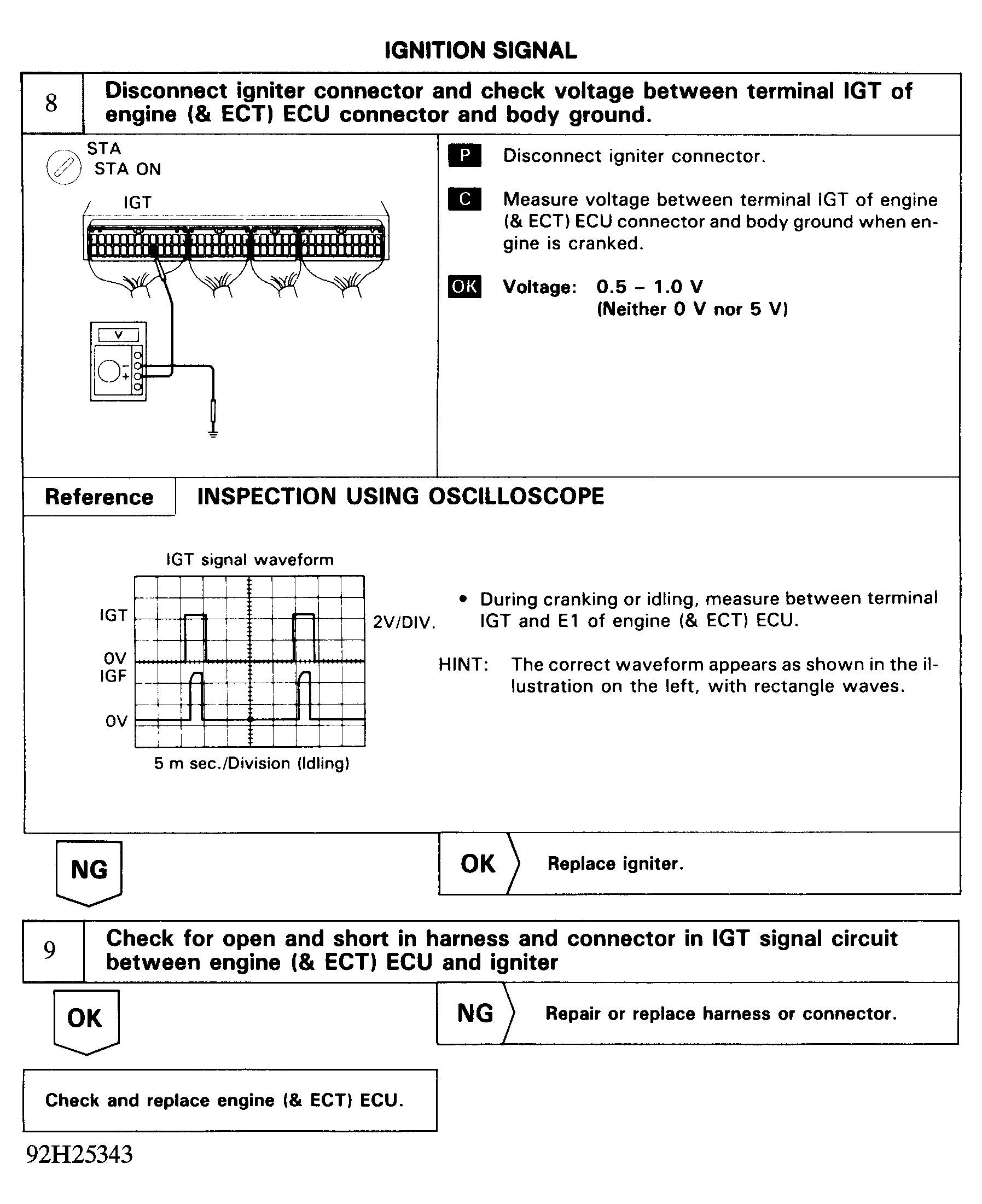

Fig 4: Code 14 Flow Chart (4 of 4) - Ignition Signal
G92H25343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
