Code 43 - Starter Signal

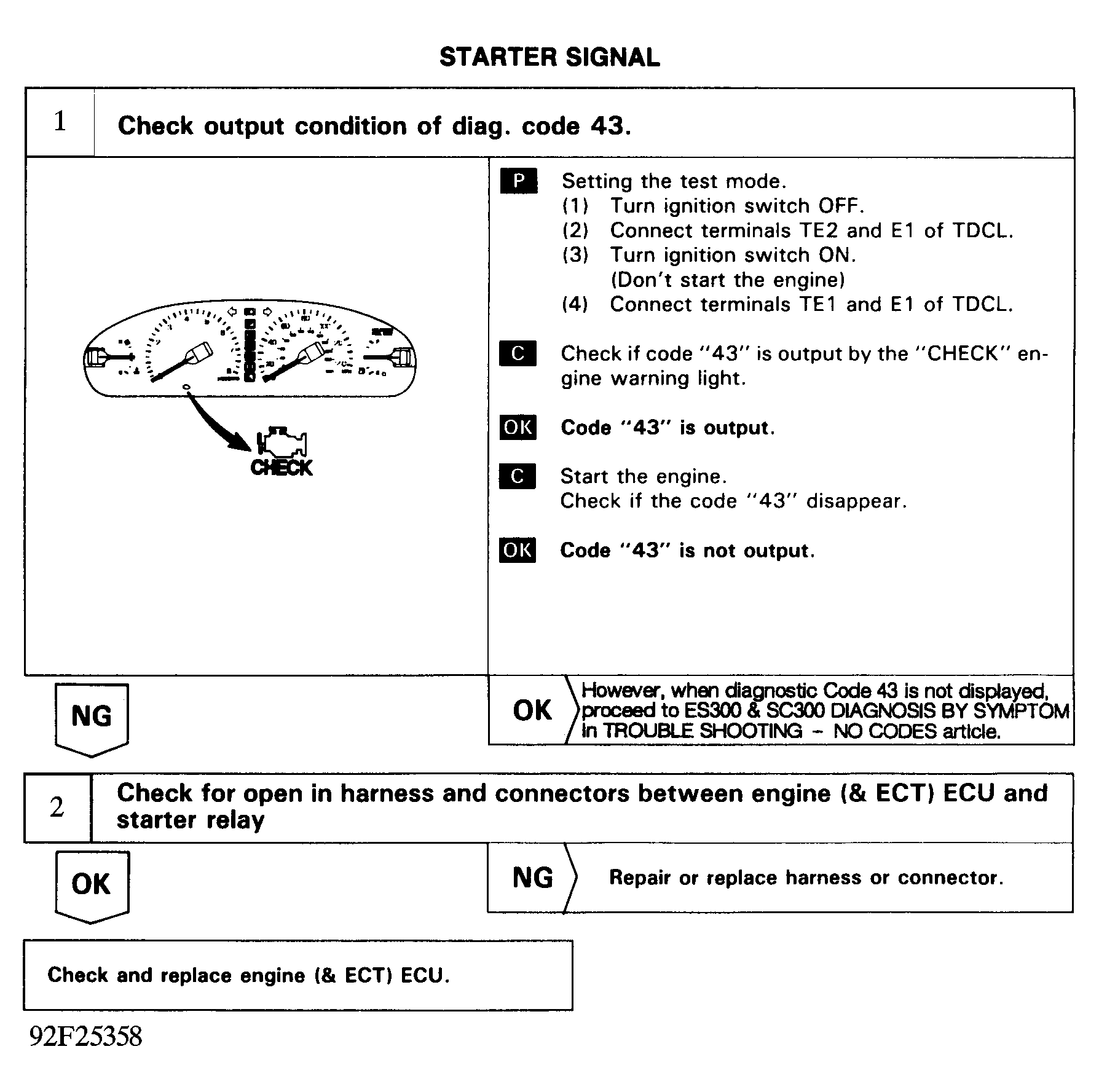

Fig 1: Code 43 Flow Chart - Starter Signal

G92F25358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
