Code 47 - Sub-Throttle Position Sensor (TPS) Signal

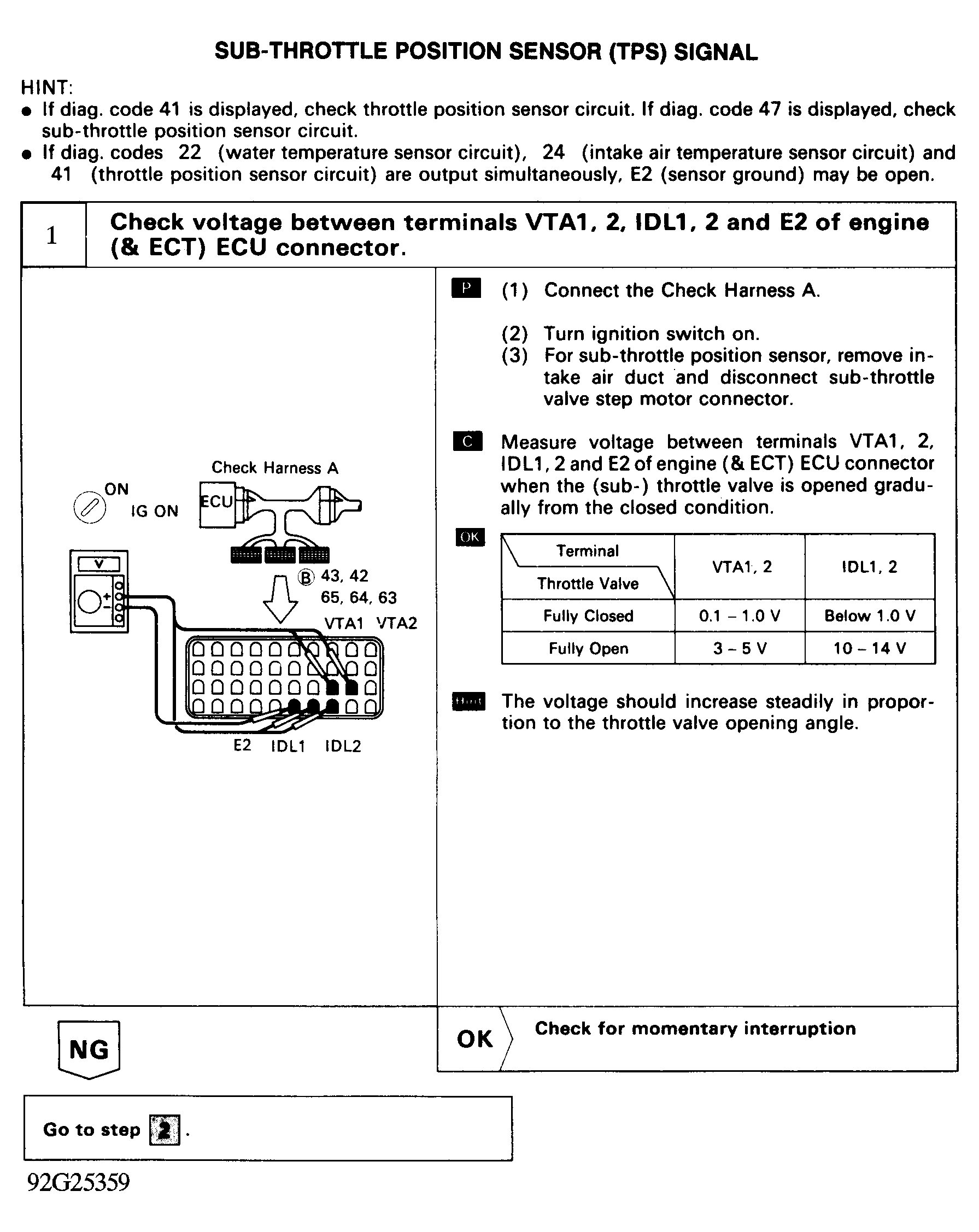

Fig 1: Code 47 Flow Chart (1 of 2) - Sub-TPS Sensor Signal
G92G25359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

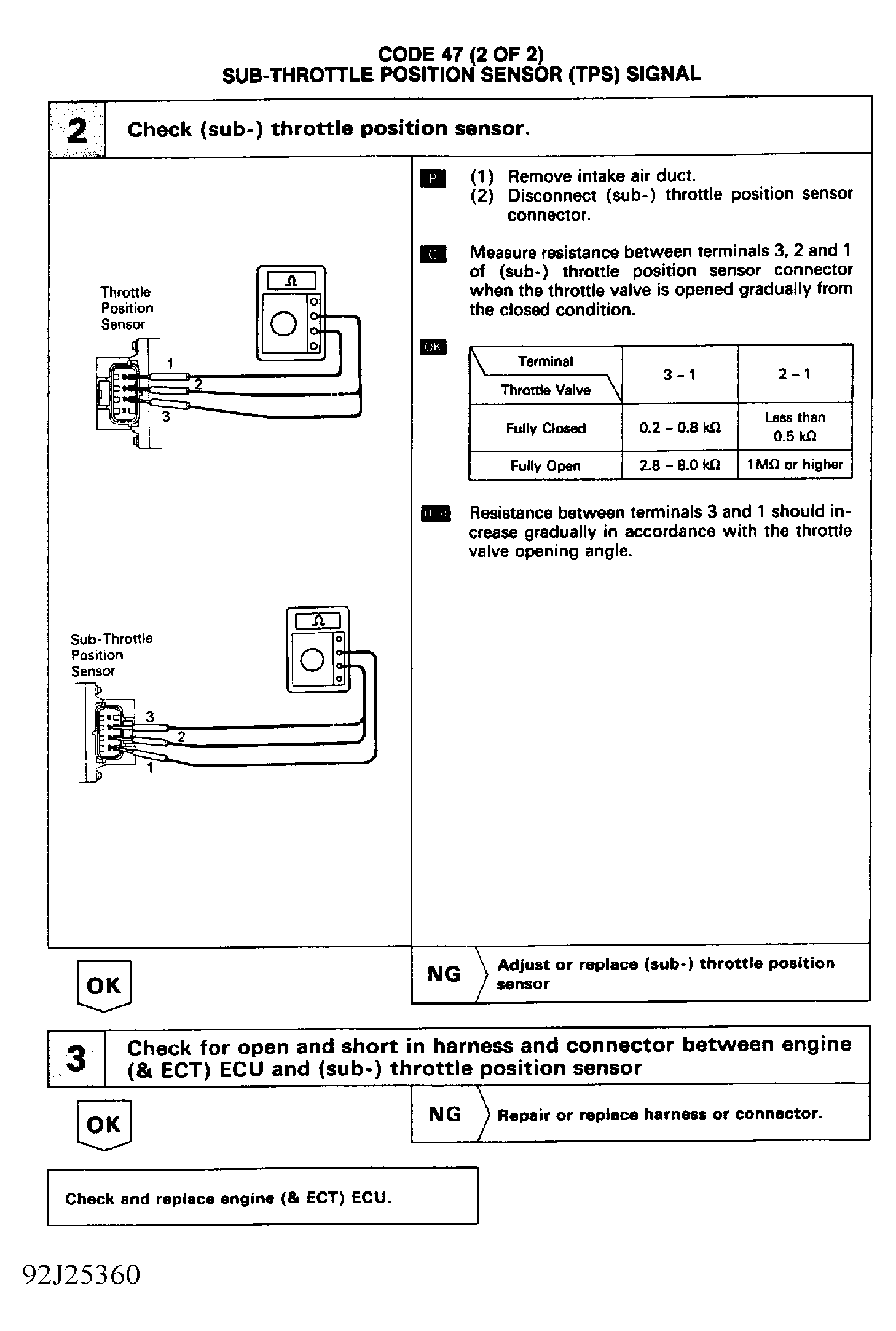

Fig 2: Code 47 Flow Chart (2 of 2) - Sub-TPS Sensor Signal
G92J25360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
